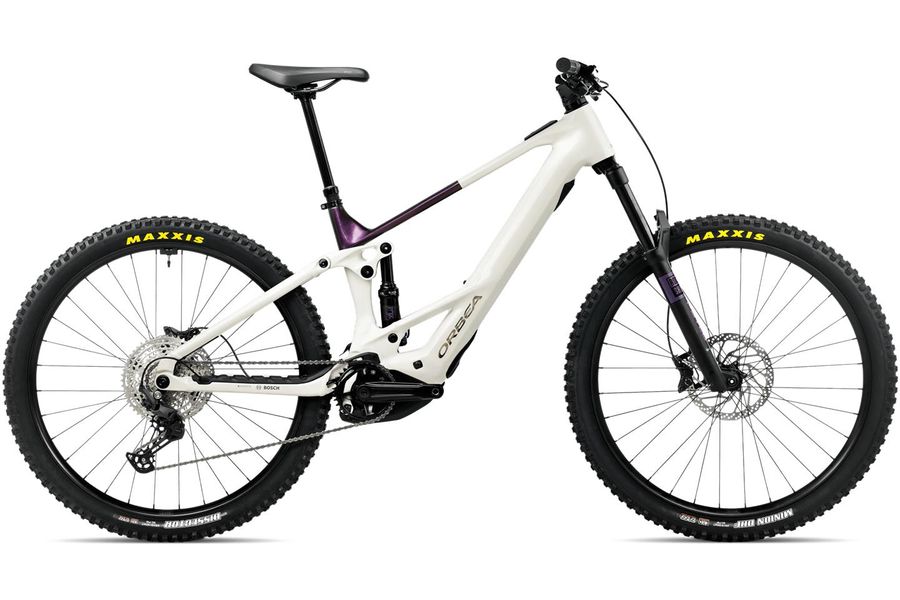

Orbea Wild TR H20

Art.-Nr. 86138
4.999,00 € *
[1]
Größe
Demnächst verfügbar

The Orbea Wild TR H20 takes your trail adventures to the next level. The short-travel version perfectly combines efficiency and versatility – for anyone who wants to ride with confidence even on challenging trails. With a Bosch Performance Line CX motor (up to 120 Nm) and a 750 Wh battery, it offers powerful assistance, whilst the Shimano Deore 1x12-speed drivetrain guarantees precise gear changes.

Highlights

Rahmen

Aluminium

Gabel

RockShox Psylo Silver RC (150mm)

Schaltung

Shimano Deore (1x12)

Bremsen

Shimano MT420

Dämpfer

Fox Float Performance

Motor

Bosch Perf. CX (120Nm) / Bosch PowerTube (750Wh)

Orbea Wild TR H20 – Powerful performance for challenging trails

The Orbea Wild TR H20 is designed for all mountain bike enthusiasts and is the ideal choice for riders looking for powerful assistance and precise control on challenging trails. With the Bosch Performance Line CX motor, which delivers up to 120 Nm of torque, and a high-capacity 750 Wh battery, this e-MTB guarantees sufficient range for long and challenging rides with significant elevation gain.

The Shimano Deore 12-speed drivetrain ensures precise gear changes, whilst the Shimano MT420 4-piston brakes provide powerful braking even on steep descents. The RockShox suspension with 150 mm of travel offers plenty of reserves for challenging trails whilst still maintaining a good balance between uphill and downhill performance. Added to this are the 29-inch wheels and the high-quality high-polish aluminium frame, which round off the overall package by combining stability with an elegant look.

Short Travel – the perfect blend of agility and efficiency

The Orbea Wild TR H20 stands out thanks to its short-travel setup. With 150 mm of travel at both the front and rear, it offers a slightly shorter travel length, making it more agile and efficient. This shorter suspension is specifically optimised for trail performance and is ideal for riders who prefer agile and precise handling on technically demanding trails. This version offers a balanced blend of comfort and direct feedback from the terrain, which is particularly advantageous on flowing trails and longer rides.

Zusatzinformation

Allgemeines
Fahrradtyp E-MTB Fully
Modelljahr 2027
Farbe White Cream - Sunset
Rahmen
Rahmen Orbea Wild Hydro, 29" wheels, Concentric Boost 12x148
Gabel RockShox Psylo Silver RC 15x110 Boost
Dämpfer Fox Float Performance Trunion 2-Pos Evol LV custom tune 205x57.5mm
Steuersatz Alloy 1-1/2", Black Oxidated Bearing
Rahmenform Fully
Antrieb
Schalthebel Shimano Deore M6200 I-Spec EV
Schaltwerk Shimano Deore M6200 SGS Shadow Plus
Kettenführung e*thirteen Bosch CX Gen5 CL55 32-36t
Kurbel Steel 32t, Prowheel EB17 alloy
Kassette Shimano CS-M6200 10-51t 12-Speed
Kette Shimano M6100
E-Bike
Akku Bosch Powertube 750Wh Horizontal BBP3770
E-Motor Bosch Performance Line CX BDU3843
Bedieneinheit Bosch Mini Remote BRC3300
Display Bosch System Controller BRC3100
Ladegerät Bosch Charger 2A (220-240V)
Bremsen
Bremse Shimano MT420 Hydraulic Disc, Shimano SMRT30 Rotors 203mm front / 203mm rear
Laufräder
Laufradsatz WH23, Alloy, Tubeless, 29", 30c, 32H
Reifen vorn Maxxis Minion 2,50" DHF 60TPI Rigid EXO/TR
Reifen hinten Maxxis Dissector 2.40" 60TPI Rigid EXO/TR
Reifengröße 29''
Lenker & Vorbau
Lenker OC Mountain Control MC30, Rise20, Width 800
Vorbau OC Mountain Control MC20, 0º
Griffe OC Lock On
Sattel
Sattel Selle Royal Vivo Sport Men 145 x 269mm
Sattelstütze OC Mountain Control MC22, 31.6mm, Dropper + Shimano SL-MT500 I-Spec EV
Sonstiges
Anpassung - nur in Filiale Anpassen der optimalen Sitzposition entsprechend deiner Anatomie
Konfiguration - nur in Filiale Individuelles Fahrwerks Setup durch geschulte Mitarbeiter
Anmerkung Die Abbildung kann abweichen. Der Hersteller behält es sich vor, bestimmte Komponenten durch qualitativ gleichwertige zu ersetzen.
