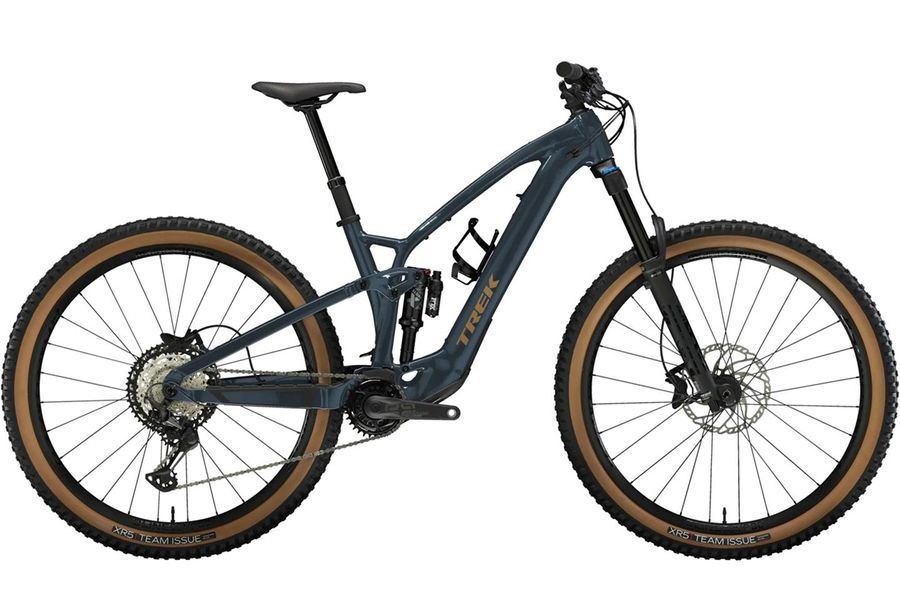

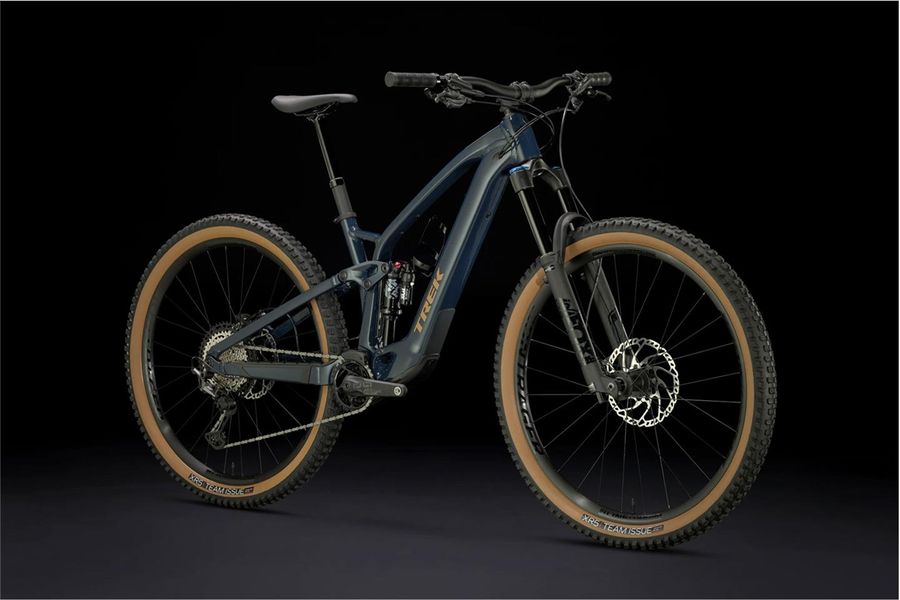

Trek Fuel EXe 8 XT
Highlights
Frame
Alpha Platinum Aluminium
Fork
FOX Rhythm 36 Float EVOL (150mm)
Shifter
Shimano XT (1x12)
Brakes
Shimano Deore M6120 (203/203)
Rear Shock
FOX Performance Float X
Drive Unit
TQ-HPR50 (50Nm) / TQ (360Wh)
Trek Fuel EXe 8 XT - Experience the freedom of the trail.
Dive into a new dimension of mountain biking with the Trek Fuel EXe 8 XT. With this lightweight and sporty e-mountain bike, you can master any challenge and enjoy the ultimate riding experience. The Fox Rhythm 36 Float fork with 150mm travel at the front and the Fox Performance Float X shock with 140mm travel at the rear ensure optimum damping and a smooth ride. Whether technical trails or demanding descents, this bike gives you the control you need.
The Shimano Deore M6120 4-piston disc brakes with 203mm discs front and rear offer you first-class braking power and precise control in all situations. No matter how steep the trail gets, you'll always be in full control of your bike.
Frame details: Robust frame and smooth performance
The Trek Fuel EXe 8 XT not only impresses with its outstanding riding characteristics, but also with its robust frame and well thought-out details. The frame is perfectly adapted to the demands of off-road use and ensures stability and durability.

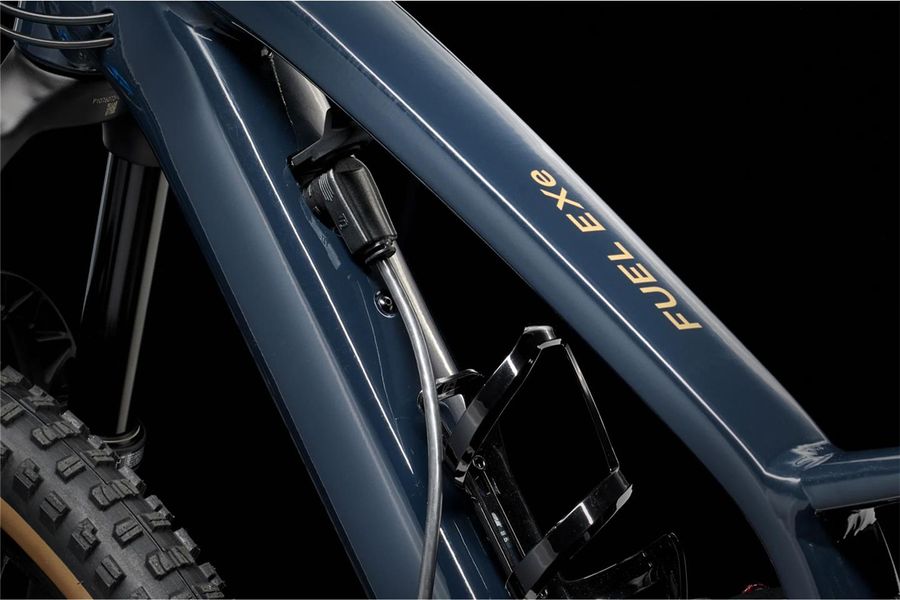

With internally routed cables, not only is the bike's appearance tidied up, but the risk of damage is also minimised. So you can concentrate fully on riding and not worry about loose cables.
Highlights
- Fascinating handling characteristics with Fox Rhythm 36 Float fork and Fox Performance Float X rear shock
- Shimano Deore M6120 4-piston disc brakes for superior stopping power and control
- Robust frame for stability and durability
- Internally routed cables for a tidy look and minimised risk of damage
TQ Range Extender - More range for even more riding fun
We offer the TQ Range Extender in our range to match the Trek Fuel EXe battery with lower power and range. This 160 Wh additional battery extends the range of the Trek Fuel EXe by up to 44%.
The bottle cage included with the Trek Fuel EXe, together with the TQ components such as the strap and the Cable V01, allows you to mount the TQ Range Extender V01 160Wh.
The following additional items are required to use the TQ Range Extender:
- TQ Range Extender V01 160Wh
- TQ Range Extender Cable V01
- TQ Range Extender Retention strap
- Bottle cage (included with the Trek Fuel EXe)
- M4x6mm hexagon socket screws (included with the Trek Fuel EXe)
Additional Information
| General | |
| Bike category | E-MTB Full Suspension |
|---|---|
| Model year | 2024 |
| Colour | Nautical Navy |
| Weight | 20,1 kg |
| Max. total weight | 136 Kg |
| Frame | |

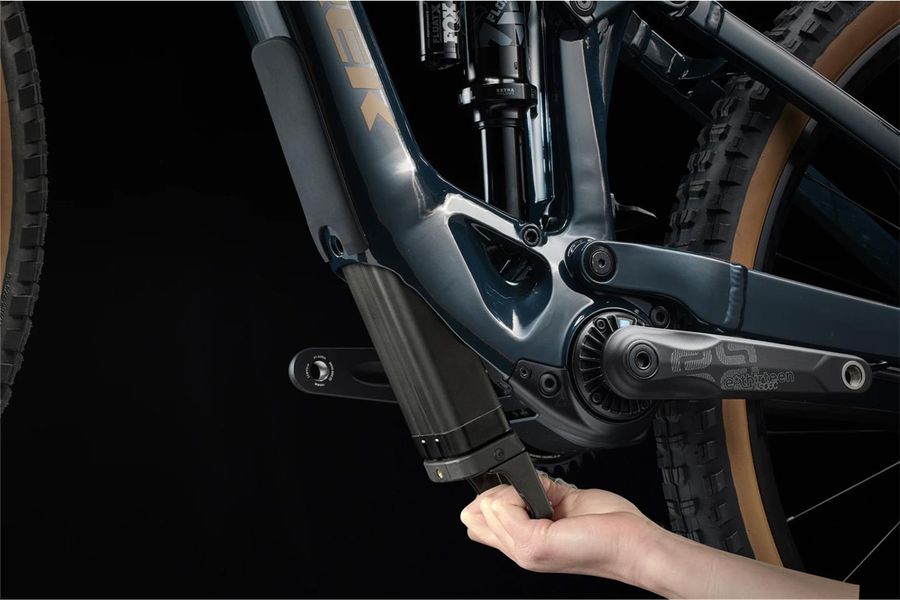

| Frame | Alpha Platinum Aluminium, herausnehmbarer Akku, interne Zugführung, Aluminiumumlenkhebel, 34,9 mm Sitzrohrdurchmesser, Aufnahme für obere Kettenführung, 55 mm Kettenlinie, Mino Link, ABP, Boost148, UDH, 140 mm Federweg |
| Fork | FOX Rhythm 36, Float EVOL-Luftfeder, GRIP-Dämpfer, konischer Gabelschaft, 44 mm Versatz, Boost110, 15 mm Kabolt-Achse, 150 mm Federweg |
| Rear Shocks | FOX Performance Float X, 2-Positionen-Dämpfung, 205 x 60 mm |
| Frame type | Fully |
| Drive | |
| Shifters | Shimano XT M8100, 12fach |
| Rear derailleur | Shimano XT M8100, langer Käfig |
| Crank | e*thirteen e*spec Plus, 165 mm Kurbelarmlänge |
| Chain rings | E*thirteen E*spec, 32 Z. Aluminiumkettenblatt, 55 mm Kettenlinie |
| Cassette | Shimano XT M8100, 10-51 Z., 12fach |
| Chain | Shimano SLX M7100, 12fach |
| Ebike | |
| Battery pack | TQ 360 Wh |
| E-Engine | TQ HPR50, 50 Nm, 250 W max. Nenndauerleistung, 300 W Maximalleistung |

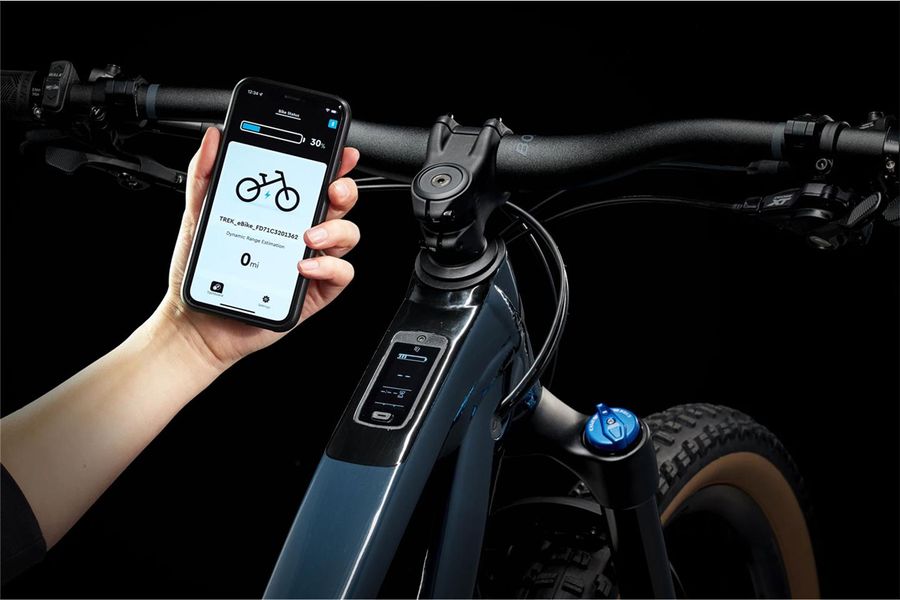

| Display | TQ LED-Display mit Bluetooth- & ANT+-Konnektivität |
| Charger | TQ Ladegerät, 4 A |
| Brakes | |
| Brake | Hydraulische 4-Kolben-Scheibenbremse von Shimano, M6100 Bremshebel, M6120 Bremssattel |
| Wheels | |
| Rims | Bontrager Line Comp 30, Tubeless Ready, 28-Loch, Presta-Ventil |
| Tires | Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength-Karkasse, Aramidwulstkern, 60 TPI, 29 x 2.50 |
| Wheel Size | 29'' |
| Front hub | Bontrager, Aluminium, gedichtetes Lager, Aluminiumachse, 6-Loch-Scheibenaufnahme, Boost110, 15-mm-Steckachse |
| Rear hub | Bontrager, Aluminium, gedichtetes Lager, 6-Loch-Scheibenaufnahme, Rapid Drive 108, Shimano MicroSpline-Freilaufnabe, Boost148, 12 mm Steckachse |
| Cockpit | |
| Handlebar | Bontrager Line, Aluminium, 35 mm, 27,5 mm Rise, 780 mm Breite |
| Stem | Bontrager Elite, 35 mm, 0 Grad, 45 mm Länge |
| Grips | Bontrager XR Trail Elite, Nylonklemme |
| Seat | |
| Saddle | Bontrager Arvada, Streben aus CrMo-Rohr, 138 mm Breite |
| Seatpost | TranzX JD-YSP39, interne Zugführung, 34,9 mm |
| Other | |
| Customization - only in store | |
| Configuration - available in our stores | |
| Annotation | Illustrations and specifications may vary. The manufacturer reserves the right to replace certain components with components of similar quality. |
| Manufacturer Information | |
| Manufacturer Information | Trek Bicycle GmbH |
