Carbon
FOX Rhythm 36, Float EVOL ODER RockShox Lyrik Select+ (150mm)
Shimano XT/SLX (1x12)
Shimano M6100 (203/203)
FOX Performance Float X ODER RockShox Super Deluxe Select+ RT
TQ-HPR50 (50Nm) / TQ (360Wh)

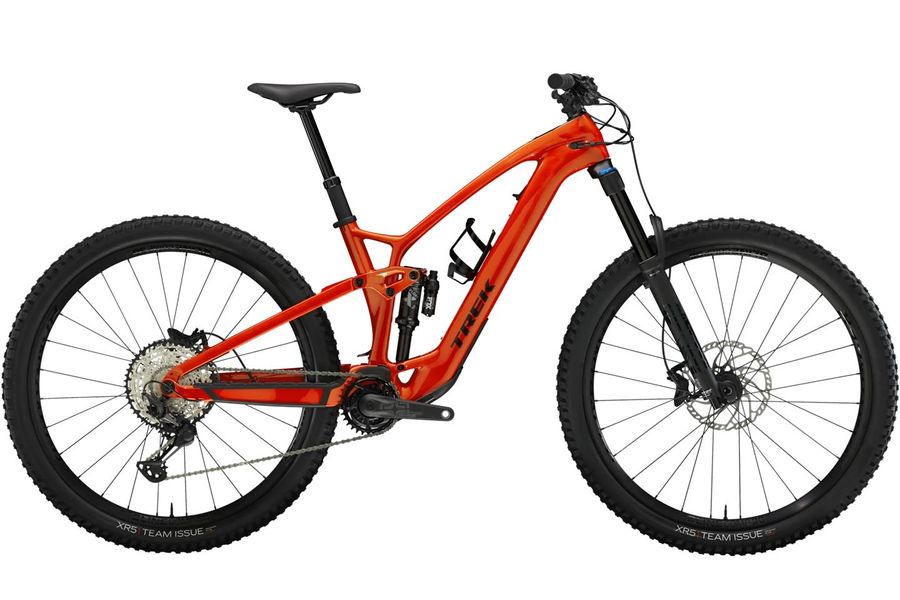

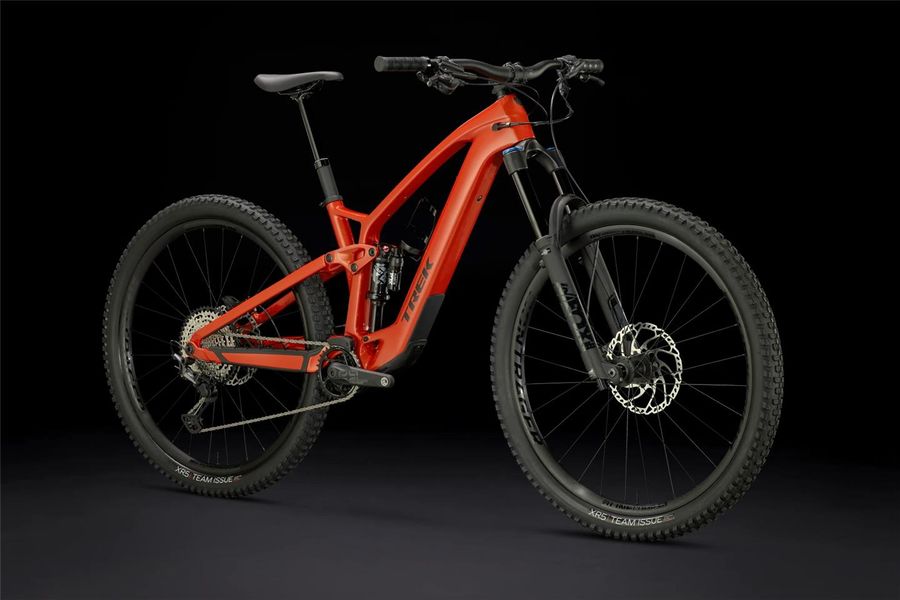

With its revolutionary motor cleverly integrated into the frame, the Fuel EXe 9.7 redefines e-mountainbikes. This lightweight, agile bike is not only as playful as a non-supported mountain bike, but also masters longer climbs with ease thanks to the efficient drive support. With its revised suspension package and the selected component mix, crisp gear changes and precise manoeuvres on the trail are easy. This high-quality equipment paired with a lightweight carbon chassis guarantees a bike with high dynamics and stiffness as well as the optimum level of vibration damping, even when things get a little rougher on the trail.
Bike category | E-MTB Full Suspension |
---|---|
Brand | Trek |
Model year | 2024 |
Colour | Lava |
Weight | 19,3 kg |
Customization - only in store | |
Configuration - available in our stores | |
Frame | OCLV Mountain Carbon, herausnehmbarer Akku, interne Zugführung, Aluminiumumlenkhebel, 34,9 mm Sitzrohrdurchmesser, Aufnahme für obere Kettenführung, 55 mm Kettenlinie, Mino Link, ABP, Boost148, UDH, 140 mm Federweg |
Frame type | Fully |
Fork | FOX Rhythm 36, Float EVOL-Luftfeder, GRIP-Dämpfer, konischer Gabelschaft, 44 mm Versatz, Boost110, 15 mm Kabolt-Achse, 150 mm Federweg ODER RockShox Lyrik Select+, DebonAir Feder, Charger 2.1 RC Dämpfung, konischer Gabelschaft, 44 mm Vorbiegung, Boost110, |

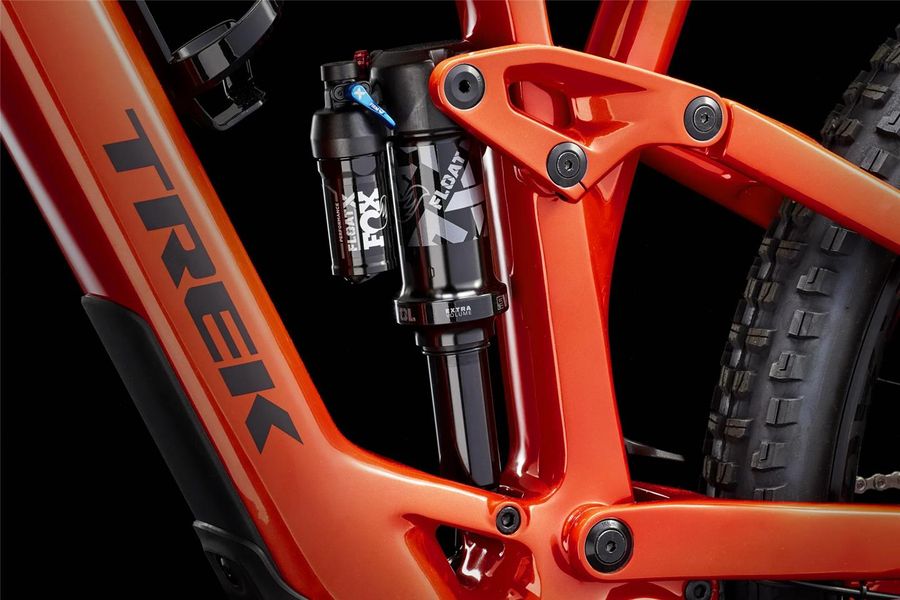

Rear Shocks | FOX Performance Float X, 2-Positionen-Dämpfung, 205 x 60 mm ODER RockShox Super Deluxe Select+ RT, 205 x 60 mm |
Wheel Size | 29'' |
Tires | Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength-Karkasse, Aramidwulstkern, 60 TPI, 29 x 2.50 |
Wheel set | Bontrager Line Comp 30, Tubeless Ready |
Rear derailleur | Shimano XT M8100, langer Käfig |
Shifters | Shimano SLX M7100, 12fach |
Crank | e*thirteen e*spec Plus, 165 mm Kurbelarmlänge |
Chain rings | E*thirteen E*spec, 32 Z. Aluminiumkettenblatt, 55 mm Kettenlinie |
Cassette | Shimano SLX M7100, 10-51 Zähne, 12-fach |
Chain | Shimano SLX M7100, 12fach |
Front hub | Bontrager Line Comp 30, Tubeless Ready, 6-Loch-Scheibenaufnahme, Boost110, 15 mm Steckachse, 29" |
Rear hub | Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-Loch-Scheibenaufnahme, Boost148, 12 mm Steckachse, 29" ODER Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-Loch-Scheibenaufnahme, Boost148, 12 mm Steckachse |
Brake | Shimano RT66, 6-Loch-Scheibenaufnahme, 203 mm |
Brake lever | Shimano M6100 |
Brake caliper | Shimano M6120 |

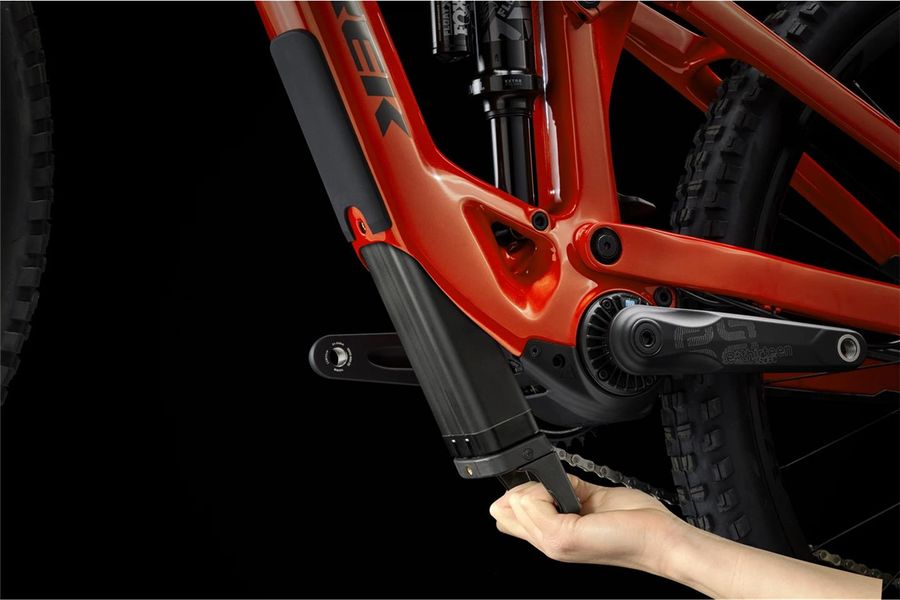

Battery pack | TQ 360 Wh |
Charger | TQ Ladegerät, 4 A |
Handlebar | Bontrager Line, Aluminium, 35 mm, 27,5 mm Rise, 780 mm Breite ODER Bontrager Line Pro, OCLV Carbon, 35 mm, 27,5 mm Rise, 780 mm Breite |
Grips | Bontrager XR Trail Elite, Nylonklemme |
Stem | Bontrager Elite, 35 mm, 0 Grad, 45 mm Länge |
Saddle | Bontrager Arvada, Streben aus CrMo-Rohr, 138 mm Breite ODER Bontrager Verse P3, CrMo-Streben |
Seatpost | TranzX JD-YSP39, interne Zugführung, 34,9 mm ODER Bontrager Line Dropper, MaxFlow, interne Zugführung, 34,9 mm |
Max. total weight | 136 kg |
Annotation | The illustration may differ. The manufacturer reserves the right to replace certain components with components of equivalent quality. |
Manufacturer Information | Trek Bicycle GmbH |
