CUBE Aim SL Allroad (2022)

Item no. 53143
849.00 € *
[1]
Size

Tackle the urban jungle just as easily as forested mountain trails, thanks to the included luggage carrier, kickstand and an integrated lighting system. The Shimano 18-speed gear system's huge range and slick shifting will get you up any climb with ease.

Highlights

Lighting

CUBE Shiny 50

Frame

Aluminium Lite

Fork

Suntour XCM 30 100mm Coil (100mm)

Tires

Schwalbe Smart Sam Active (2.25)

Shifter

Shimano (2x9)

Brakes

Shimano BR-MT200/UR300 (160/160)

CUBE Aim SL Allroad grey'n'black

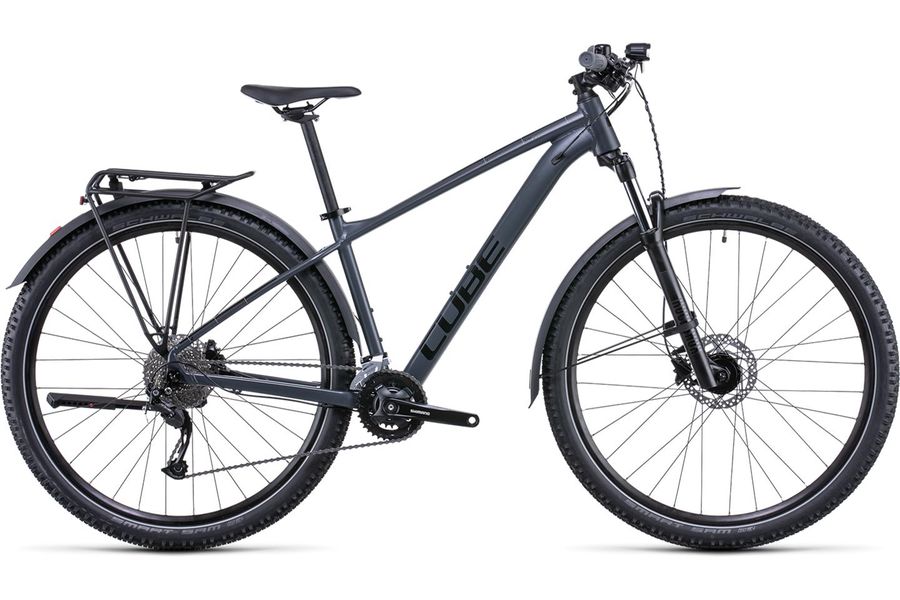

Mountain bikes remove barriers. In that spirit, we made our new Aim SL Allroad as versatile as we possibly could. Mudguards, a lighting system, kickstand and versatile luggage carrier give you the tools you need to tackle the weekday commute or a dash across town. Meanwhile the Suntour suspension fork, Shimano 2x9 gears, hydraulic disc brakes and grippy 2.25in tyres are all you need to keep riding when the asphalt ends. And our SizeSplit system means there's a perfectly proportioned Aim SL Allroad for every rider. Who said you can't have your cake and eat it?

Frame

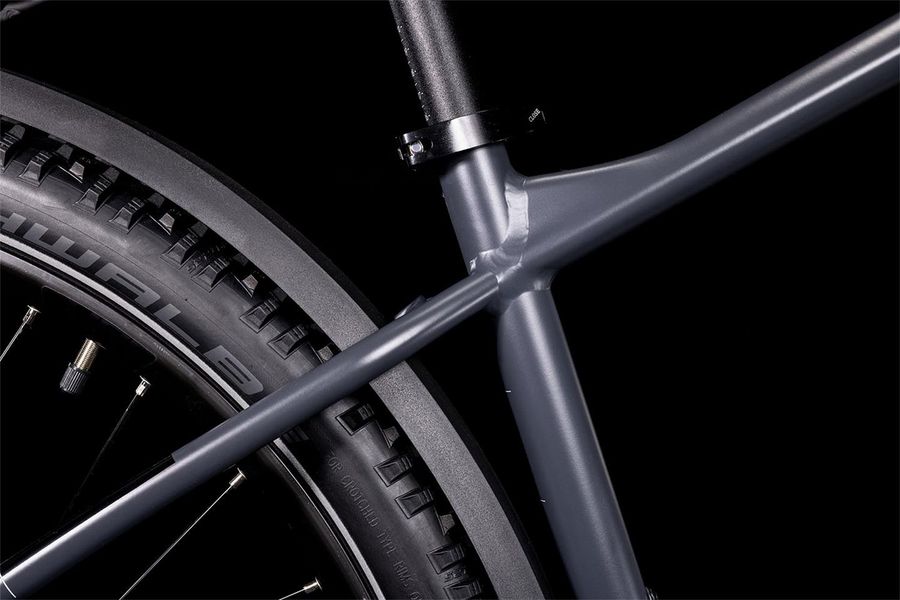

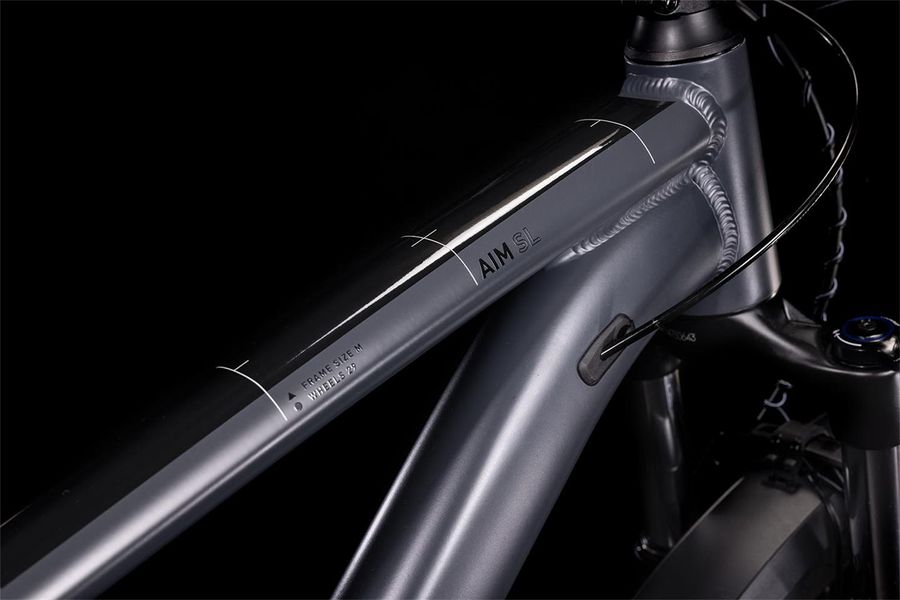

Completely revised for 2022, the brand-new Aim Allroad redefines versatility. With its included full-length mudguards, luggage carrier and lighting system, it has everything you need right out of the box. There's a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance, and the flat disc mount integrates seamlessly with the included kickstand. Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our SizeSplit system has an expanded range too, so however tall you are there'll be an Aim Allroad that fits perfectly.

More CUBE Aim series:

Additional Information

General
Bike category Hardtail MTB
Colour grey'n'black
Weight 16,1 kg
Frame
Frame Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Fork Suntour XCM 30 100mm Coil (100mm)
Headset CUBE FPH868, Top 1 1/8", Bottom 1 1/2", Semi-Integrated
Frame type Diamond
Drive
Shifters Shimano SL-M2010-9R, Rapidfire-Plus
Rear derailleur Shimano RD-M3100-SGS, 9-Speed
Front derailleur Shimano FD-M2020, Top Swing, 31.8mm Clamp
Crank Shimano FC-MT101, 36x22T
Cassette Shimano CS-HG201, 11-36T
Chain KMC X9
Brakes
Brake Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/160)
Wheels
Rims CUBE ZX20, 32H, Disc
Tires Schwalbe Smart Sam, Active, 2.25
Wheel Size 27,5'', 29''
Front hub Shimano DH-3D32, Hub Dynamo, QR
Rear hub Shimano HB-TX506, QR, 6-Bolt
Cockpit
Handlebar CUBE Rise Trail Bar, 680mm
Stem CUBE Performance Stem Pro, 31.8mm
Grips ACID React
Seat
Saddle Natural Fit Venec Lite
Seatpost CUBE Performance Post, 27.2mm
Saddle clamp CUBE Varioclose, 31.8mm
Light
Headlight CUBE Shiny 50
Back light ACID Mudguard Rear Light PRO-D, 6V, AC
Acessory
Mudguards ACID 65

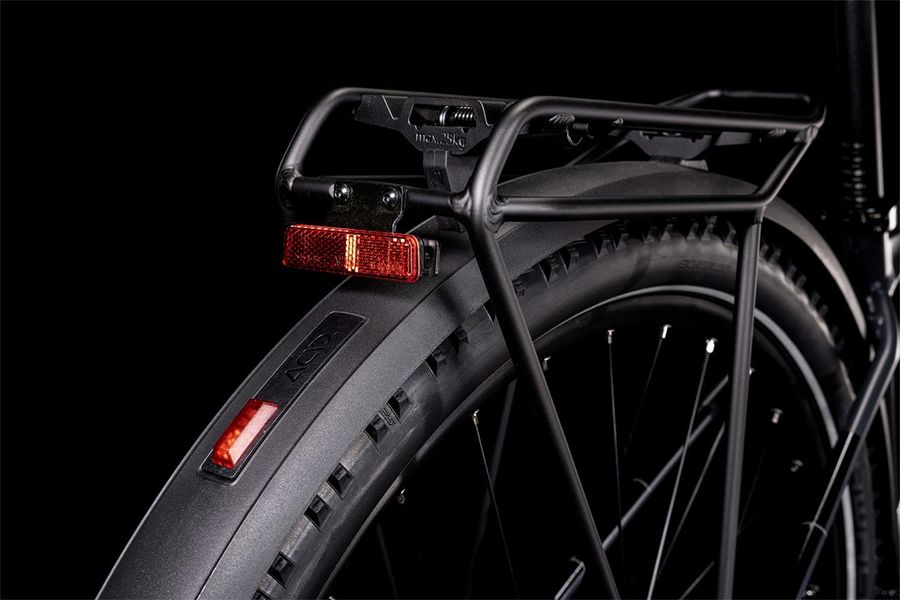

Rack ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible and Rail

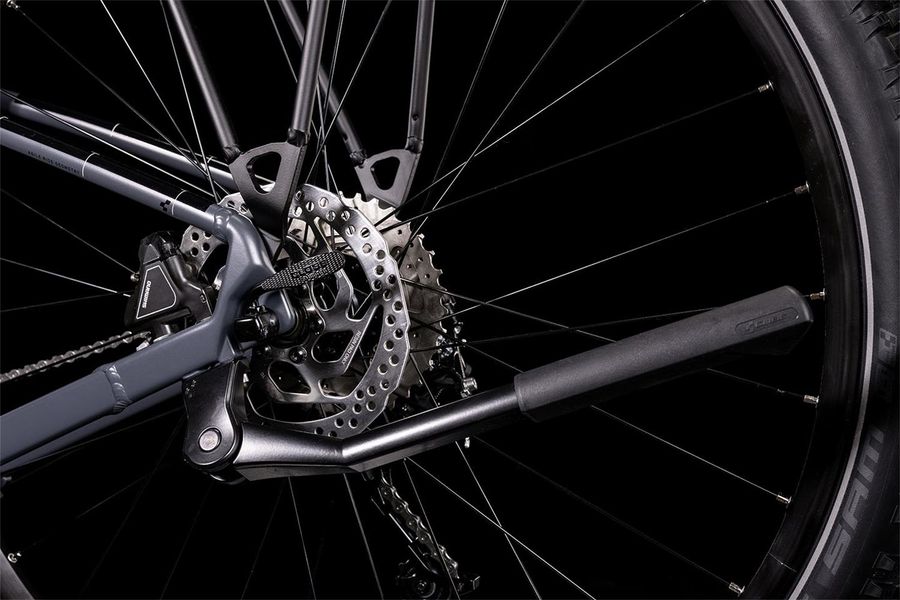

Bike stand ACID Pro Flat Mount Kickstand
Other
Customization - only in store Anpassen der optimalen Sitzposition entsprechend deiner Anatomie
Configuration - available in our stores Individuelles Fahrwerks Setup durch geschulte Mitarbeiter
Annotation Illustrations and specifications may vary. The manufacturer reserves the right to replace certain components with components of similar quality.
