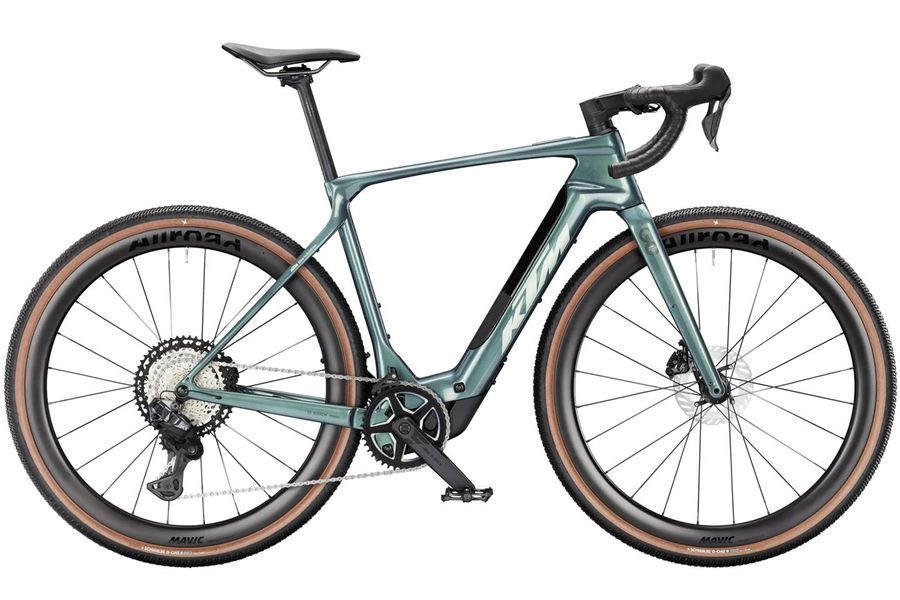

KTM Macina Gravelator SX Prime Di2
The KTM Macina Gravelator SX Prime Di2 2026 stands at the pinnacle of e-gravel innovation. Featuring an ultra-light carbon frame, electronic Shimano Deore XT Di2 (1×12) drivetrain, Mavic Allroad S Carbon wheelset, and the smooth Bosch Performance SX motor (55Nm) paired with a 400Wh CompactTube battery, it delivers unmatched precision, efficiency, and agility. Complete with top-tier components—including premium brakes and Schwalbe G-One R Pro tires—it’s engineered for high-speed racing and elite gravel adventures.
Highlights
Frame
Carbon
Fork
Carbon
Tires
Schwalbe G-One R PRO, 45-622
Shifter
Shimano Deore XT DI2 (1x12)
Brakes
Shimano MT800 (160/160)
Drive Unit
Bosch Perf. SX (55Nm) / CompactTube (400Wh)
Additional Information
| General | |
| Bike category | Road E-Bike |
|---|---|
| Model year | 2026 |
| Colour | Royal Teal (Silver+Black) |
| Weight | 14,6 kg |
| Fahrraddetails | |
| Price | Price in branch store might be lower. (info@rabe-bike.de / +4989 125 01 01 01) |
| Frame | |
| Frame | Macina Gravelator Prem.Carbon UDH|CPT400 Bosch BDU31/R4310 |
| Fork | X-Strada Gravel Perf. Carbon w/mount F16 |
| Headset | Acros AICR intern 1.1/8"-1.5" angle lim |
| Frame type | Diamond |
| Drive | |
| Shifters | Shimano GRX RX825 / RX820 2-Piston |
| Rear derailleur | Shimano Deore XT Di2 M8260-12 SGS shad+ |
| Crank | KTM E-RACE ISIS 170mm Q2 |
| Chain rings | KTM Aluminium 42T Direct Mount |
| Cassette | Shimano Deore XT M8100-12 / 10-51 |
| Chain | Shimano M8100-12 |
| Ebike | |
| Battery pack | Bosch CompactTUBE 400Wh |
| E-Engine | Bosch PERFORMANCE SX BDU3144 |
| Charger | Bosch STANDARD Charger 4A |
| Brakes | |
| Brake | Shimano MT800 CL 160 freeza, Shimano MT800 CL 160 freeza |
| Brake lever | Shimano GRX BL-RX825/RX820 2-Piston |
| Wheels | |
| Wheel set | Mavic Allroad S Carbon 28 CL 100/12|622x25TSS, 142/12|622x30TSS MS |
| Tires | Schwalbe G-One R PRO 45-622 |
| Wheel Size | 28'' |
| Cockpit | |
| Handlebar | KTM TEAM Gravel 16° |
| Stem | KTM TEAM Road -7° ICR |
| Grips | KTM tape |
| Seat | |
| Saddle | Fizik Terra Argo X3 |
| Seatpost | KTM TEAM II 27.2/350 |
| Saddle clamp | KTM seatclamp R43X0 |
| Other | |
| Customization - only in store | |
| Annotation | The illustration may differ. The manufacturer reserves the right to replace certain components with components of equivalent quality. |
| Manufacturer Information | |
| Manufacturer Information | KTM Fahrrad GmbH |
