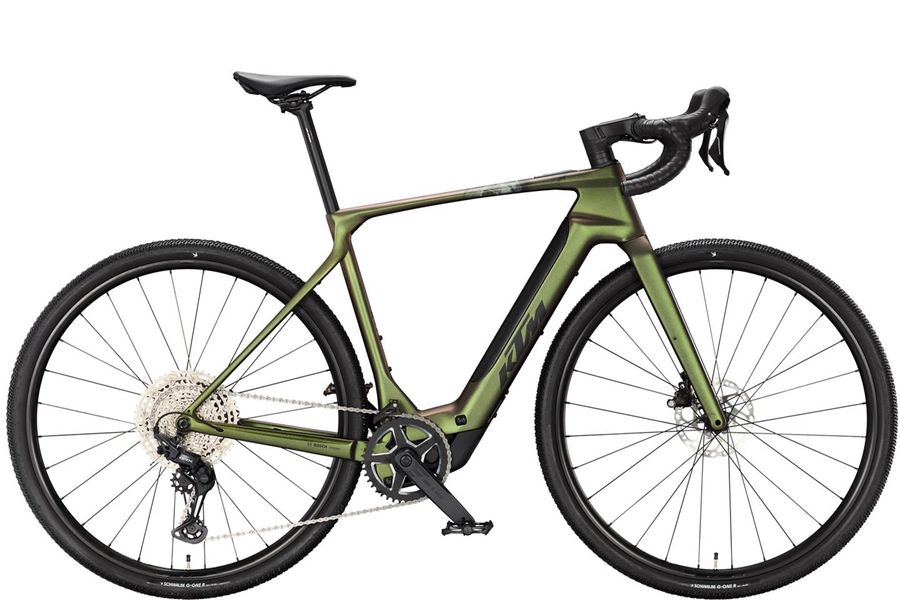

KTM Macina Gravelator SX Elite
Light e-gravel meets pure adventure: the KTM Macina Gravelator SX Elite combines a premium carbon frame with the dynamic Bosch Performance Line SX motor and a removable 400 Wh battery. Shimano GRX 1x12 shifting and 45 mm Schwalbe G-One R tires deliver fast, agile performance on tarmac, endless gravel roads and steep climbs.
Highlights
Frame
Carbon
Fork
Carbon
Tires
Schwalbe G-One R, 45-622
Shifter
Shimano GRX (1x12)
Brakes
Shimano (160/160)
Drive Unit
Bosch Perf. SX (60Nm) / CompactTube (400Wh)
Additional Information
| General | |
| Bike category | Road E-Bike |
|---|---|
| Model year | 2027 |
| Colour | Kiwi Matt (Black+Silver) |
| Weight | 14,9 kg |
| Max. total weight | 115 kg |
| Frame | |
| Frame | Macina Gravelator Prem.Carbon UDH|CPT400 Bosch BDU31/R4310 |
| Fork | Gravelator Perf. Carbon w/mount F16 |
| Headset | Acros AICR intern 1.1/8"-1.5" angle lim |
| Frame type | Diamond |
| Drive | |
| Shift / brake unit | Shimano GRX RX610/RX410 |
| Rear derailleur | Shimano GRX RX822-12 SGS shadow+ |
| Crank | KTM E-RACE ISIS 170mm Q2, KTM Aluminium 42T Direct Mount |
| Cassette | Shimano DEORE M6200-12 / 10-51 |
| Chain | Shimano DEORE M6100-12 |
| Ebike | |
| Battery pack | Bosch CompactTUBE 400Wh |
| E-Engine | Bosch PERFORMANCE SX BDU3144 |
| Charger | Bosch COMPACT Charger 2A |
| Brakes | |
| Brake | Shimano RT64 CL (160/160) |
| Wheels | |
| Wheel set | KTM Pro Gravel CL 100/12TA|622x25TC TLR by Ibex, KTM Pro Gravel CL 142/12TA|622x25TC MS TLR by Ibex |
| Front tire | Schwalbe G-One R Eco 45-622 |
| Rear tire | Schwalbe G-One R Eco 45-622 |
| Wheel Size | 28'' |
| Cockpit | |
| Handlebar | KTM TEAM II Gravel 20° |
| Stem | KTM TEAM Road ICR -7° |
| Grips | KTM tape |
| Seat | |
| Saddle | KTM TEAM GRAVEL Cr-Mo Rails |
| Seatpost | KTM TEAM II 27.2/350 |
| Saddle clamp | KTM seatclamp R43X0 |
| Other | |
| Customization - only in store | |
| Annotation | The illustration may differ. The manufacturer reserves the right to replace certain components with components of equivalent quality. |
| Manufacturer Information | |
| Manufacturer Information | KTM Fahrrad GmbH |
| Product Safety Documents | |
