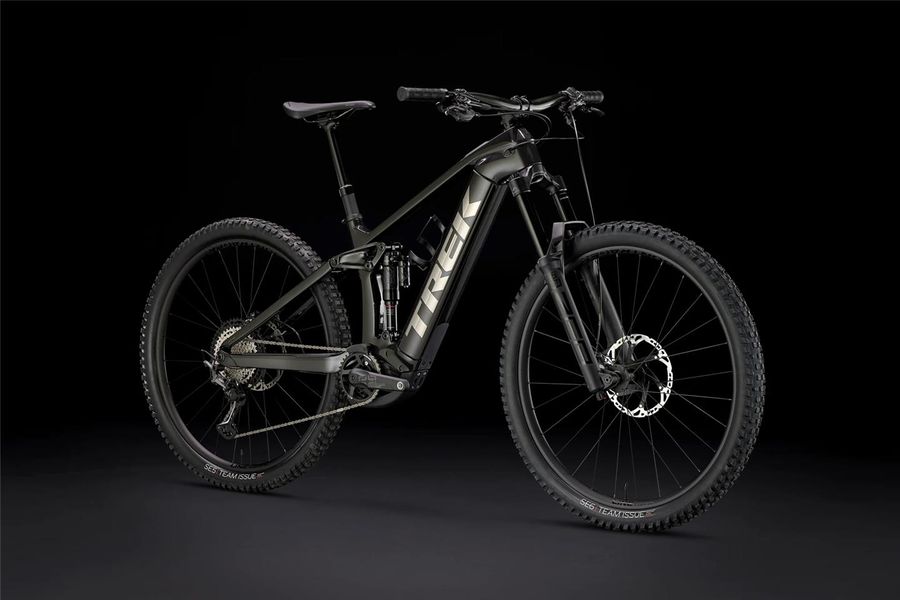

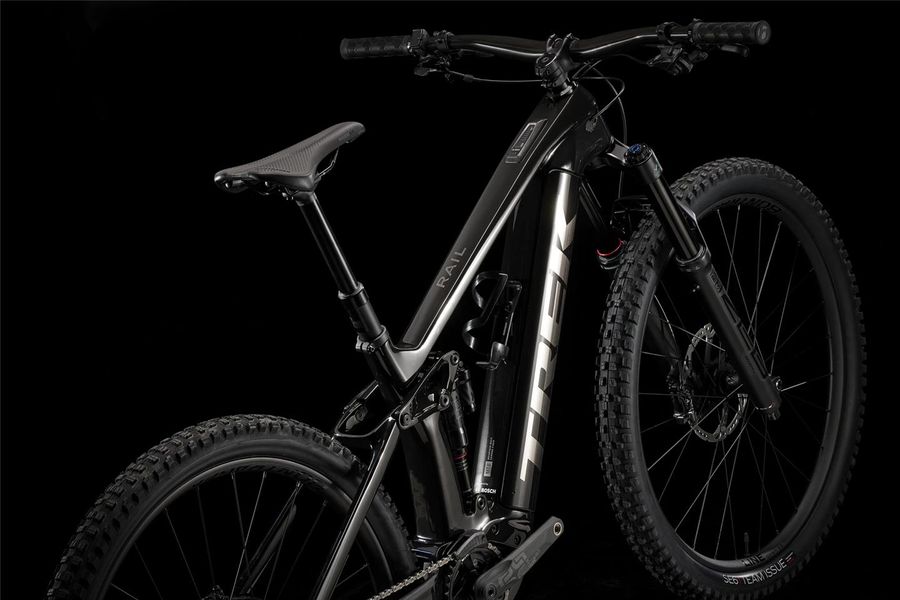

Trek Rail 9.8 XT Gen 4

Item no. 76159
7,999.00 € *
[1]
Size
This bike comes from the factory with a wealth of upgrades that make it an extremely powerful trail grenade - especially thanks to the suspension package. With its heavy-duty parts, it is built to chase down tough descents without compromise and fly right back up the mountain with the help of the powerful Bosch motor and 750 Wh battery.

Highlights

Frame

Carbon

Fork

RockShox ZEB Select+ (160mm)

Shifter

Shimano XT (1x12)

Brakes

Shimano XT (203/203)

Rear Shock

RockShox Super Deluxe Select+ RT

Drive Unit

Bosch Perf. CX (85Nm) / PowerTube (750 Wh)

Trek Rail 9.8 XT Gen 4

The Rail 9.8 is a long-travel, carbon-framed e-mountain bike that delivers the unrivalled performance of our burliest trail bikes, with a drive-assist system that makes it easy to climb any mountain with incredible momentum. Everything about this bike is an upgrade, including the frame for maximum fun on the roughest runs. You also get Bosch's smart Performance Line CX system with a more powerful 750 Wh battery and cool features like activity tracking, navigation and Bluetooth connectivity. The new system controller is almost flush with the top tube for a sleek look and the Mini Remote is as discreet as it is intuitive.

Highlights

  • The Rail with 4th generation carbon frame comes with the enduro-inspired geometry and the long-lasting battery of the previous generation, but is compatible with Bosch's integrated System Controller and Mini Remote thanks to a new mount in the top tube.
  • The System Controller displays the currently selected support level and the remaining battery capacity. It is beautifully integrated into the top tube for maximum protection and an elegant look.
  • Bosch's Smart System impresses with high performance and responsiveness and comes with a new discreet Mini Remote, which allows you to select the support levels and activate the push mode with its reduced, elegant controls.
  • The intelligent eMTB and eMTB Lite modes automatically adapt the support to your power output to give you exactly the right boost for your ride.

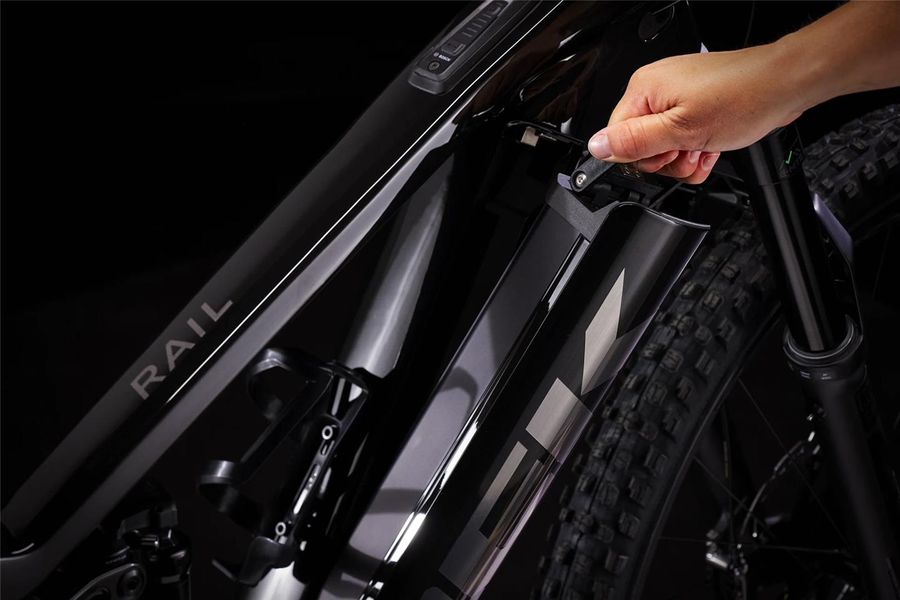

  • The new frame is extremely stable - with a 34.9 mm seat tube to accommodate more robust dropper posts and an oversized head tube for burly suspension forks optimised for e-mountainbikes.

Additional Information

Bike category E-MTB Full Suspension
Brand Trek
Model year 2024
Colour Deep Smoke
Weight 23,7 kg
Customization - only in store
Configuration - available in our stores
Frame Hauptrahmen aus OCLV Mountain Carbon, 1,8" niedrigeres Oberrohr, kompatibel mit Bosch System Controller, Removable Integrated Battery (RIB), Knock Block 2.0, geführte interne Zugverlegung, 34,9 mm Sitzrohrdurchmesser, Magnesiumumlenkhebel, Motor Armor, Mi
Frame type Fully
Fork RockShox ZEB Select+, DebonAir Feder, Charger 3 RC2-Dämpfung, konischer 1,8" Oversized-Gabelschaft, für E-MTB optimierte Gabelkrone, 44 mm Vorbiegung, Boost110, 15 mm Maxle Stealth Achse, 160 mm Federweg
Rear Shocks RockShox Super Deluxe Select+ RT, 230 x 57,5 mm
Wheel Size 29''
Wheel set Bontrager Line Comp 30, Tubeless Ready, 6-Loch-Scheibenaufnahme

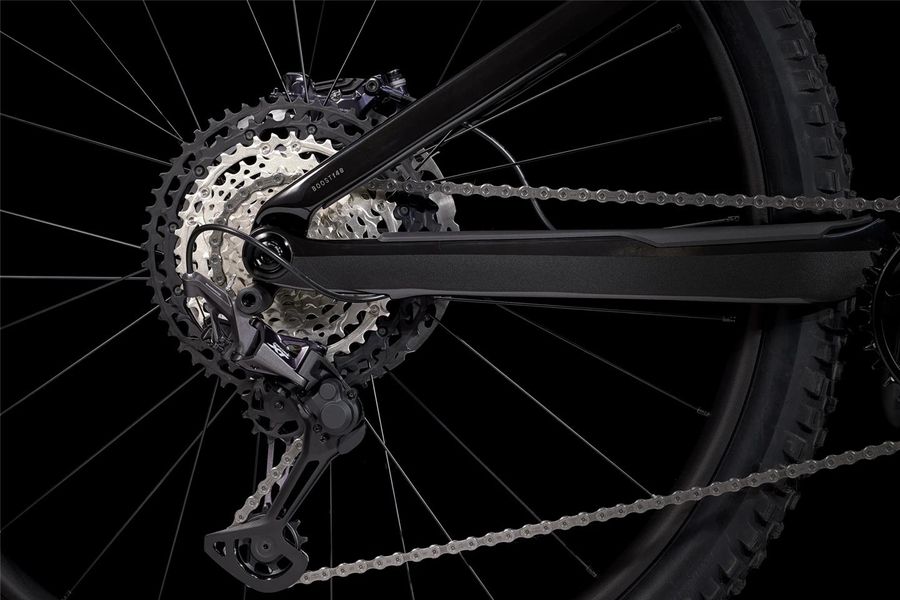

Rear derailleur Shimano XT M8100, langer Käfig
Shifters Shimano XT M8100, 12fach
Crank e*thirteen e*spec Plus, 165 mm Kurbelarmlänge
Chain rings E*thirteen E*spec, 34 Z. Aluminium, 55 mm Kettenlinie
Cassette Shimano XT M8100, 10-51 Z., 12fach
Chain Shimano XT M8100, 12fach
Front hub Boost110, 15 mm Steckachse
Rear hub Boost148, 12 mm Steckachse
Brake Shimano XT M8120, hydraulische 4-Kolben-Scheibenbremse, Shimano RT76, 6-Loch-Scheibenaufnahme, 203 mm

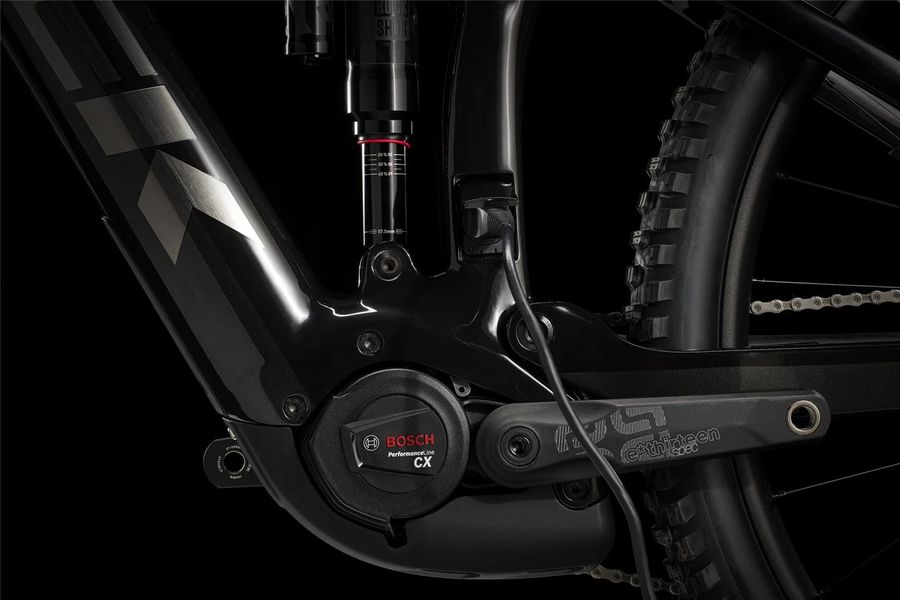

E-Engine Bosch Performance Line CX, Smart System, Motorgehäuse aus Magnesium, 85 Nm
Battery pack Bosch PowerTube 750 Wh, Smart System
Remote Bosch System-Controller BRC3100, Smart System
Charger Bosch Standardladegerät 4 A, 230 V, Smart System
Handlebar Bontrager Line Pro, OCLV Carbon, 35 mm, 27,5 mm Rise, 780 mm Breite
Grips Bontrager XR Trail Elite, Nylonklemme
Saddle Bontrager Arvada, Austenitstreben, 138 mm Breite
Seatpost Bontrager Line Elite Dropper, MaxFlow, interne Zugführung, 34,9 mm
Max. total weight 136 kg
