Highlights
Frame
Aluminium
Fork
RockShox Domain RC DebonAir (160mm)
Shifter
Shimano XT / SLX (1x12)
Brakes
SRAM Code R (200/200)
Rear Shock
RockShox Deluxe Select+ RT
Drive Unit
Bosch Perf. CX Gen4 (85 Nm) - PowerTube (625 Wh)
Additional Information
| Bike category | E-MTB Full Suspension |
|---|---|
| Brand | Trek |
| Model year | 2023 |
| Colour | Dark Prismatic |
| Customization - only in store | |
| Configuration - available in our stores | |
| Wheel Size | 29'' |
| Annotation | Illustrations and specifications may vary. The manufacturer reserves the right to replace certain components with components of similar quality. |
| Frame | Alpha Platinum Aluminium, herausnehmbarer integrierter Akku (RIB), konisches Steuerrohr, interne Control Freak-Zugführung, Magnesiumumlenkhebel, Motor Armor, Mino Link, ABP, Boost148, 12-mm-Steckachse, 150 mm Federweg, (gebogenes Oberrohr size S) |
| Fork | RockShox Domain RC, DebonAir, Motion Control-Dämpfung, Lockout, konischer Gabelschaft, 44 mm Vorbiegung, Oversized-Gabelkrone für E-MTB, Boost110, 15 mm Maxle Stealth-Achse, 160 mm Federweg |
| Rear Shocks | RockShox Deluxe Select+ RT, 230 x 57,5 mm |
| Frame type | Fully |
| Shifters | Shimano SLX M7100, 12fach |

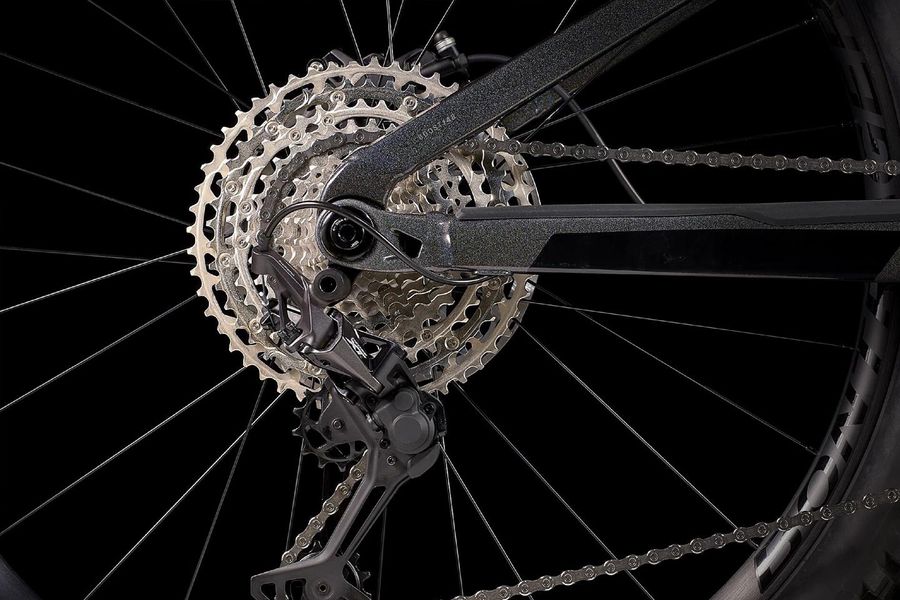

| Rear derailleur | Shimano XT M8100 |
| Crank | E*thirteen E*spec Plus, 34 Z., 165 mm Kurbelarmlänge |
| Chain rings | E*thirteen E*spec, 34 Z. Aluminium, 55 mm Kettenlinie |
| Chain | Shimano Deore M6100 |

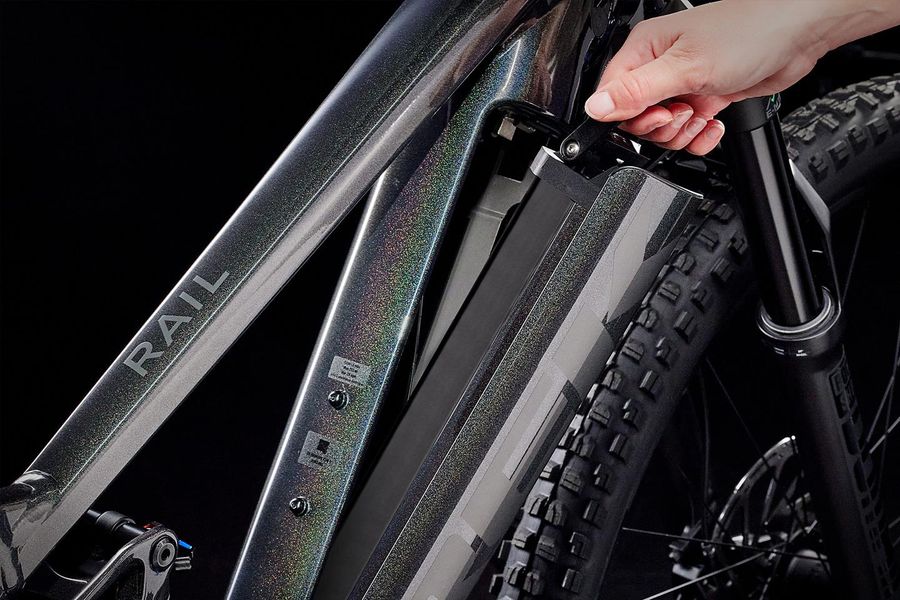

| Battery pack | Bosch PowerTube 625 Wh, Smart System |

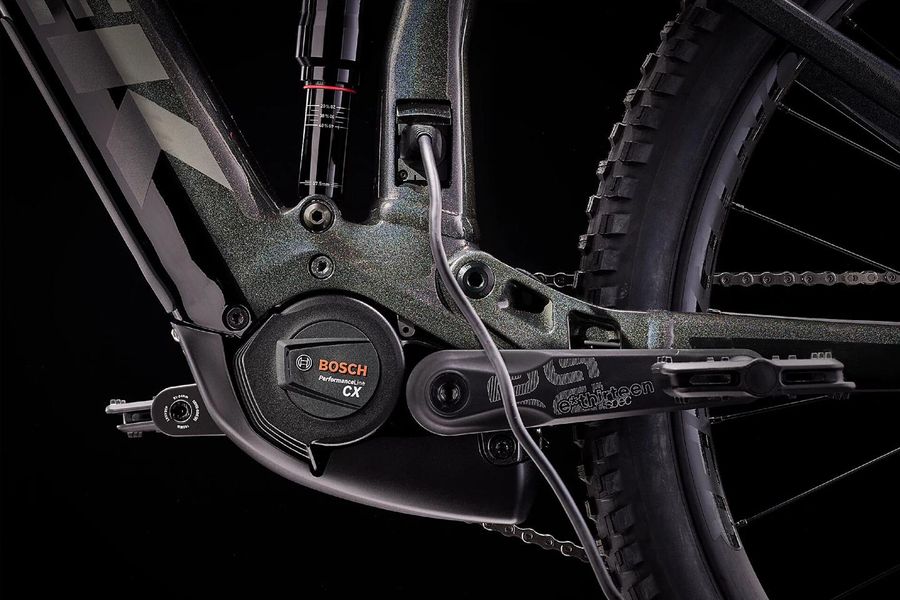

| E-Engine | Bosch Performance Line CX (85Nm) |
| Remote | Bosch LED-Remote, Smart System |
| Charger | Bosch Standardladegerät 4 A, 230 V, Smart System |
| Brake | SRAM CenterLine 6-Bolt 200mm (F/R) |
| Brake lever | SRAM Code R 1-Finger |
| Brake caliper | SRAM Code R 4-Piston |
| Rims | Bontrager Line Comp 30, Tubeless Ready, 28-Loch, Presta-Ventil |
| Tires | Bontrager XR5 Team Issue, Tubeless Ready, Aramidwulstkern, 120 TPI, 29 x 2.50 |
| Front hub | Bontrager, Aluminium, gedichtetes Lager, Aluminiumachse, 6-Loch-Scheibenaufnahme, Boost110, 15-mm-Steckachse |
| Rear hub | Bontrager, Aluminium, gedichtetes Lager, 6-Loch-Scheibenaufnahme, Rapid Drive 108, Shimano MicroSpline-Freilaufnabe, Boost148, 12 mm Steckachse |
| Handlebar | Bontrager Rhythm Comp, Aluminium, 31,8 mm, 15 mm Rise, 780 mm Breite |
| Stem | Bontrager Rhythm Comp, Knock Block, 31,8 mm, 0 Grad, 50 mm Länge |
| Grips | Bontrager XR Trail Comp, Nylonklemme |
| Saddle | Bontrager Arvada, Stahlstreben, 138 mm Breite |
| Seatpost | TranzX JD-YSP18, S: 100mm , M,L,XL: 150mm (interne Zugführung, 31.6mm (S: 361mm /M,L,XL: 470mm Länge) |
| Weight | 24,8 kg (M) |
| Max. total weight | 136kg |
| Manufacturer Information | Trek Bicycle GmbH |
