900 Series OCLV Carbon
Carbon
Pirelli P Zero Race 700 x 28 mm
Bontrager Aeolus Pro 51 OCLV Carbon
Shimano Ultegra Di2 (2x12)
Shimano Ultegra (160/160)

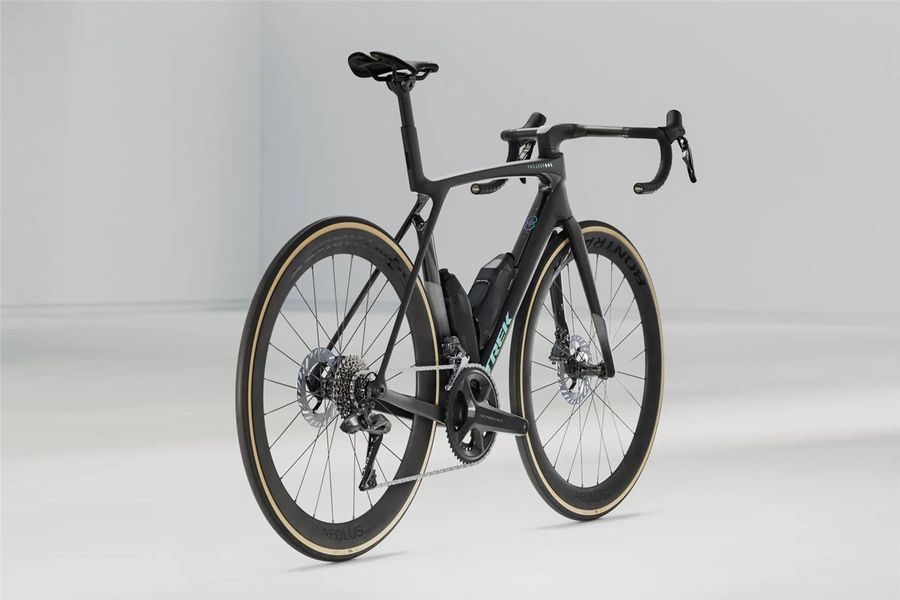

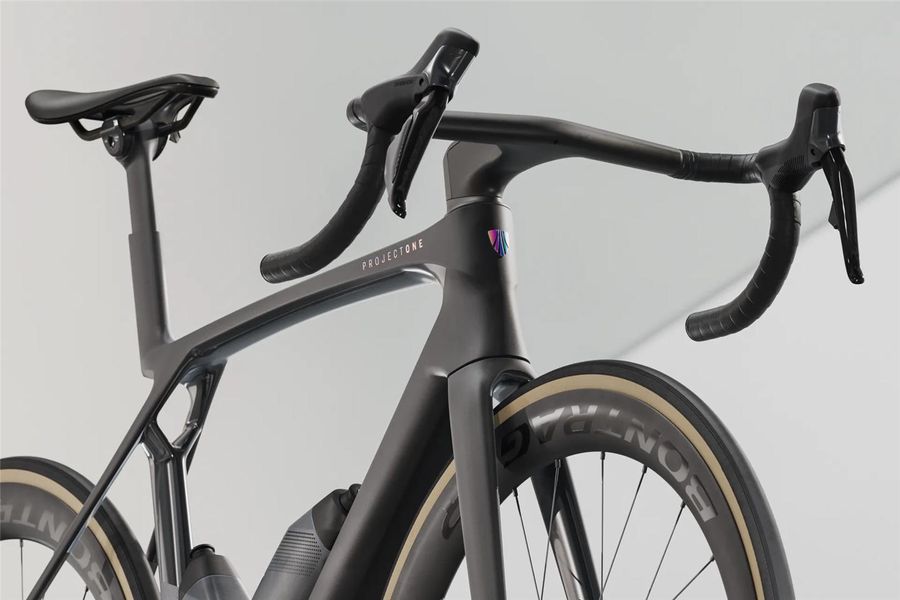

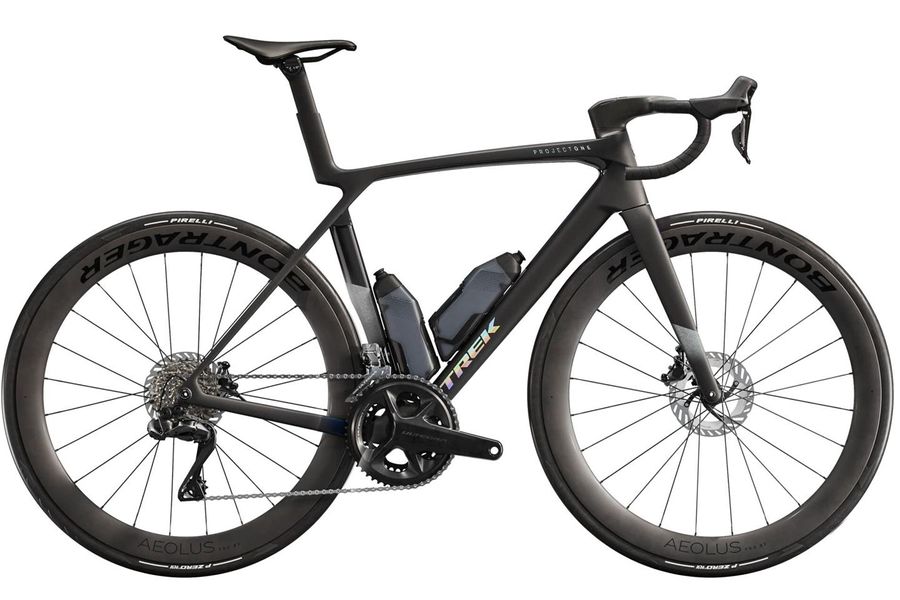

The Madone SLR 7 Gen 8 is an ultra-light, extremely aerodynamic race bike. Its 900 Series OCLV carbon frame is as aerodynamic as it is light. The lightweight IsoFlow frame technology ensures that the performance and speed of the Madone do not come at the expense of comfort. For a further aero advantage, the Madone SLR comes with streamlined RSL Aero water bottles and bottle cages. With Shimano's Ultegra Di2 groupset, carbon wheels and Trek's one-piece carbon Aero RSL handlebar/stem unit, this superbike is born for the podium.
Bike category | Road Bike |
---|---|
Brand | Trek |
Colour | Carbon Smoke |
Model year | 2025 |
Weight | 7,3 kg |
Wheel Size | 28'' |

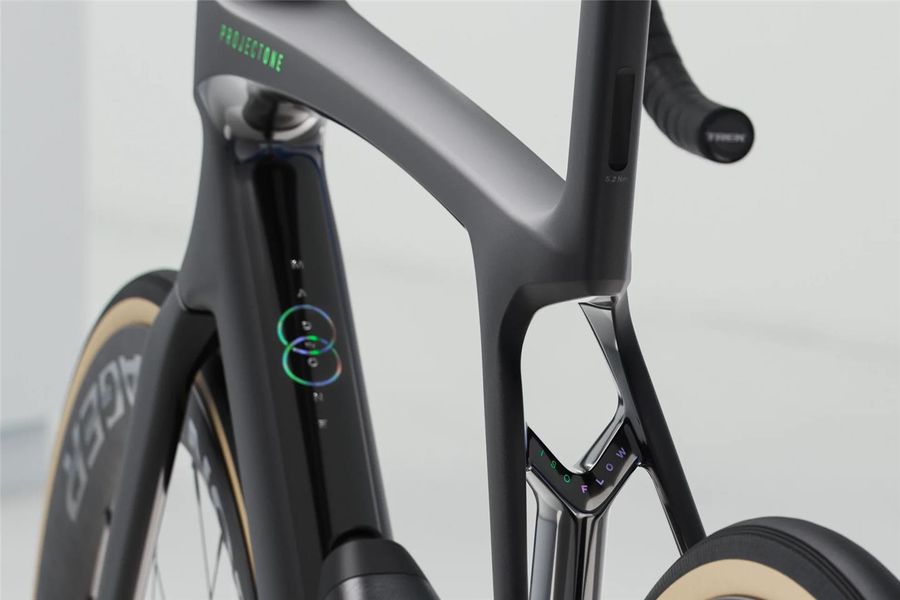

Frame | 900 Series OCLV Carbon, Full System Foil Rohrprofile, IsoFlow-Sitzrohr, RCS Headset System, nur elektronische Schaltung möglich, abnehmbare Aero-Kettenführung, T47-Innenlager, Flat Mount Scheibenbremsaufnahme, UDH, 142 x 12 mm Steckachse |
Frame type | Diamond |
Fork | Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle |
Customization - only in store | |
Wheel set | Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready |
Tires | Pirelli P Zero Race, 120 TPI, Tubeless-kompatibel, 700 x 28 mm |
Shifters | Shimano Ultegra R8170 Di2, 12fach |
Front derailleur | Shimano Ultegra R8150 Di2, Anlötversion, Down Swing |
Rear derailleur | Shimano Ultegra R8150 Di2, max. 34 Z. an größtem Ritzel |

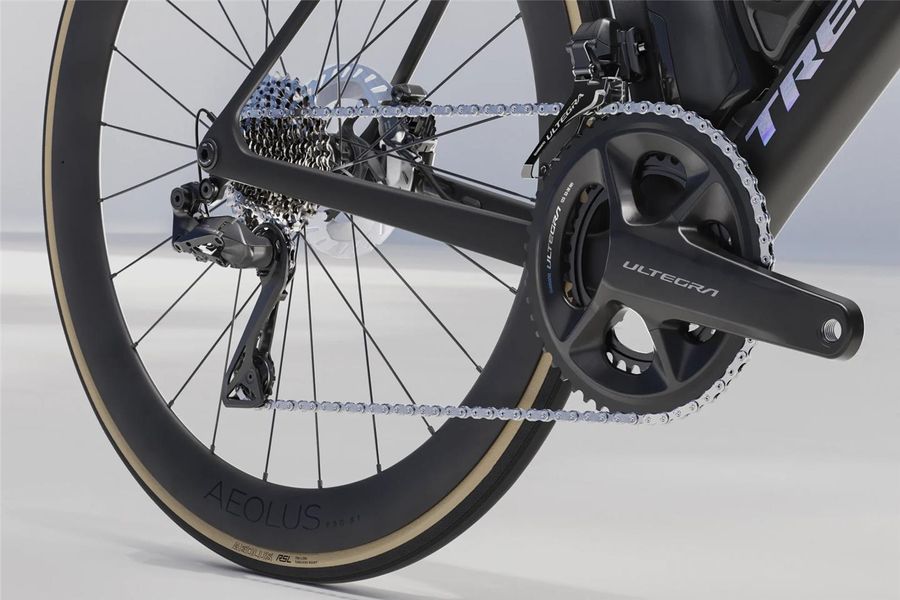

Crank | Shimano Ultegra R8100, 52/36 Z. |
Cassette | Shimano Ultegra R8101, 11-30, 12fach |
Chain | Shimano Ultegra/XT M8100, 12fach |
Brake | Shimano Ultegra R8170 mit CL800 Disc, Center Lock Scheibenaufnahme, 160 mm |

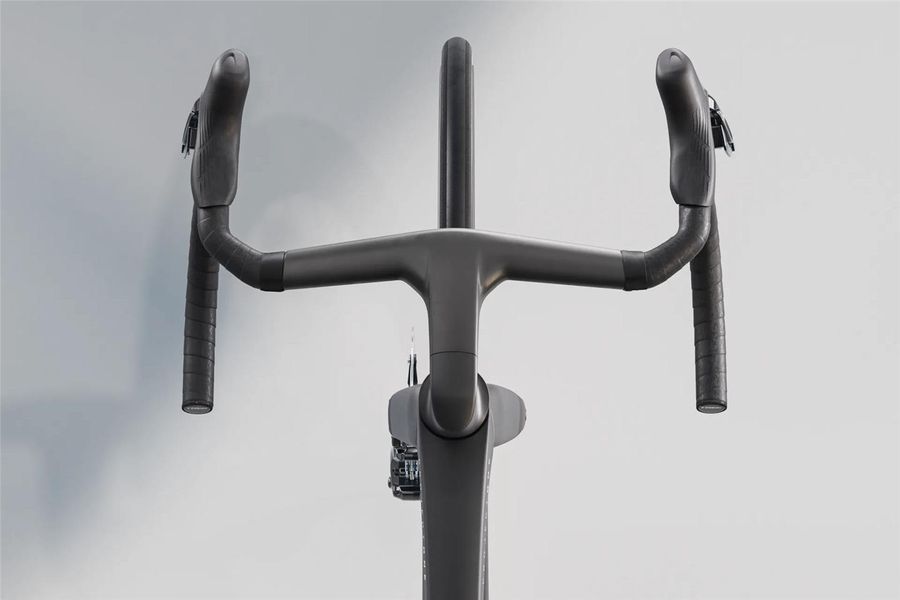

Integrated bar/stem | Trek Aero RSL Road integrierte Lenker/Vorbau-Einheit, OCLV Carbon, Race Fit, 80 mm Reach, 124 mm Drop |
Saddle | Bontrager Aeolus P2 Pro, Carbonstreben |
Seatpost | Madone, Aero-Sattelstütze aus Carbon, 0 mm Versatz |
Max. total weight | 125 kg |
Annotation | The illustration may differ. The manufacturer reserves the right to replace certain components with components of equivalent quality. |
Manufacturer Information | Trek Bicycle GmbH |
