Trek Madone SL 5 Gen 8
Highlights
Frame
Carbon
Fork
Carbon
Tires
Bontrager R1, 700 x 28 mm
Wheelset
Bontrager Paradigm SL
Shifter
Shimano 105 (2x12)
Brakes
Shimano 105 (160/160)
Trek Madone SL 5 Gen 8
The Madone SL 5 Gen 8 is a lightweight aero road bike that makes elite race technology affordable. It offers similar aerodynamic advantages to the higher priced Madone SLR Gen 8, but is based on a more affordable 500 Series OCLV carbon layup and a two-piece cockpit with internal cable routing. Its race geometry ensures high speeds when sprinting and superior control on fast descents. A mechanical Shimano 105 groupset keeps the price within manageable limits, but impresses with clean, reliable shifting performance.
Highlights
- The revolutionary Full System Foil tube profiles provide an extremely fast look and give the entire bike unprecedented aerodynamic efficiency
- The more affordable 500 Series OCLV carbon frame and new tube profiles save important weight for superior climbing performance
- With the Shimano 105 groupset, you benefit from precise and reliable gear changes without having to plunder your bank account
- Lightweight, race-focused IsoFlow comfort technology helps you pedal harder for longer
Additional Information
| General | |
| Bike category | Road Bike |
|---|---|
| Model year | 2026 |
| Colour | Gloss Dark Star/Matte Deep Smoke |
| Max. total weight | 125 kg |
| Fahrraddetails | |
| Price | Price in branch store might be lower. (info@rabe-bike.de / +4989 125 01 01 01) |
| Frame | |

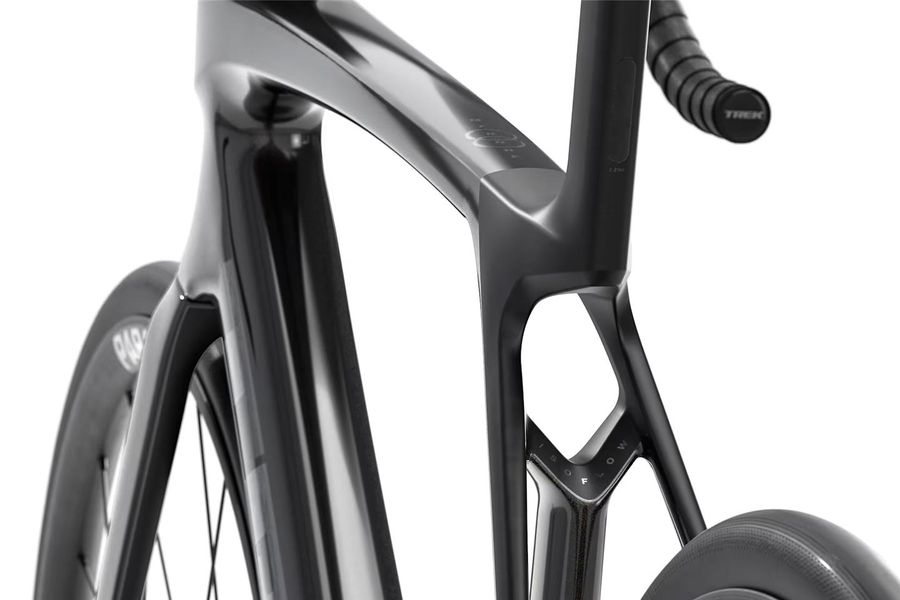

| Frame | 500 Series OCLV Carbon, Full System Foil Rohrprofile, IsoFlow-Sitzrohr, RCS Headset System, elektronische oder mechanische Schaltung möglich, abnehmbare Aero-Kettenführung, T47-Innenlager, Flat Mount Scheibenbremsaufnahme, UDH, 142 x 12 mm Steckachse |
| Fork | Madone Gen 8, Vollcarbon, konischer Carbongabelschaft, interne Bremszugführung, Flat Mount Scheibenbremsaufnahme, abgeschrägte 12 x 100 mm Steckachse |
| Frame type | Diamond |
| Drive | |

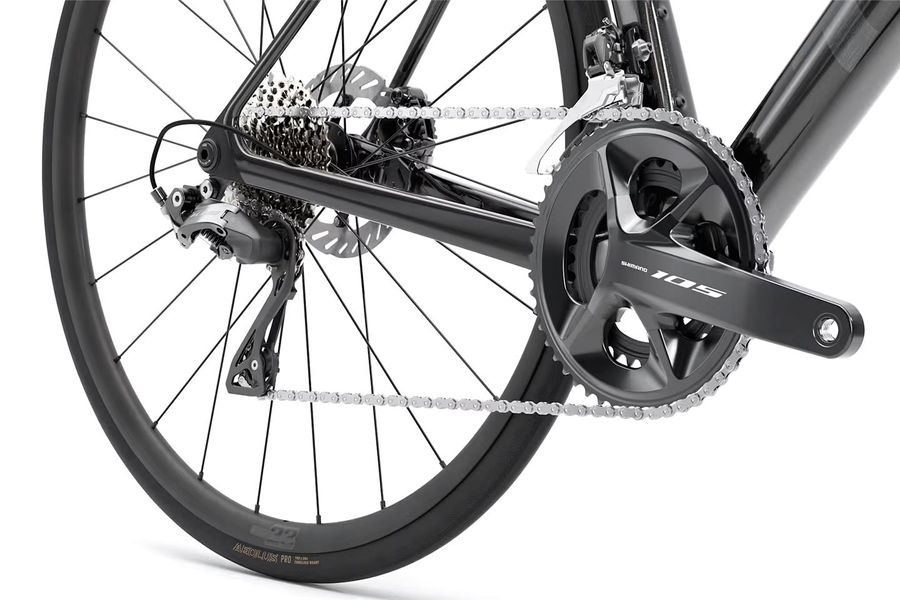

| Shifters | Shimano 105 ST-R7100 |
| Rear derailleur | Shimano 105 R7100, max. 36 Z. an größtem Ritzel |
| Front derailleur | Shimano 105 R7100, Anlötversion, Down-Swing |
| Crank | Shimano 105 R7100, 50/34 Z |
| Cassette | Shimano 105 7101, 11-34 Z., 12fach |
| Chain | Shimano SLX M7100, 12fach |
| Brakes | |
| Brake | Shimano RT70, Center Lock Scheibenaufnahme, 160 mm |
| Brake lever | Shimano 105 ST-R7100 |
| Wheels | |
| Rims | Bontrager Paradigm 23, Tubeless-Ready, 24-Loch, 23 mm Innenweite, Presta-Ventil |
| Tires | Bontrager R3 Hard-Case Lite, Tubeless-Ready, Aramidwulstkern, 170 TPI, 700 x 28 mm |
| Wheel Size | 28'' |
| Front hub | Bontrager, Aluminium, gedichtetes Lager, Center Lock-Scheibenaufnahme, 100 x 12 mm-Steckachse |
| Rear hub | Bontrager, Aluminium, gedichtetes Lager, Center Lock-Scheibenaufnahme, 11fach-Freilaufnabe von Shimano, 142 x 12 mm-Steckachse |
| Cockpit | |

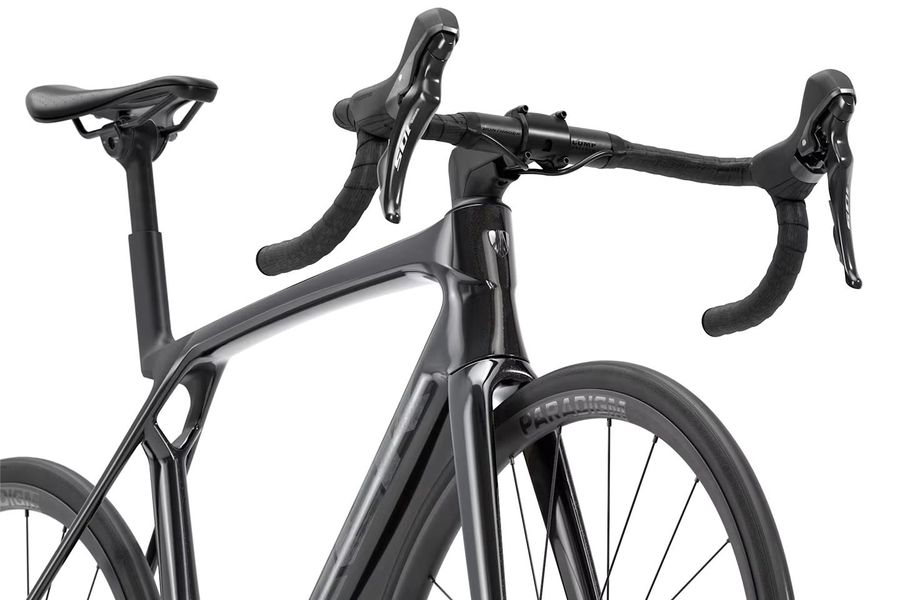

| Handlebar | Bontrager Comp, Aluminium, 31,8 mm Klemmdurchmesser, 80 mm Reach, 121 mm Drop |
| Stem | Trek RCS Pro, -7 Grad |
| Grips | Trek EcoTack |
| Seat | |
| Saddle | Bontrager Aeolus Elite, Austenitstreben, 145 mm Breite |
| Seatpost | Madone, Aero-Sattelstütze aus Carbon, 0 mm Versatz, kurze Länge |
| Other | |
| Customization - only in store | |
| Annotation | The illustration may differ. The manufacturer reserves the right to replace certain components with components of equivalent quality. |
| Manufacturer Information | |
| Manufacturer Information | Trek Bicycle GmbH |
| Product Safety Documents | |
