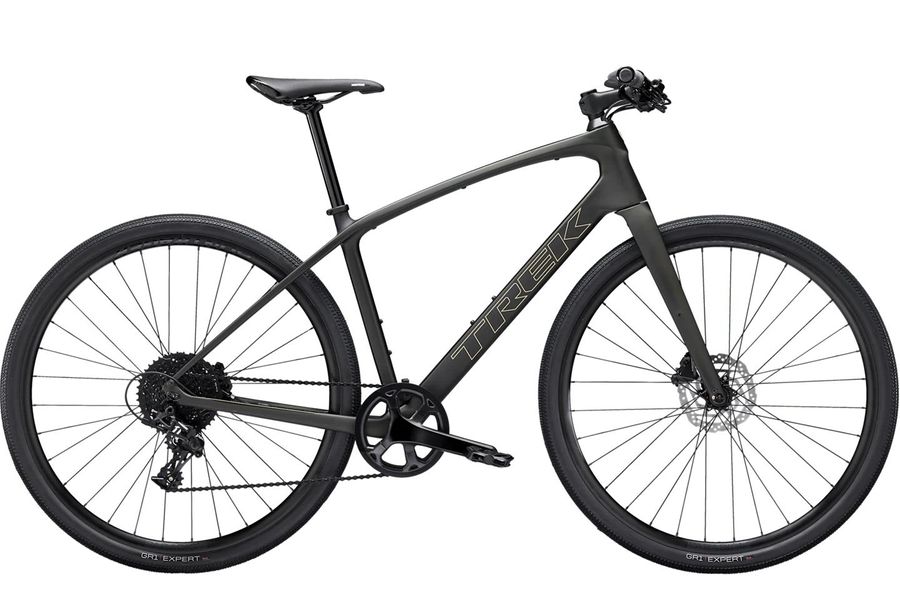

Trek FX Sport 5

Item no. 74512
2,299.00 € *
[1]
Variant
Size

The FX Sport 5 is a carbon fitness bike for those who want to combine the speed of a lightweight road bike with the comfort and control of a flat bar bike. Its high-quality drivetrain, hydraulic disc brakes and Tubeless Ready wheels make it perfect for solo training laps, fast group rides and a variety of other uses.

Highlights

Frame

Carbon

Fork

Carbon

Tires

Bontrager GR1 Expert 700 x 40 mm

Wheelset

Bontrager Paradigm

Shifter

SRAM Apex (1x11)

Brakes

Shimano MT201 (160/160)

Trek FX Sport 5

The FX Sport 5 is a carbon fitness bike for anyone who wants to combine the speed of a lightweight road bike with the comfort and control of a flatbar bike. Its high-quality drivetrain, hydraulic disc brakes and tubeless-ready wheels make it perfect for solo training laps, fast group rides and a variety of other uses. The Trek FX Sport 5 belongs to a new generation of sporty trekking bikes that are similar in character to a road bike in many respects. However, because its range of use is more versatile, it is also referred to as a hybrid bike. The lightweight, slim frame, which is even made of carbon on the FX Sport 5, is derived primarily from the road bike. However, the riding position on the FX is noticeably more comfortable, not least due to the straight handlebars. This is also equipped with the new, vibration-damping IsoZone material. Rolling comfort is ensured by 40 mm wide tyres, which can also cope with the odd gravel section. Threaded eyelets discreetly integrated into the frame significantly extend the range of use. For example, the FX Sport 5 can be converted into a fast commuter bike with a pannier rack and mudguards. Another practical feature is the Blendr system developed by Trek for attaching lights, bike computers, smartphones and other accessories to the stem in no time at all. No more rickety screw clamps or ugly cable ties. The main upgrade compared to the FX Sport 5 is a higher quality drivetrain with Sram Apex 1 components.

Highlights

  • The performance of a true carbon road bike with the comfort and control of a flatbar bike
  • The 1x drivetrain combines a wide gear range with the simple operation of a single gear lever
  • Make room! This fitness bike doesn't need to shy away from fast group rides
  • It can be easily retrofitted with mudguards, lights and much more

Trek OCLV Carbon - The benchmark in lightweight construction

The OCLV Carbon developed by Trek has been a household name on the scene for over 25 years. There are now different series for the bike classes, from mountain bike to road bike. The FX 5 Sport uses the 400 Series OCLV, which offers maximum performance at an affordable price. However, it is not the lower weight alone that distinguishes a carbon frame from an aluminium frame. Rather, carbon fibres offer better opportunities to improve the stiffness at neuralgic points quite specifically. Or in contrast to increase the flex at other points for more riding comfort. In general, a carbon frame is able to soften peaks of violent impacts and reduce vibrations. This makes this material so ideal for bikes.

Additional Information

Bike category Fitness Bike
Brand Trek
Model year 2025
Colour Matte Black Olive/Deep Smoke
Wheel Size 29''
Frame 400 Series OCLV Carbon, interne Zugführung, 3S-Kettenführung, DuoTrap S-kompatibel, Schutzblechösen, Flat Mount-Scheibenbremsaufnahme, 135 x 5 mm ThruSkew
Frame type Diamond
Fork Carbon, hidden fender mounts, flat mount disc, 5x100mm thru-skew
Customization - only in store
Rims Bontrager Paradigm, Tubeless Ready, 32-Loch, 21 mm Innenweite, Presta-Ventil
Cassette microSHIFT XLE, 11-42 Z., 11fach
Front hub Formula CL-51, Aluminium, 100 x 5 mm Schnellspannachse
Rear hub Formula CL-52, Aluminium, 135 x 5 mm Schnellspannachse
Tires Bontrager GR1 Expert, Hard-Case Lite, Drahtwulstkern, 60 TPI, 700 x 40 mm
Shifters SRAM Apex, 11fach
Rear derailleur SRAM Apex 1, langer Käfig, max. 42 Z. an größtem Ritzel
Crank Prowheel, Aluminium, Narrow-Wide-Kettenblatt (42 Z.), 175 mm Kurbelarmlänge
Brake Hydraulische Scheibenbremse von Shimano, Shimano RT10, Center Lock-Scheibenaufnahme, 160 mm
Brake lever Shimano MT201
Brake caliper Shimano UR300
Handlebar Bontrager Satellite Plus IsoZone, Aluminium, 31,8 mm, 15 mm Rise
Grips Bontrager Satellite Plus IsoZone, Schraubklemmung, ergonomisch
Stem Bontrager Elite, 31,8 mm Klemmdurchmesser, Blendr-kompatibel, 7 Grad
Saddle Bontrager Montrose Comp, Stahlstreben, 138 mm Breite
Seatpost Bontrager Comp, 6061-Aluminium, 27,2 mm, 8 mm Versatz, 330 mm Länge
Max. total weight 136 kg
Annotation The illustration may differ. The manufacturer reserves the right to replace certain components with components of equivalent quality.
