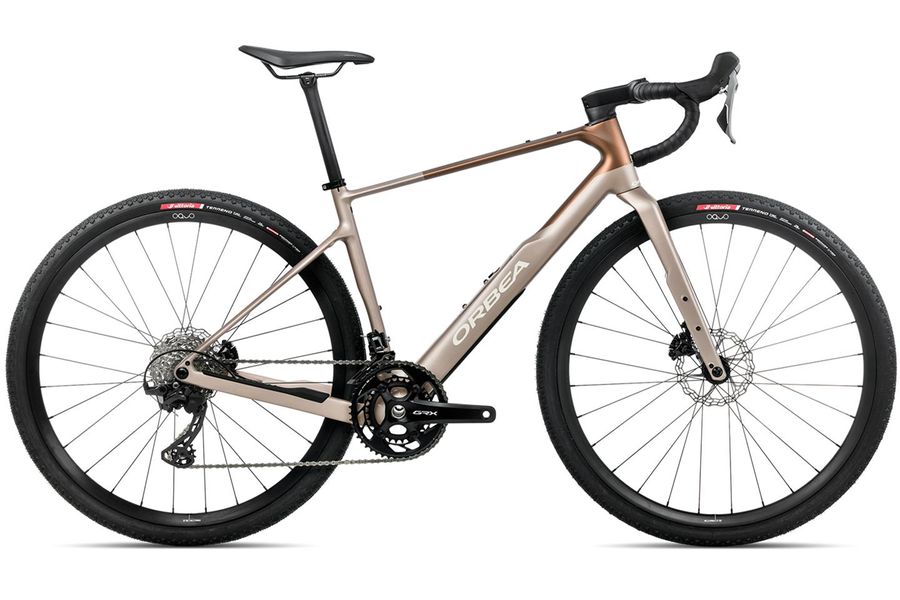

Orbea Terra M20Team
Freedom begins where roads end. Where the land stretches out, almost limitless and challenging, and every turn of the pedals opens up even more possibilities. The Terra is your best buddy, a high-performance gravel bike with Shimano GRX 2x12 gears and OQUO RC25 PRO aluminium wheels for off-road adventures, whether bikepacking or a lap around your local lake.
Highlights
Frame
Carbon
Fork
Carbon
Tires
Vittoria Terreno T30, 700x45c
Wheelset
Oquo Road Control RC25PRO
Shifter
Shimano GRX RX820 (2x12)
Brakes
Shimano RX820
Additional Information
| Bike category | Gravel Bike |
|---|---|
| Brand | Orbea |
| Colour | Nickel - Met Cinnamon |
| Model year | 2026 |
| Wheel Size | 28'' |
| Frame | Orbea Terra carbon OMR Disc, monocoque construction, HS 1,5", BB386EVO, powermeter compatible, Thru Axle 12x142mm rear, thread M12xP1, UDH dropout, LOCKR XXL service box, MMS munti mount system, fender ready |
| Frame type | Diamond |
| Fork | Orbea Terra Race ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1, MMS multi mount system, fender ready |
| Customization - only in store | |
| Wheel set | Oquo Road Control RC25PRO |
| Front hub | Orbea Thru Axle 12x100mm M12xP1 Hollow |
| Rear hub | Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded |
| Tires | Vittoria Terreno T30 fine loose Gravel Endurance G2.0 700x45c |
| Shifters | Shimano GRX RX820 |
| Front derailleur | Shimano GRX RX820 |
| Rear derailleur | Shimano GRX RX820 |
| Crank | Shimano GRX RX820 31x48t |
| Cassette | Shimano HG710 11-36t 12-Speed |
| Chain | Shimano M7100 |
| Brake | Shimano RX820 Hydraulic disc |
| Handlebar | OC Gravel GR31, Reach 70, Drop 110 |
| Grips | Orbea Anti-Slippery/Shock Proof |
| Stem | OC Road Performance RP10, -8º |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Saddle | Fizik Terra Argo X7 Aluminium Rail 150mm |
| Seatpost | OC Performance XP10 Carbon, 27.2mm, Setback 0 |
| Annotation | The illustration may differ. The manufacturer reserves the right to replace certain components with components of equivalent quality. |
| Manufacturer Information | Orbea S. Coop. |
