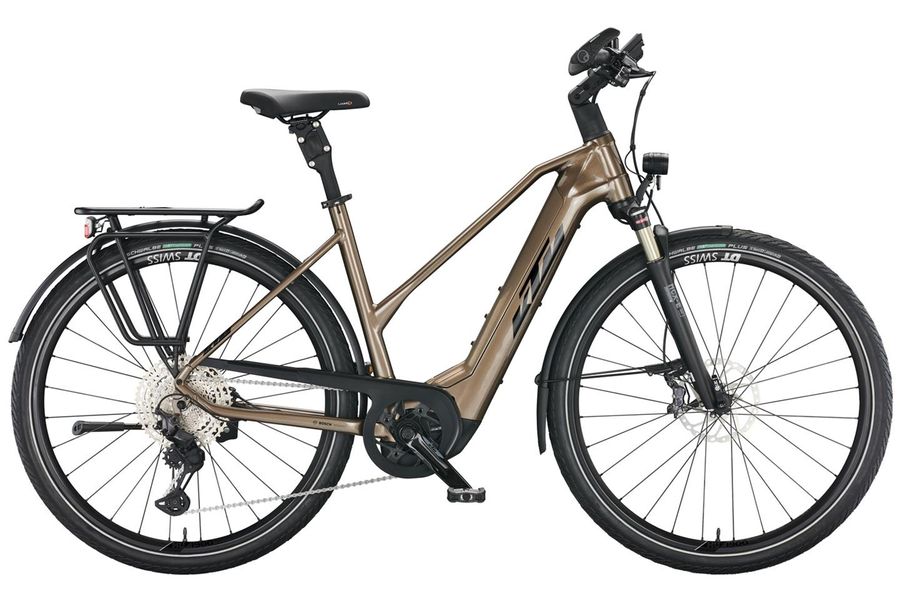

KTM Macina Style 710 Trapeze (2022)

Item no. 56095
4,899.00 € *
Variant
Size

If someone had to describe comfortable cycling in one sentence, then he couldn´t describe it without using KTM Macina Style 710. This top-equipped trekking pedelec comes with everything your heart desires. New 750Wh battery, Kiox display, suspension seatpost, Shimano XT transmission + brakes and excellent, as usual KTM quality. Well then! Ready to go?

Highlights

Lighting

B&M Lumotec IQ-XM LED 120-170Lux

Frame

Aluminium

Fork

SunTour NCX-E Air LO (63mm)

Shifter

Shimano XT (1x11)

Brakes

Shimano XT (180/160)

Drive Unit

Bosch Perf. CX Gen4 (85 Nm) - PowerTube (750 Wh)

KTM Macina Style 710 - Touring with style and a powerful drive system

If you're looking for a trekking e-bike that's as versatile as possible, you're sure to find what you're looking for in the range from Austrian manufacturer KTM. For example, the KTM Macina Style 710. This very well equipped all-rounder for road and light terrain leads the Style series.  With the Macina Style 710, KTM remains true to its claim of building comfortable e-bikes for extended tours. This is ensured by a Suntour NCX-E Air air suspension fork with lockout, a cranked handlebar and an angle-adjustable stem. In addition, the comfortable saddle sits on a spring-mounted post. A noticeable difference compared to a rigid e-bike. In terms of high-quality equipment, KTM relies on a mix of in-house and Shimano components. For example, this pedelec is equipped with reliable Deore XT 11-speed gears and a Shimano Deore 11-speed cassette with 11-50 teeth. The transmission features the new LinkGlide System (LG), so that every shift is even more frictionless. In addition, the service-friendly, powerful XT 4-piston brake including 180mm or 160mm brake discs is installed. Of course, the KTM Macina Style 710 is equipped with StVZO-compliant lighting system, sturdy mudguards and a loadable luggage rack. We offer the Macina Style 710 in three different frame styles: As a men's version (diamond), as a women's version with a lowered top tube (trapeze) and as a low stepper (US).

High-quality equipment with Bosch Performance CX motor

One of the most successful model series of recent years is once again making history. The technically sophisticated recipe for success sounds quite simple: quality, comfort, performance and style at the highest level. The STYLE models 710, 720, 730 and XL remain true to their basic principles, but have been completely re-created for the 2022 model year. At the heart of these bikes is the completely redesigned frame, in combination with the new Bosch Smart System. This self-contained Bosch system, easily recognizable by the new control unit, means you're ready for the digital future.
The long-lasting 750 watt-hour battery delivers its energy to the 4th generation Bosch Performance CX motor. You will hardly find a more powerful and better motor at the moment. Also state-of-the-art is the new Bosch Kiox 300 display. Here, too, Bosch has come up with something special. The Kiox 300 display is freely configurable via the Bosch Flow-App (available from fall 2021) and software updates for e-bikes can now be carried out from the comfort of your own home. The regulation of the support levels is now also possible for riders using the Kiox-Display. The PowerTube battery is elegantly hidden in the down tube and brings you with increased 750 watt hours capacity even to distant destinations.

Highlights

  • E-trekking bike suitable for long distances
  • Sophisticated comfort concept
  • Bosch Kiox 300 display
  • Long range thanks to 750 Wh battery
  • High quality components

What are the differences between the KTM Macina Style models? You can find explanations and more information about the bike on the following page:

Additional Information

Bike category Trekking E-Bike
Brand KTM
Colour oak (black+orange)
Weight 26,9kg
Wheel Size 28''
Frame Macina Trekking Onroad Alloy6061; PT750Wh Bosch Gen.4 / T-2940
Frame type Trapeze
Fork SunTour NCX-E Air LO 63mm 15QLC
Customization - only in store Anpassen der optimalen Sitzposition entsprechend deiner Anatomie
Wheel set DT Swiss HU 1900 CL 100/15TA / 622x25C
Cassette Shimano LG600-11 / 11-50
Tires Schwalbe Energizer Plus Perf. GreenGuard 50-622/Schwalbe Energizer Plus Perf. GreenGuard 50-622
Shifters Shimano Deore XT M8130-11 LG
Rear derailleur Shimano Deore XT M8130-11 LG shadow+
Crank KTM Team ISIS 170mm Q16
Chain Shimano LG500
E-Engine Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm
Battery pack Bosch PowerTUBE 750Wh SMART SYSTEM hor.
Display Bosch KIOX TFT Display SMART SYSTEM
Charger Bosch STANDARD Charger 4A smart system
Brake Shimano Deore XT T8100 / M8120 4-Piston, Shimano RT64 CL 180/160 magnet
Handlebar KTM Line rizer20 640mm
Grips Ergon GP30 SD with Barend
Stem KTM Line adjust. 0-60° internal
Headset Acros AICR internal 1.1/8''-1.5'' angle limit
Saddle Selle Royal Lookin+
Seatpost KTM Comp parallelogramm 30.9/350
Saddle clamp KTM Line JD-SC99 - 34,9mm
Headlight B&M Lumotec IQ-XM LED 120-170Lux
Back light B&M Toplight BREX LED
Mudguards SKS A55K 55mm black matt
Rack KTM Racktime Tour (snap-it 1.0)
Bike stand Hebie 28'' adjust
Annotation Illustrations and specifications may vary. The manufacturer reserves the right to replace certain components with components of similar quality.
