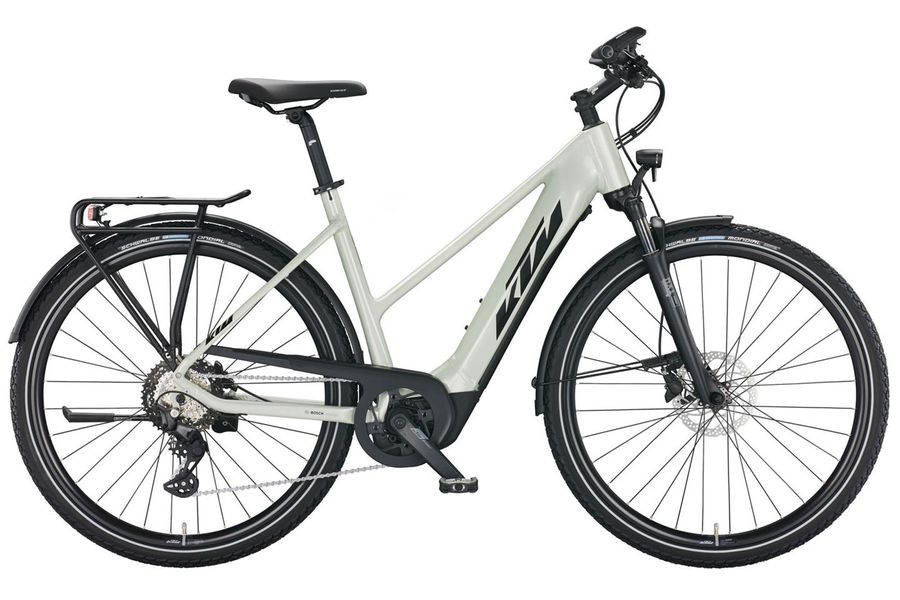

KTM Macina Sport 630 Trapeze (2022)

Item no. 56087
3,699.00 € *
Finance at 0% now!
Sold out
Do you want to be sporty, but still with a lot of comfort on the road? That's exactly what the KTM Macina Sport 630 stands for with its powerful Bosch Performance CX motor, Bosch Intuvia display and reliable Shimano components.



B&M Lumotec MYC LED 50Lux




SunTour NX1 coil LO (63mm)


Shimano Deore (1x10)


Shimano MT200/MT200 (180/160)

Drive Unit

Bosch Perf. CX Gen4 (85 Nm) - PowerTube (625 Wh)

KTM Macina Sport 630 - City and Touring All-Rounder

If you mainly ride on asphalt and paved roads, an e-bike from the Macina Sport series would be the best choice. The Macina Sport 630 is equipped with smooth-running 28-inch wheels and medium-wide tires, so that even if you encounter coarse gravel and pebbles, you'll be safe on the road. For the high-quality equipment, KTM relies on a mix of in-house components and Shimano components. Thus, this pedelec is equipped with a reliable Deore 10-speed transmission and service-friendly MT200 2-piston brake with 180mm respectively 160mm brake discs. The flatter handlebars result in a sportier riding position than comparable KTM models. The centerpiece of this frame is the Circular Power Flow (CPF) design with raised chainstays that run directly into the main tube.

The power of the Bosch Performance CX motor

Introduced in 2020, the 4th generation Bosch Performance CX motor remains the benchmark in e-bike drive technology in 2022. New in 2022 is the Tour+ mode, which gives you even more range thanks to progressive support. This Tour+ mode can also be retrofitted via an update. Hardly any other motor intervenes so harmoniously and powerfully in the powertrain. An easy-to-read Bosch Intuvia display provides you with all important information during the ride, for example about the selected support level and the remaining range. The PowerTube battery is elegantly hidden in the down tube and brings you with 625 watt hours capacity even to distant destinations.


  • Bosch Performance CX Gen4 motor (85 Nm)
  • Integrated PowerTube battery with 625-Wh endurance
  • Reliable Shimano Deore 10-speed gears
  • Low-maintenance Shimano disc brakes

What are the differences between the KTM Macina Sport models? You can find explanations and more information about the bike on the following page:

Additional Information

Bike category Trekking E-Bike
EAN 9008594461079
Brand KTM
Model Year 2022
Colour dew silver (black+orange)
Weight 25,2kg
Wheel Size 28''
Frame Macina Trekking Onroad Alloy6061; PT625Wh Bosch Gen.4 / T-0450
Frame type Trapeze
Fork SunTour NX1 coil LO 63mm
Customization - only in store Anpassen der optimalen Sitzposition entsprechend deiner Anatomie
Cassette Shimano LG600-10 / 11-43
Front hub Shimano Deore M6000 CL 32H 100-5QR
Rear hub Shimano Deore M6000 CL 32H 135-5QR
Tires Schwalbe Marathon Mondial Perf. RaceGuard 47-622/Schwalbe Marathon Mondial Perf. RaceGuard 47-622
Shifters Shimano Deore M5130-10 LG display
Rear derailleur Shimano Deore M5130-10 LG shadow+
Crank KTM COMP ISIS 170mm Q16
Chain Shimano LG500
E-Engine Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery pack Bosch PowerTUBE 625Wh hor.
Remote Bosch INTUVIA LCD Display with Remote
Charger Bosch STANDARD Charger 4A
Brake Shimano MT200 / MT200 2-Piston, Shimano RT30 CL 180/160 magnet
Handlebar KTM Line low rizer 640mm
Grips Ergon GP30 SD with Barend
Stem KTM Line 17°
Headset KTM Team Trekking 1.1/8''-1.5'' angle limit
Saddle Selle Royal Essenza+
Seatpost KTM Line 30.9/350
Saddle clamp KTM Line JD-SC99 - 34,9mm
Headlight B&M Lumotec MYC LED 50Lux
Back light B&M Toplight 2C LED
Mudguards SKS A55K 55mm black matt
Rack KTM Racktime light (snap-it 1.0)
Bike stand KTM 28'' adjust
Max. total weight 144kg
Annotation Illustrations and specifications may vary. The manufacturer reserves the right to replace certain components with components of similar quality.
