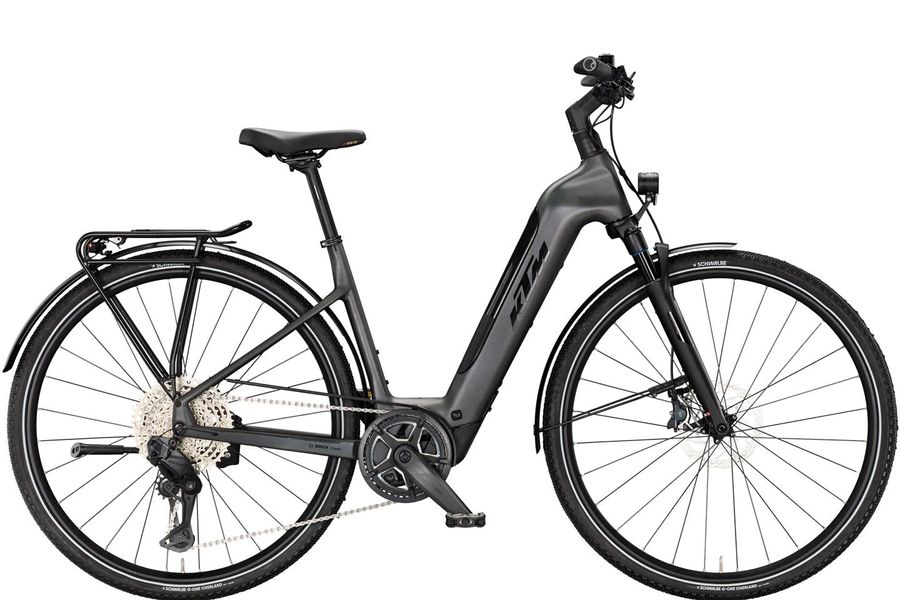

KTM Macina Sport SX Master Di2 US
Light, elegant and sporty for everyday riding: the KTM Macina Sport SX Master Di2 combines a premium carbon frame with the dynamic Bosch Performance SX motor and a removable 400 Wh battery. Electronic Shimano Deore Di2 1x12 shifting, an air suspension fork and full trekking equipment make it the perfect companion for fast commutes and relaxed tours.
Highlights
Lighting
Litemove SC-160 160Lux
Frame
Carbon
Fork
Suntour NRX32IL-E Air (70mm)
Shifter
Shimano Deore Di2 (1x12)
Brakes
Shimano CUES (180/160)
Drive Unit
Bosch Perf. SX (60Nm) / CompactTube (400Wh)
Additional Information
| General | |
| Bike category | Trekking E-Bike |
|---|---|
| Model year | 2027 |
| Colour | Lazer Black Matt (Black Glossy) |
| Weight | 18,9 kg |
| Max. total weight | 129 kg |
| Frame | |
| Frame | Macina Trekking PREMIUM CARBON|CPT400 Bosch SX BDU31/T4100 |
| Fork | Suntour NRX32IL-E Air 2CR 70mm 15x100 |
| Headset | Acros AICR intern 1.1/8"-1.5" angle lim |
| Frame type | Easy Entry |
| Drive | |
| Shifters | Shimano DEORE Di2 M6250 Controller |
| Rear derailleur | Shimano DEORE Di2 M6260-12 ShadowES |
| Crank | KTM E-TEAM2 ISIS 170mm Q8, KTM Aluminium 42T Direct Mount |
| Cassette | Shimano DEORE M6200-12 / 10-51 |
| Chain | Shimano M6100-12 |
| Ebike | |
| Battery pack | Bosch CompactTUBE 400Wh |
| E-Engine | Bosch PERFORMANCE SX BDU3144 |
| Display | Bosch PURION 400 Display |
| Charger | Bosch COMPACT Charger 2A |
| Brakes | |
| Brake | Shimano CUES BR-U8000 2-Piston, Shimano CL300 CL (180/160) |
| Wheels | |
| Rims | KTM E-PRO Tour Light 28H 622x25TC by Rodi, KTM E-PRO Tour Light 28H 622x25TC by Rodi |
| Front hub | BLACK JACK M50 CL 28H SP 100x15TA x KTM DESIGN |
| Rear hub | BLACK JACK M50 CL SP 142x12TA x KTM DESIGN |
| Front tire | Schwalbe G-One Overland Eco 45-622 |
| Rear tire | Schwalbe G-One Overland Eco 45-622 |
| Wheel Size | 28'' |
| Cockpit | |
| Handlebar | KTM TEAM II low rizer 640mm |
| Stem | KTM Line +20° ICR |
| Grips | ERGON GS1 |
| Seat | |
| Saddle | Selle Royal Vaia Gel |
| Seatpost | KTM TEAM II 27.2/300 |
| Saddle clamp | KTM TEAM Light CL-FJ21 - 31,8mm |
| Light | |
| Headlight | Litemove SC-160 160Lux |
| Back light | AXA Juno Signal |
| Acessory | |
| Mudguards | SKS EVO AL 55mm 28" |
| Rack | KTM light 42 snap-it 2.0/monkeyload|rack clip |
| Bike stand | Hebie 28" adjustable |
| Other | |
| Customization - only in store | |
| Configuration - available in our stores | |
| Annotation | The illustration may differ. The manufacturer reserves the right to replace certain components with components of equivalent quality. |
| Manufacturer Information | |
| Manufacturer Information | KTM Fahrrad GmbH |
| Product Safety Documents | |
