Highlights
Frame
Alpha Platinum Aluminium
Fork
RockShox Pike, DebonAir-Feder (130 mm)
Tires
Bontrager XR4 Team Issue
Shifter
SRAM GX Eagle AXS, T-Type (1x12)
Brakes
SRAM DB 8 (180/180)
Rear Shock
RockShox Deluxe Ultimate RCT

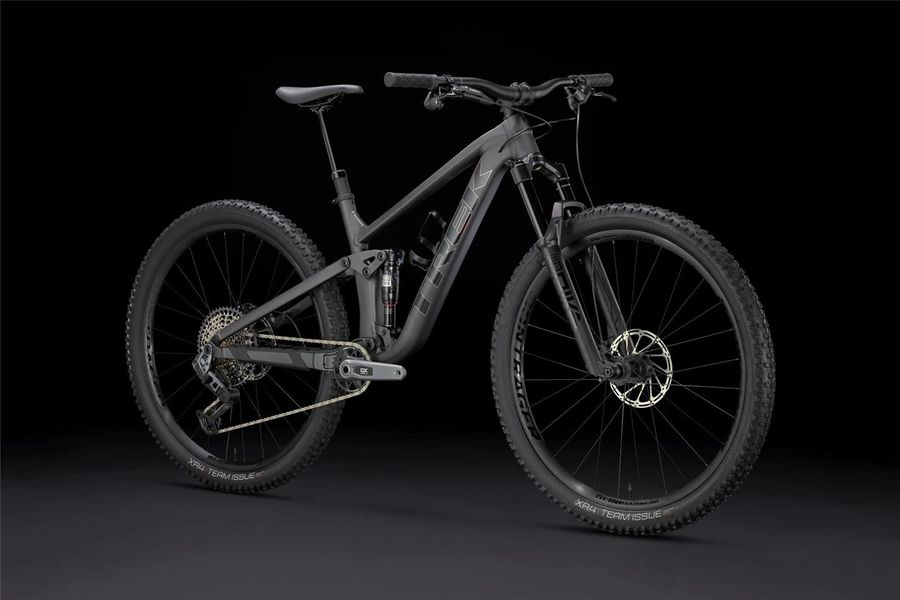

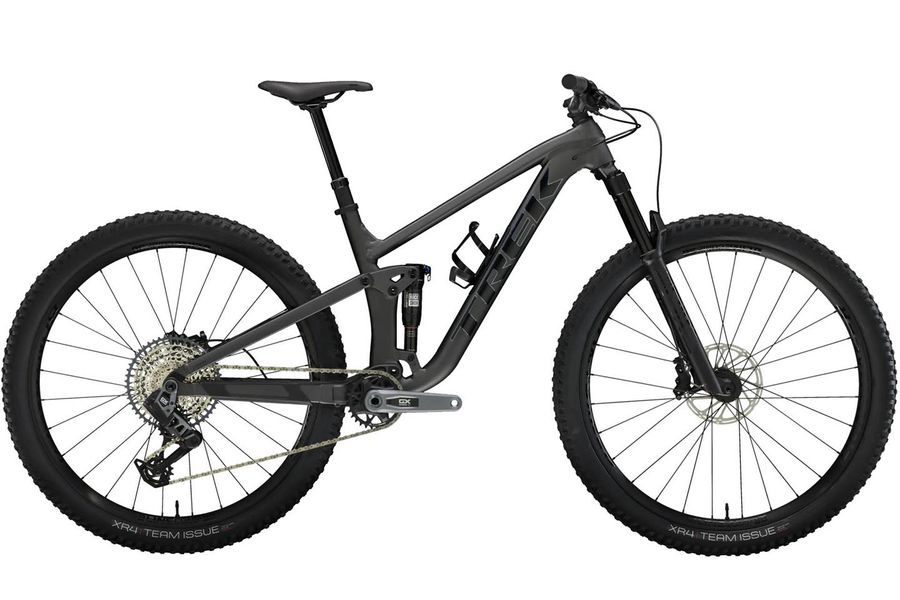

Trek Top Fuel 8 GX AXS T-Type
The Trek Top Fuel 8 GX AXS T-Type Gen 3 in Crimson 2024 combines the speed of a cross-country bike with the versatility and compliance of a full-suspension trail machine, delivering thrills on flowy singletrack as well as technical descents. Its lightweight Alpha Platinum aluminum frame features practical internal storage and adjustable geometry via the Mino-Link, while Knock Block 2.0 allows a greater steering angle without risking cables or hoses.
Highlights
- Its impressively efficient suspension setup can handle any mischief
- SRAM's smart, smooth and completely wireless GX Eagle AXS transmission ensures clean, precise gear changes even under load
- With Mino Link, you can even fine-tune the geometry of the frame quickly and easily on the go

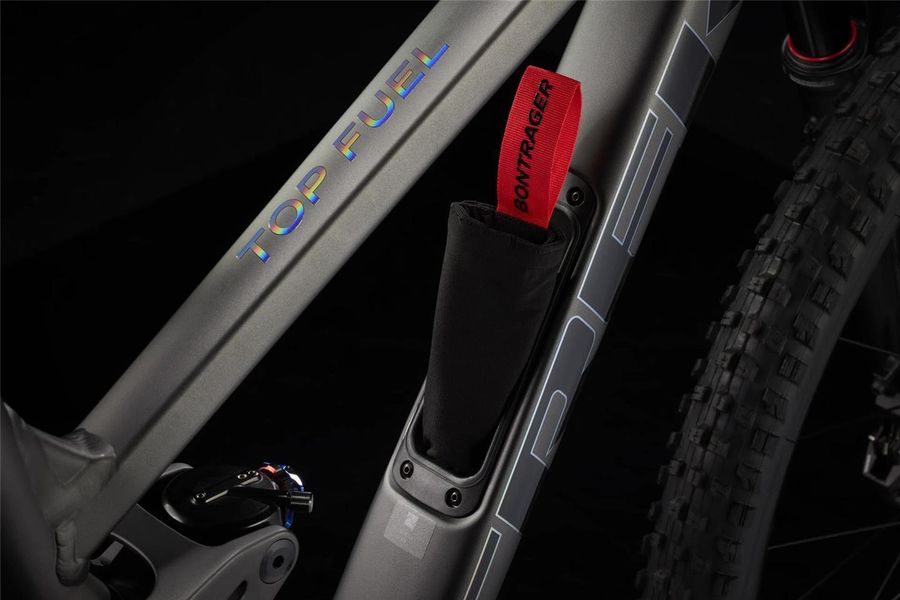

- A slim storage compartment integrated into the frame allows you to store tools and equipment
- A new, removable Knock Block allows a wider steering angle and protects cables and sleeves without restricting the turning circle
Equipped with a RockShox Pike fork with DebonAir spring and Rush RC damper offering 130 mm of travel and a RockShox Deluxe Ultimate RCT shock with 120 mm of rear travel, the bike provides agile, comfortable, and confidence-inspiring handling. Shifting is handled by the fully wireless SRAM GX Eagle AXS T-Type 12-speed drivetrain, delivering crisp and precise gear changes even under load. The Bontrager Line Comp 30 tubeless-ready wheels are lightweight yet robust, and combined with the powerful SRAM DB8 4-piston hydraulic disc brakes they ensure maximum control on any trail. The Top Fuel 8 impresses with its perfect balance of efficiency and playfulness, and with smart features such as internal storage, adjustable geometry, and strong trail-ready details it stands out as a true all-rounder that guarantees riding fun at the highest level both uphill and downhill.
Additional Information
General | |
Bike category | Full Suspension MTB |
---|---|
Model year | 2024 |
Colour | Matte Dnister Black |
Weight | 13,8 kg |
Max. total weight | 136 kg |
Frame | |
Frame | Alpha Platinum Aluminium, internes Staufach, konisches Steuerrohr, Knock Block 2.0, interne Zugführung, Unterrohrschutz, Magnesiumumlenkhebel, Mino Link, ABP, Boost148, 120 mm Federweg |
Fork | RockShox Pike, DebonAir-Feder, Rush RC-Dämpfung, konischer Gabelschaft, 44 mm Vorbiegung, Boost110, 15 mm Maxle Stealth-Achse, 130 mm Federweg |

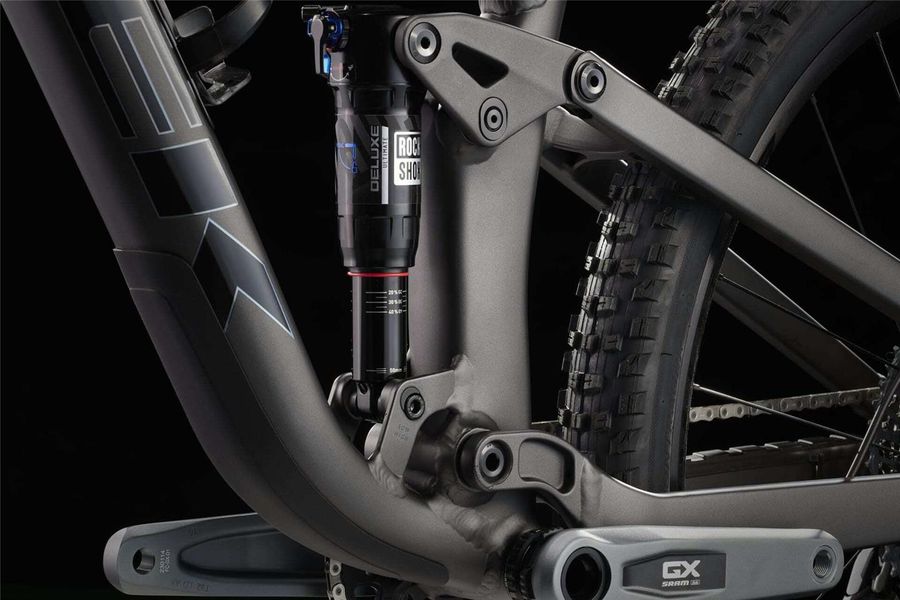

Rear Shocks | RockShox Deluxe Ultimate RCT, 185 x 50 mm |
Frame type | Fully |
Drive | |
Shifters | SRAM AXS POD |

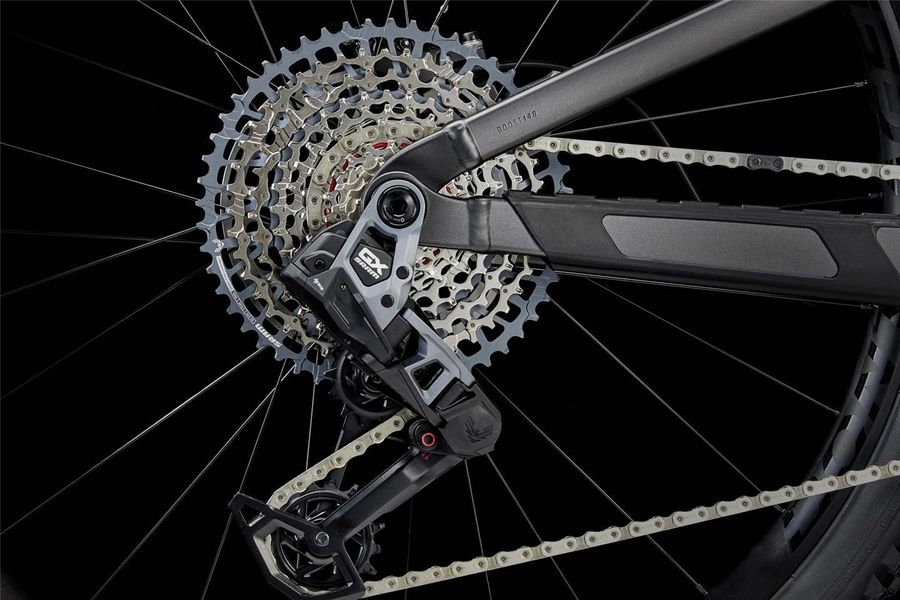

Rear derailleur | SRAM GX Eagle AXS, T-Type |

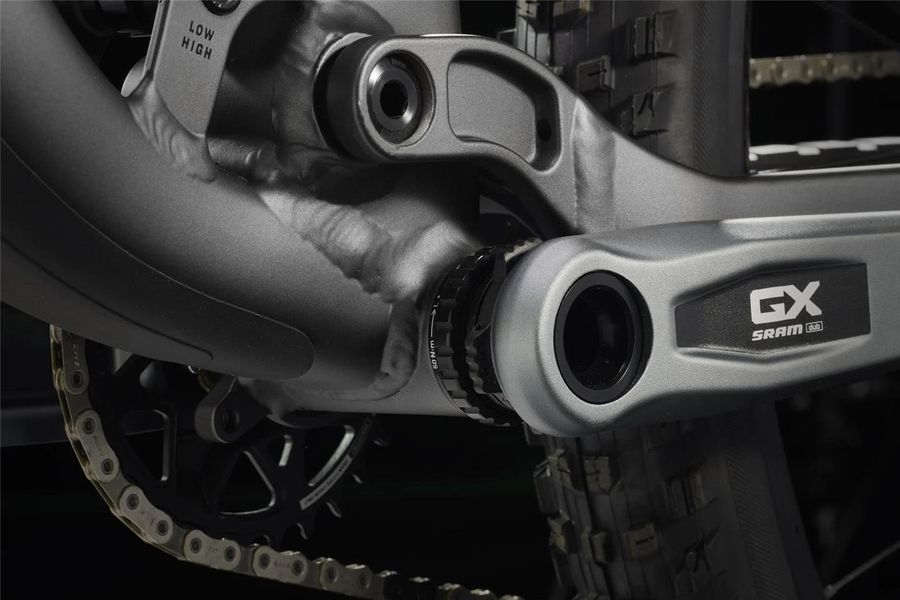

Crank | SRAM GX Eagle, T-Type, DUB, 30 Z., 55 mm Kettenlinie, 170 mm Kurbelarmlänge |
Cassette | SRAM Eagle XS-1275, T-Type, 10-52 Z., 12fach |
Chain | SRAM GX Eagle, T-Type, 12fach |
Brakes | |
Brake | SRAM DB 8 4-piston hydraulic disc, SRAM CenterLine, 6-Loch-Scheibenaufnahme, abgerundete Kante, 180 mm |
Wheels | |
Wheel set | Bontrager Line Comp 30, Tubeless Ready, 6-Loch-Scheibenaufnahme |
Wheel Size | 29'' |
Front hub | Boost110, 15 mm Steckachse |
Rear hub | Boost148, 12 mm Steckachse |
Cockpit | |

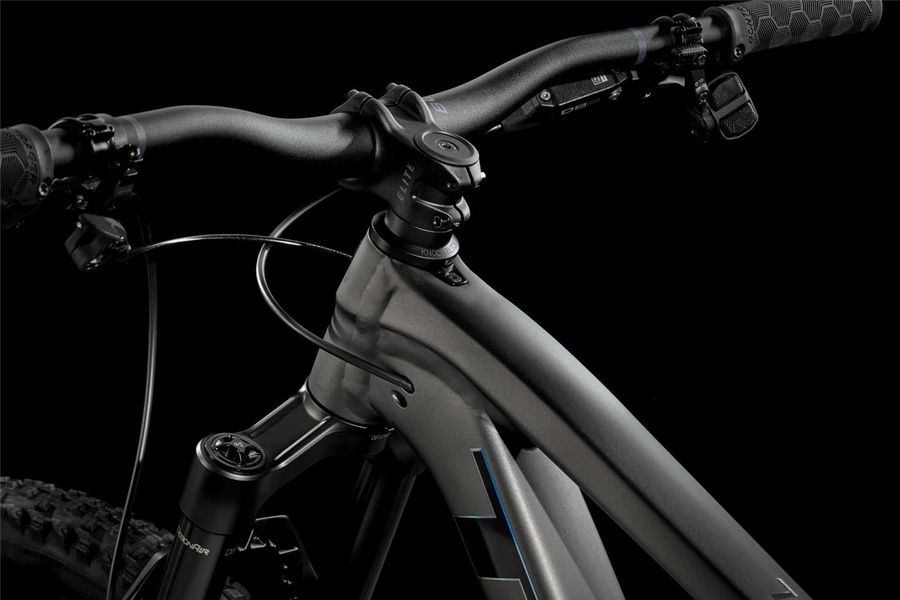

Handlebar | Bontrager Line, Aluminium, 35 mm, 27,5 mm Rise |
Stem | Bontrager Elite, 35 mm, 0 Grad, 45 mm Länge |
Grips | Bontrager XR Trail Comp, Nylonklemme |
Seat | |
Saddle | Bontrager Arvada, Streben aus CrMo-Rohr, 138 mm Breite |
Seatpost | TranzX JD-YSP39, interne Zugführung, 34,9 mm |
Other | |
Customization - only in store | |
Configuration - available in our stores | |
Annotation | |
Manufacturer Information | |
Manufacturer Information | Trek Bicycle GmbH |
Product Safety Documents | |
