OCLV Mountain Carbon, IsoSpeed
RockShox Recon Gold RL, DebonAir-Feder (100 mm)
Bontrager XR2 Team IssueI, 29 x 2.20
Bontrager Kovee Comp
Shimano XT/SLX (1x12)
Shimano MT410/RT56 (180/160)
With a frame made of lightweight carbon, the hardtails from the Procaliber series play in the upper league of mountain bikes. At the heart of the Procaliber 9.6 is the famous Trek OCLV carbon frame, whose design has been constantly refined over many years. The OCLV carbon fiber material is characterized by a particularly high impact resistance, so that even in falls only in rare cases irreparable damage occurs. Another highlight of the current generation is the IsoSpeed system, with which this CrossCountry Hardtail glides even smoother over the trails. More on this in the second paragraph. In the version 9.6 Trek spends the Procaliber some upgrades compared to the OCLV entry model 9.5: The 1 x 12 drive changes gears with a high-quality Shimano XT rear derailleur. Shimano Deore disc brakes are known for their reliability and low maintenance. And the air-sprung RockShox Recon Gold RL plays in the upper league with its adjustment options. The weight savings of a good 500 grams that come with the upgrades are nothing to scoff at on the mountain, either. This trail bike can keep up with the best in terms of performance!

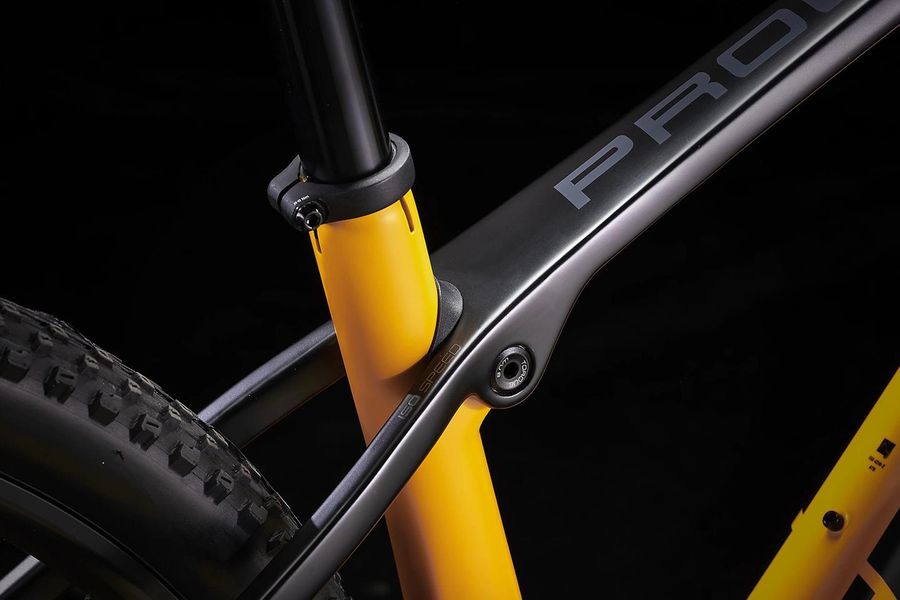

The OCLV Carbon developed by Trek specifically for mountain bikes has been a household name in the scene for years. However, it is not only the lower weight that distinguishes a carbon frame from an aluminum frame. Rather, the material offers better opportunities to improve the stiffness at neuralgic points quite specifically. Or, on the contrary, to generate more flex in terms of comfort if desired - without the stiffness suffering at the start. This ensures the Procaliber frame the IsoSpeed system, a flexible connection that decouples the top tube from the seat tube. In addition, the seat tube flattens above the bottom bracket like a kind of leaf spring. This combination gives the frame the ability to soften spikes from violent impacts and generally reduce vibration. Studies show that the comfort gain allows the rider to tire less quickly than on a conventional frame. This allows you to pedal longer and more efficiently.
Bike category | Hardtail MTB |
---|---|
Brand | Trek |
Model year | 2023 |
Colour | Satin Marigold / Deep Smoke |
Weight | 11,4 kg |
Customization - only in store | Anpassen der optimalen Sitzposition entsprechend deiner Anatomie |
Configuration - available in our stores | Individuelles Fahrwerks Setup durch geschulte Mitarbeiter |
Frame | OCLV Mountain Carbon, IsoSpeed, konisches Steuerrohr, Knock Block, interne Zugführung, Balanced Post Mount-Scheibenbremsaufnahme, Boost148 |
Frame type | Diamond |

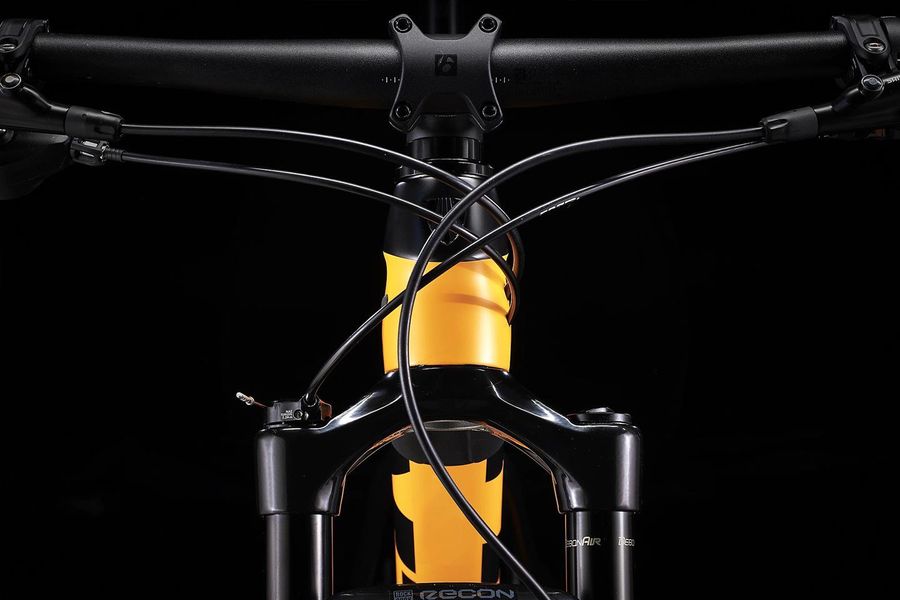

Fork | RockShox Recon Gold RL, DebonAir-Feder, Motion Control-Dämpfung, Remote-Lockout, konischer Gabelschaft, 42 mm Vorbiegung, Boost110, 15 mm-Maxle Stealth-Achse, 100 mm Federweg |
Wheel Size | 29'' |
Tires | Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength-Flankenschutz, Aramidwulstkern, 120 TPI, 29 x 2.20 |
Rims | Bontrager Kovee Comp, Hohlkammerfelge, Tubeless Ready, 28-Loch, 23 mm Innenweite, Presta-Ventil |

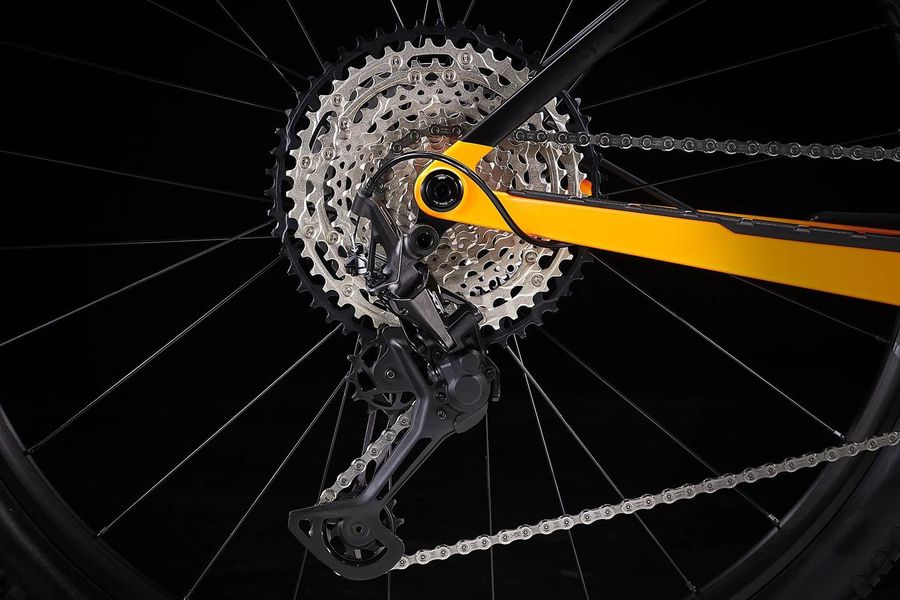

Rear derailleur | Shimano XT M8100, langer Käfig |
Shifters | Shimano SLX M7100, 12fach |

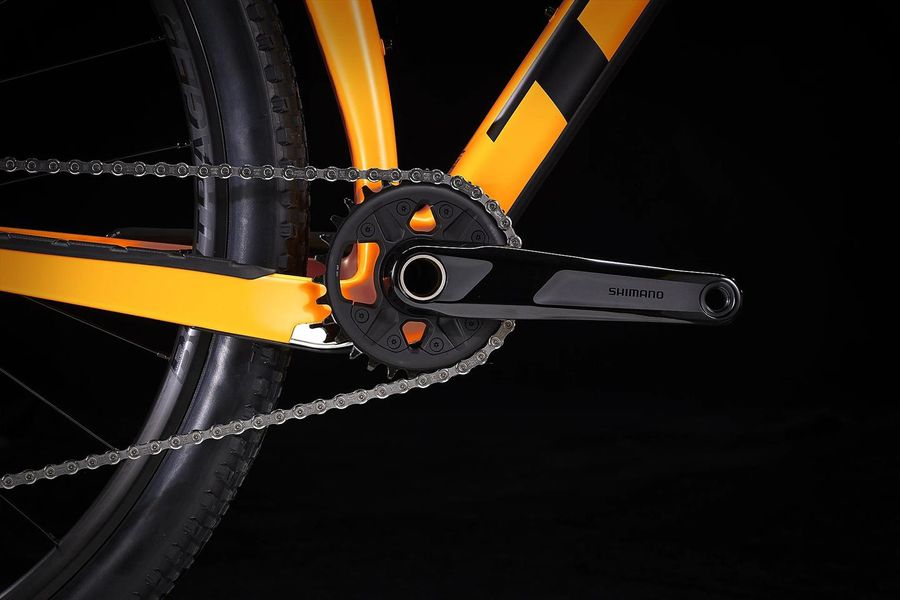

Crank | Shimano MT611, Stahlkettenblatt (30 Z.), Aluminium-Spider, 52 mm Kettenlinie |
Cassette | Shimano SLX M7100, 10-51 Z., 12fach |
Chain | Shimano Deore M6100 |
Front hub | Bontrager, gedichtetes Lager, Aluminiumachse, 6-Loch-Scheibenaufnahme, Boost110, 15 mm-Steckachse |
Rear hub | Bontrager, Aluminium, gedichtetes Lager, 6-Loch-Scheibenaufnahme, Rapid Drive 108, Shimano MicroSpline-Freilaufnabe, Boost148, 12 mm Steckachse |
Brake | Shimano RT56, 6-Loch-Scheibenaufnahme, 180 mm/160 mm |
Brake lever | Shimano MT4100 |
Brake caliper | Shimano MT410 |
Handlebar | Größe: S , M , ML: Bontrager Comp, Aluminium, 31,8 mm, 5 mm Rise, 720 mm Breite; Größe: L , XL: Bontrager Rhythm Comp, Aluminium, 31,8 mm, 15 mm Rise, 750 mm Breite; Größe: XXL: Bontrager Line, Aluminium, 35 mm, 15 mm Rise, 750 mm Breite |
Stem | Größe: S, M, ML, L, XL: Bontrager Rhythm Comp, 31,8 mm, Knock Block, 0 Grad; Größe: XXL: Bontrager Elite, 35 mm, 0 Grad, 90 mm Länge |
Saddle | Bontrager Arvada, Streben aus CrMo-Rohr, 138 mm Breite |
Seatpost | Bontrager Comp, 6061-Aluminium, 31,6 mm, 8 mm Versatz |
Max. total weight | 136 kg |
Annotation | Illustrations and specifications may vary. The manufacturer reserves the right to replace certain components with components of similar quality. |
Manufacturer Information | Trek Bicycle GmbH |
