Trek Madone SL 6 Gen 7

Item no. 68169
5,999.00 € *
The 7th generation Trek Madone SL 6 combines legendary speed, innovative technology and superior ride comfort. IsoFlow technology smooths out bumps in the road, while aerodynamic features, Shimano 105 Di2 shifting, carbon wheels and hidden cable routing ensure ultimate performance. A bike that is as fast as it looks.



OCLV Carbon




Bontrager R3 700 x 25 mm


Bontrager Aeolus Elite 50 Carbon


Shimano 105 Di2 (2x12)


Shimano 105 (160/160)

Trek Madone SL 6 Gen 7

The Madone SL 6 offers legendary speed, cutting-edge tech and unbelievable ride quality in a 500 Series OCLV Carbon package that keeps things light and quick for fast road rides and races. IsoFlow technology smooths out bumps in the road while lowering weight and offering an aerodynamic advantage over your competition, and a wealth of super-speedy features like our newest Kammtail aero shapes, an economical Shimano 105 Di2 electronic drivetrain, carbon wheels and invisible hose routing make for a race machine that feels just as fast as it looks.


  • A full OCLV Carbon frame paired with the magic of an electronic Shimano 105 Di2 drivetrain provides a premium ride
  • IsoFlow technology helps the seat mast and saddle flex for a more comfortable ride while also improving frame aerodynamics and shaving weight

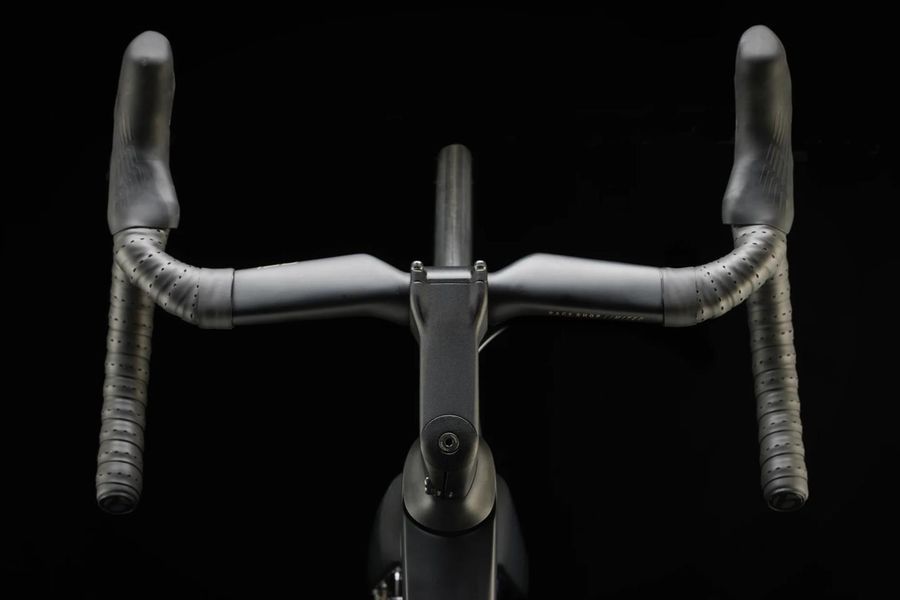

  • Flared Bontrager RSL Aero Handlebar is comfortable in the drops, improves aerodynamics and looks super sleek
  • Deep Bontrager Aelous Elite 50 carbon wheels cut through the wind and lighten your ride
  • A Shimano 105 Di2 drive provides affordable electronic performance

Additional Information

Bike category Road Bike
Brand Trek
Colour Matte Smoke Carbon
Model year 2024
Weight 8 kg
Wheel Size 28''

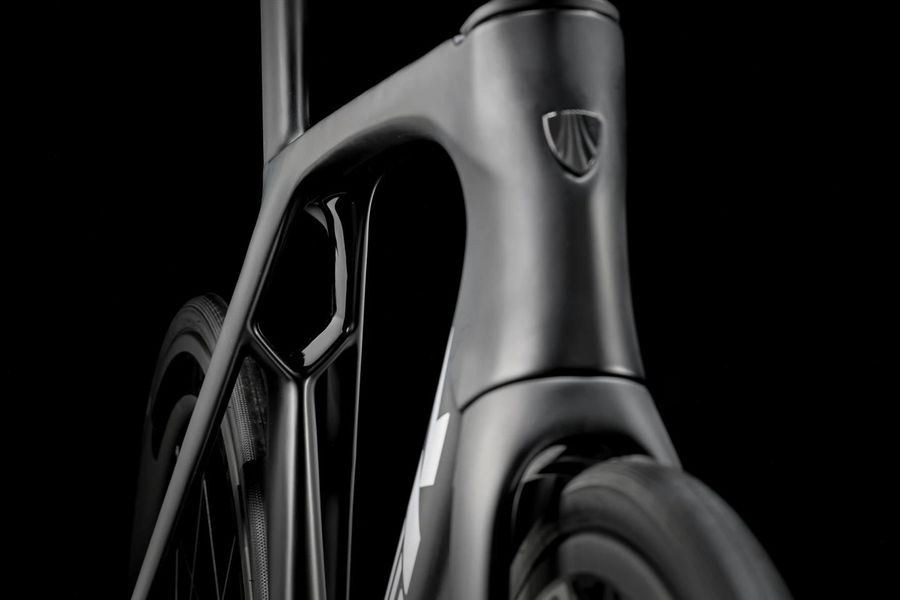

Frame 500 Series OCLV Carbon, KVF-Rohrprofil (Kammtail Virtual Foil), IsoFlow-Sitzrohr, unsichtbare Zugführung, aerodynamische 3S-Kettenführung, T47-Innenlager, Flat Mount-Scheibenbremsaufnahme, 142 x 12 mm Steckachse
Frame type Diamond
Fork Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100mm thru axle
Customization - only in store
Wheel set Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 100 x 12 mm / Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless-Ready, 50 mm Profilhöhe, Shimano 11fach-Freilaufnabe, 142 x 12 mm
Tires Bontrager R3 Hard-Case Lite, Aramidwulstkern, 120 TPI, 700 x 25 mm
Shift / brake unit Shimano 105 R7170 Di2, 12fach
Front derailleur Shimano 105 R7150 Di2, Anlötversion, Down-Swing
Rear derailleur Shimano 105 R7150 Di2, 34T max cog

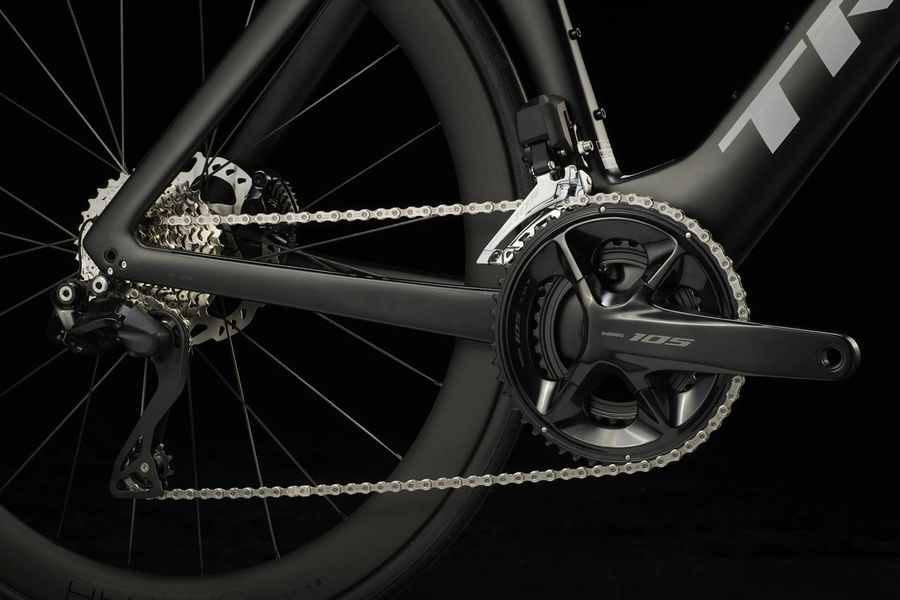

Crank Shimano 105 R7100, 50/34 Z., Kurbellänge in mm: 170 (50/52cm), 172,5 (56cm) , 175 (58/60/62cm)
Cassette Shimano 105 7101, 11-34 Z., 12fach
Chain rings 50/34t
Chain Shimano SLX M7100, 12fach
Brake Shimano CL800, Center Lock, 160 mm
Brake caliper Shimano 105 R7170 2-Piston

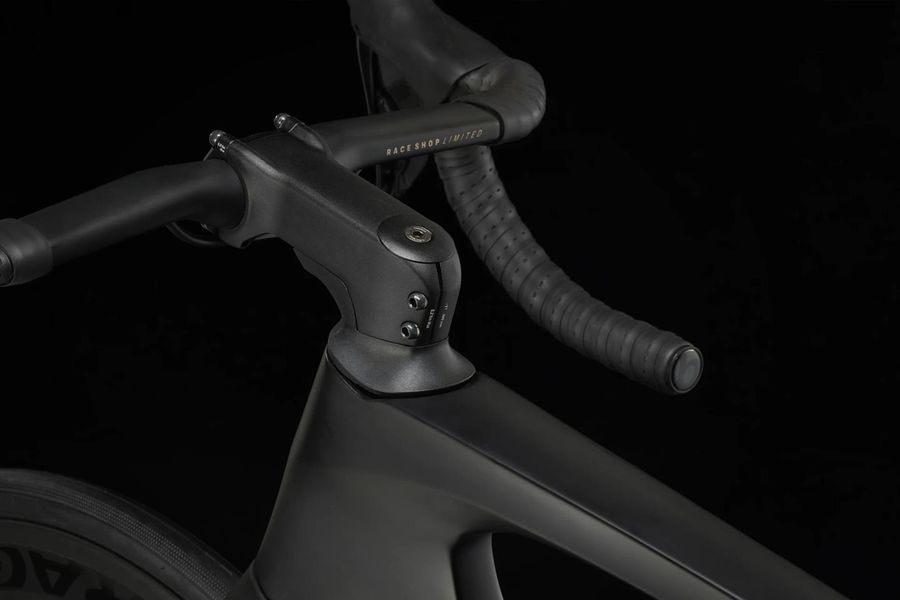

Handlebar Bontrager RSL Aero, OCLV Carbon, 31,8 mm Klemmdurchmesser, Di2-Kabelführung, 80 mm Reach, 124 mm Drop, 41 cm Oberlenkerbreite, 42cm breite (54/56cm), 44cm (58/60/62cm)
Grips Bontrager Supertack Perf Lenkerband
Stem Trek RCS Pro, -7 Grad, 100cm (56,58cm), 110cm (60/62cm)
Saddle Bontrager Aeolus Comp, Stahlstreben, 145 mm Breite
Seatpost Madone aero carbon seatpost, integrated light mount, 0mm offset, long length
Charger Mit Ladekabel
Annotation Illustrations and specifications may vary. The manufacturer reserves the right to replace certain components with components of similar quality.
