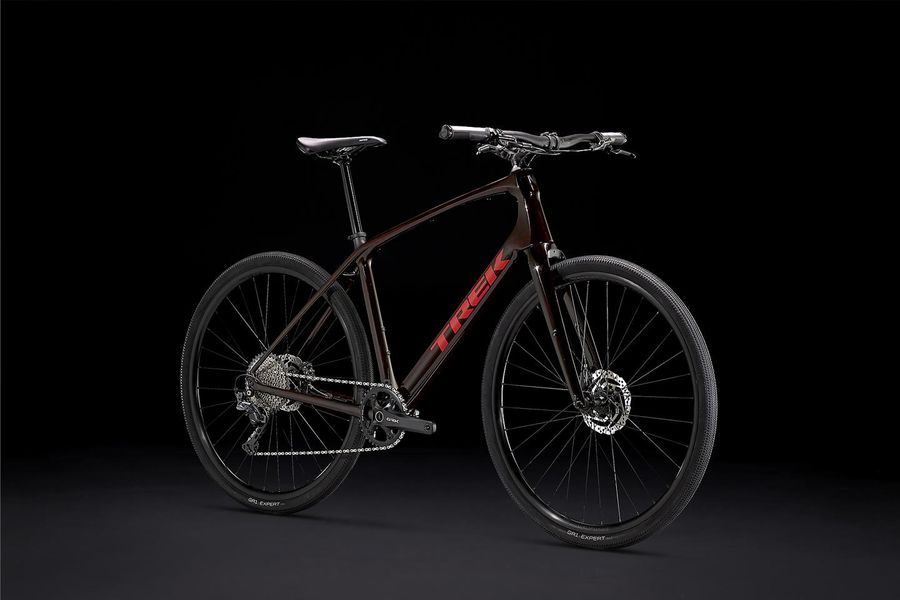

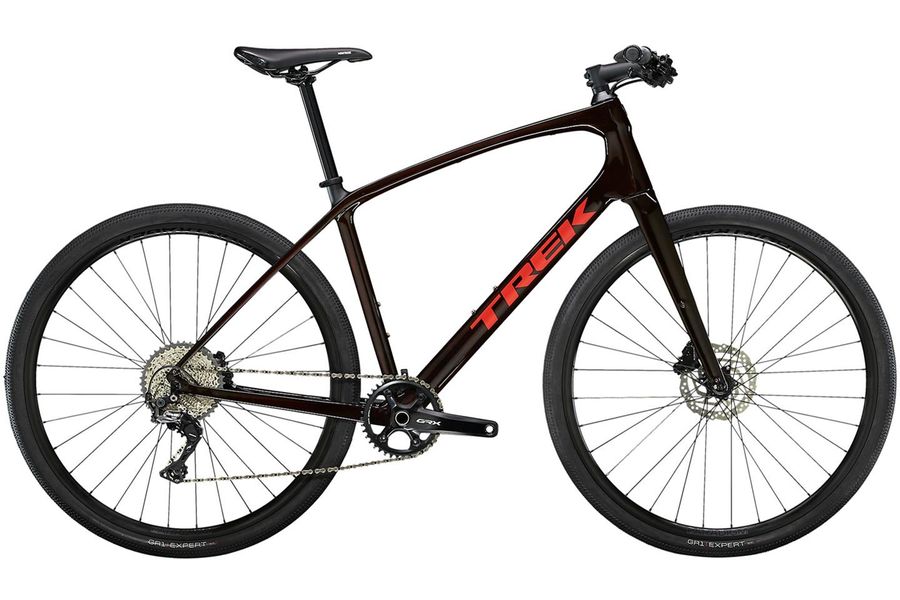

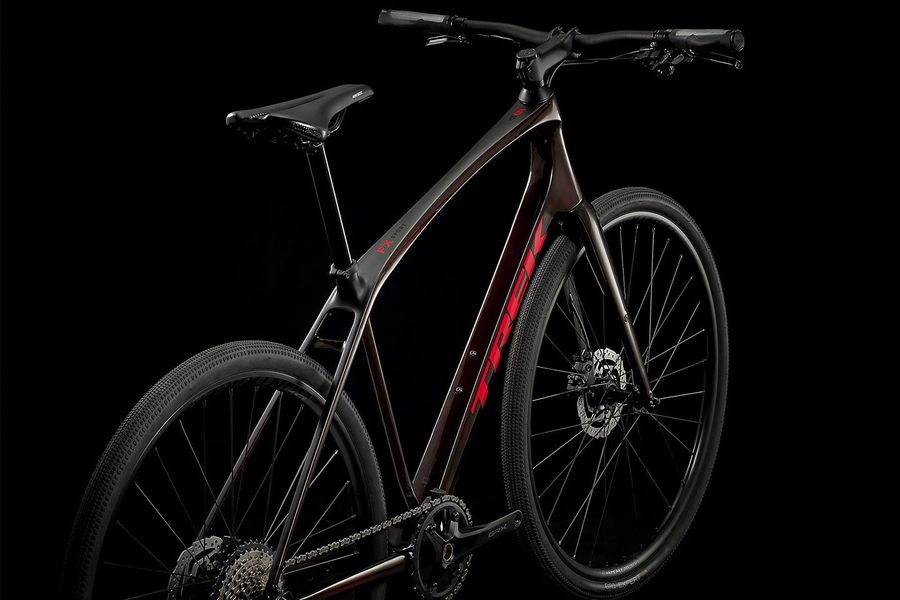

Trek FX Sport 5

Item no. 62780
2,699.00 € *
Size
The FX Sport 5 is a carbon fitness bike for those who want to combine the speed of a lightweight road bike with the comfort and control of a flat bar bike. Its high-quality drivetrain, hydraulic disc brakes and Tubeless Ready wheels make it perfect for solo training laps, fast group rides and a variety of other uses.

Highlights

Frame

400 Series OCLV Carbon

Fork

Carbon

Tires

Bontrager GR1 Expert, 700 x 40C

Wheelset

28''

Shifter

Shimano GRX RX812 (1x11)

Brakes

Shimano MT201/RT10 (160/160)

Trek FX Sport 5 - The fast carbon hybrid fitness bike with upgrades

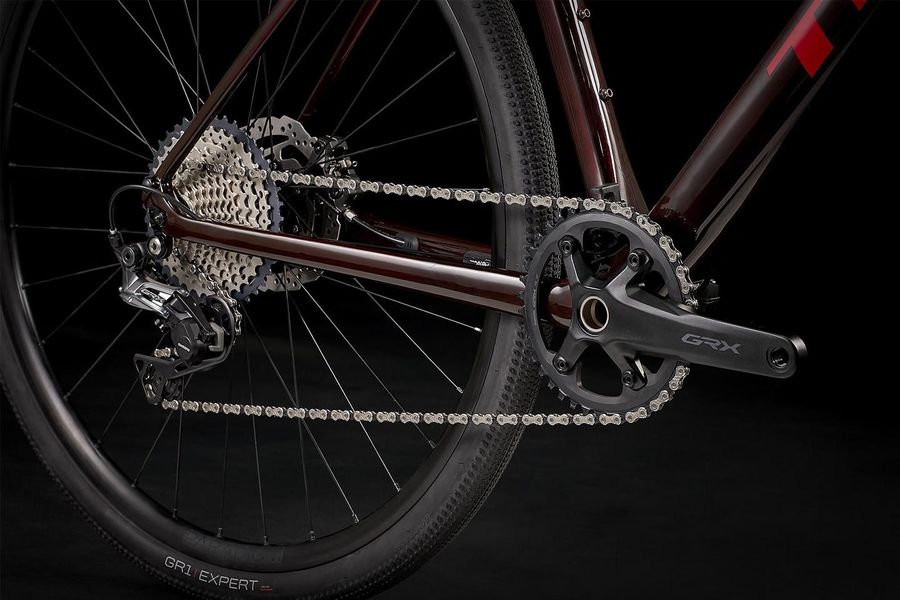

The Trek FX Sport 5 belongs to a new generation of sporty trekking bikes that are similar in character to a road bike in many respects. However, because its range of use is more versatile, it is also referred to as a hybrid bike. The light, slim frame, which is even made of carbon on the FX Sport 5, is derived from the road bike. However, the seating position on the FX is noticeably more comfortable, which is not least due to the straight handlebars. This is also equipped with the new, vibration-damping IsoZone material. Rolling comfort is provided by 40 mm wide tires, which can also tolerate the one or other gravel section. Discreetly integrated threaded eyelets on the frame significantly expand the range of use. For example, the FX Sport 5 can be converted into a fast commuter bike with a rear rack and mudguards. Also practical is the Blendr system developed by Trek to attach lights, bike computers, smartphones and other accessories to the stem in no time at all. No more rickety screw clamps or ugly cable ties. Main upgrade over the FX Sport 4 is a higher quality drivetrain with Shimano GRX components. The GRX group was developed specifically for gravel bikes. For example, the GRX rear derailleur has an integrated chain stabilizer that ensures smooth gear changes even under extreme conditions.

Trek OCLV Carbon - The benchmark in lightweight construction

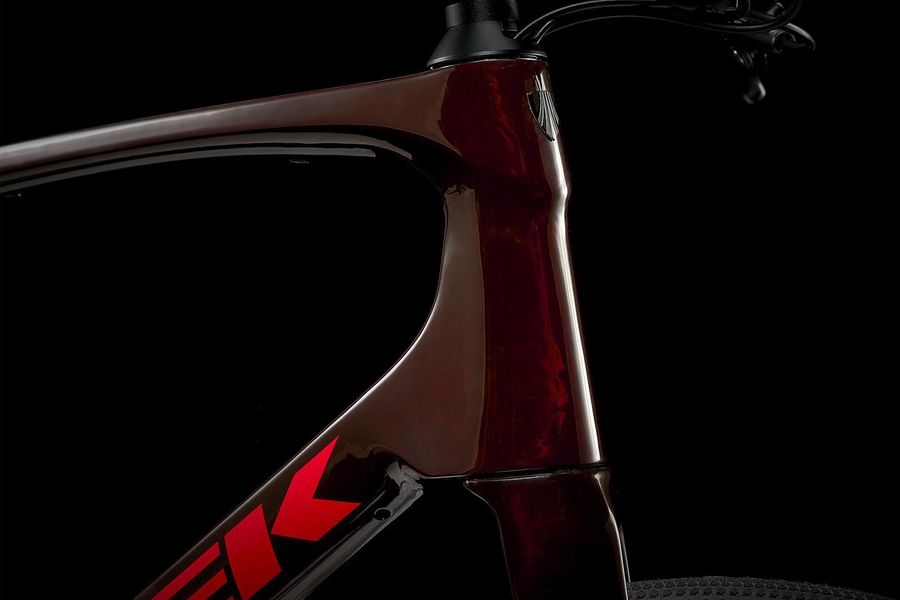

The OCLV Carbon developed by Trek has been a household name on the scene for over 25 years. There are now different series for the bike classes, from mountain bike to road bike. The FX 5 Sport uses the 400 Series OCLV, which offers maximum performance at an affordable price. However, it is not the lower weight alone that distinguishes a carbon frame from an aluminum frame. Rather, carbon fibers offer better opportunities to improve the stiffness at neuralgic points quite specifically. Or in contrast to increase the flex at other points for more riding comfort. In general, a carbon frame is able to soften peaks of violent impacts and reduce vibrations. This makes this material so ideal for bikes.

Additional Information

Bike category Fitness Bike
Brand Trek
Model year 2023, 2024
Colour Red Carbon Smoke
Weight 10,1 kg
Wheel Size 28''
Frame 400 Series OCLV Carbon, interne Zugführung, 3S-Kettenführung, DuoTrap S-kompatibel, Schutzblechösen, Flat Mount-Scheibenbremsaufnahme, 135 x 5 mm ThruSkew
Frame type Diamond
Fork Carbon, hidden fender mounts, flat mount disc, 5x100mm thru-skew
Customization - only in store Anpassen der optimalen Sitzposition entsprechend deiner Anatomie
Rims Bontrager Paradigm, Tubeless Ready, 32-Loch, 21 mm Innenweite, Presta-Ventil
Cassette Shimano SLX M7000, 11-42 Z., 11fach
Front hub Formula CL-51, Aluminium, 100 x 5 mm Schnellspannachse
Rear hub Formula CL-52, Aluminium, 135 x 5 mm Schnellspannachse

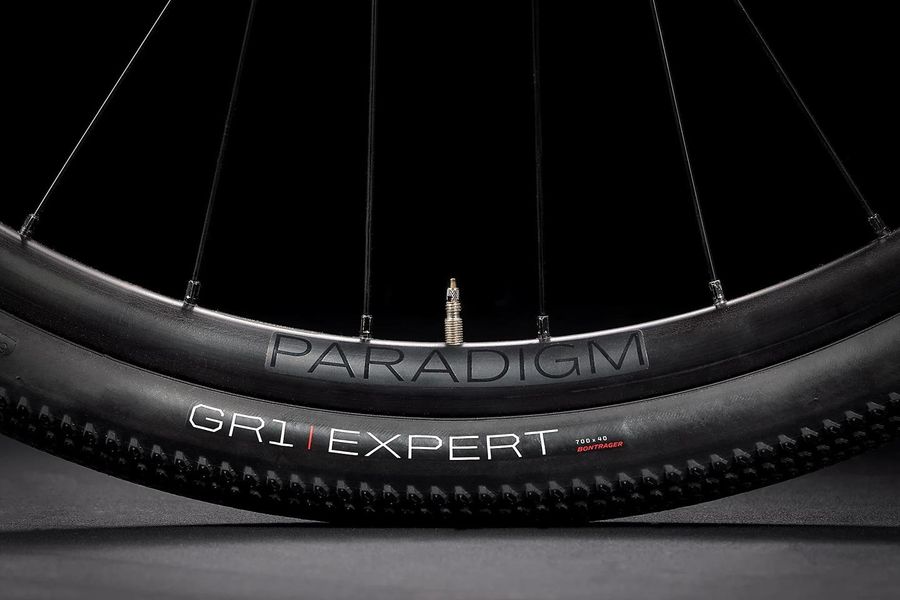

Tires Bontrager GR1 Expert, Hard-Case Lite, Drahtwulstkern, 60 TPI, 700 x 40C
Shifters Shimano RS700, 11fach
Rear derailleur Shimano GRX RX812, langer Käfig, max. 42 Z. an größtem Ritzel
Crank Shimano GRX RX600, 40 Z
Chain rings 40T
Chain Shimano 105 HG601, 11fach
Brake Shimano RT10, Center Lock-Scheibenaufnahme, 160 mm
Brake lever Shimano MT201
Brake caliper Shimano UR300

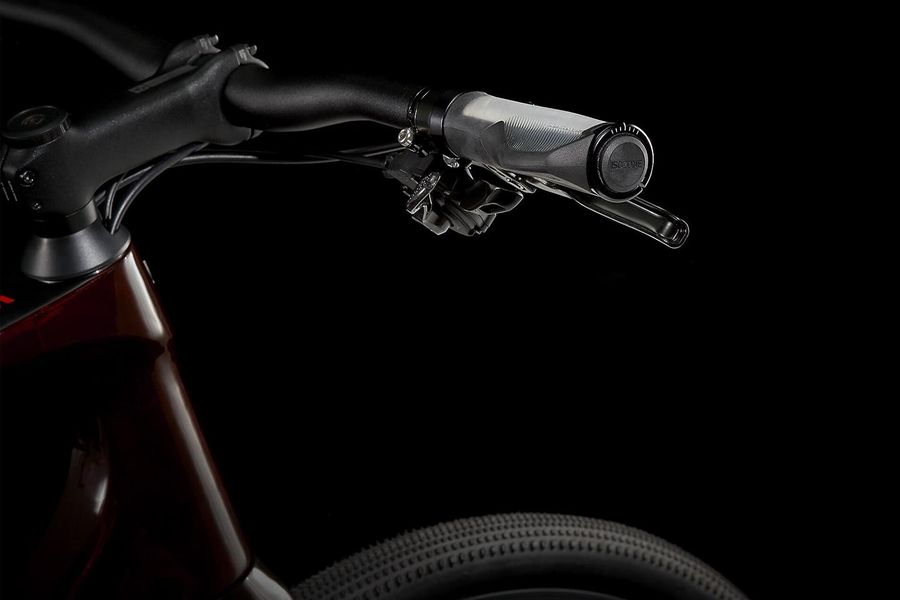

Handlebar Bontrager Satellite Plus IsoZone, Aluminium, 31,8 mm, 15 mm Rise
Grips Bontrager Satellite Plus IsoZone, Schraubklemmung, ergonomisch
Saddle Bontrager Montrose Comp, Stahlstreben, 138 mm Breite
Seatpost Bontrager Comp, 6061-Aluminium, 27,2 mm, 8 mm Versatz, 330 mm Länge
Annotation Illustrations and specifications may vary. The manufacturer reserves the right to replace certain components with components of similar quality.
