Trek Fuel EX 8 Gen 5 (2023)

Item no. 62727
3,799.00 € *
Size
The top model of the Fuel aluminum series goes to the limit with the best components. The EX 8 is a strong climbing all-rounder that loves the trails especially. Thanks to the excellent Fox chassis, however, you will also be surprised by the strong downhill performance. On the other features swear even professionals: gears and brakes from the Shimano XT group, fast Tubeless-Ready wheels and Vario seatpost from the factory.

Highlights

Frame

Alpha Platinum Aluminium

Fork

Fox Rhythm 34, Float EVOL-Luftfeder (140 mm)

Tires

Bontrager XR4 Team Issue, 29 x 2.60

Shifter

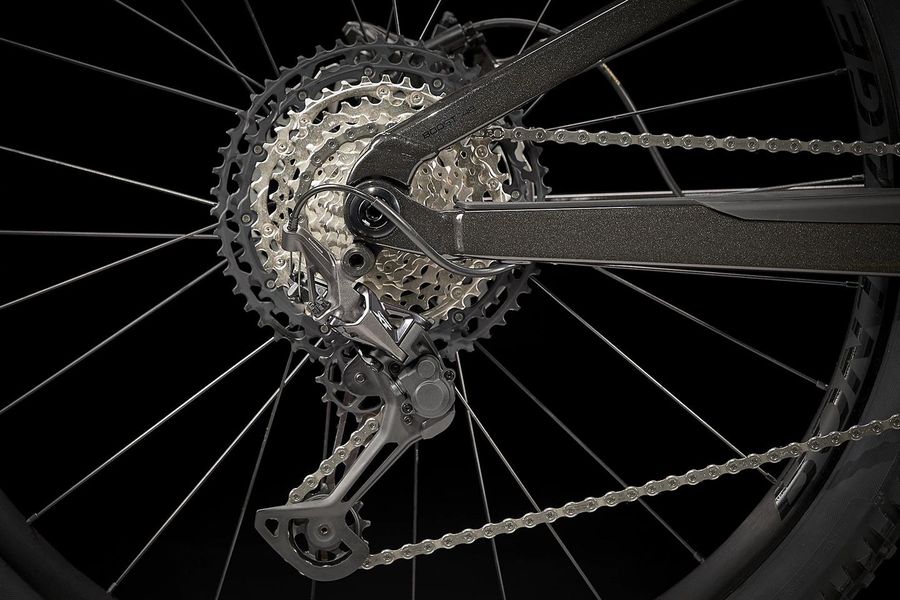

Shimano XT (1x12)

Brakes

Shimano MT4100/RT66 (203/203)

Rear Shock

FOX Performance Float EVOL

Trek Fuel EX 8 - High-end components deliver superior trail performance

Can you feel the difference on the trail between top components and inexpensive parts when you test them against each other on the same frame? We'd say: Hardly on a single component, but definitely in total. With the Fuel EX 8, Trek has consistently equipped its outstanding Alpha Platinum frame, which is already used in the Fuel EX 5 and 7, with high-quality components. The chassis benefits especially from the sensitive Fox Rhythm 34 suspension fork, which is versatile adjustable and also very light. It works perfectly together with the Fox Performance Float rear shock, which was specially tuned by the Trek Suspension Lab. With the spring elements, the suspension works even more sensitive and is above all even more individually tunable to your wishes. Climbing strong 1 x 12 drive with up to 51 teeth: To date, the precision of the Shimano XT shifting is unsurpassed. And on the downhill, the retractable seatpost and Shimano disc brakes with 4 pistons provide maximum safety and control. Lightweight Bontrager Tubeless-Ready wheels make the Fuel EX 8 one of the best all-rounders on the market.

Trek - Aluminum frame construction with tradition

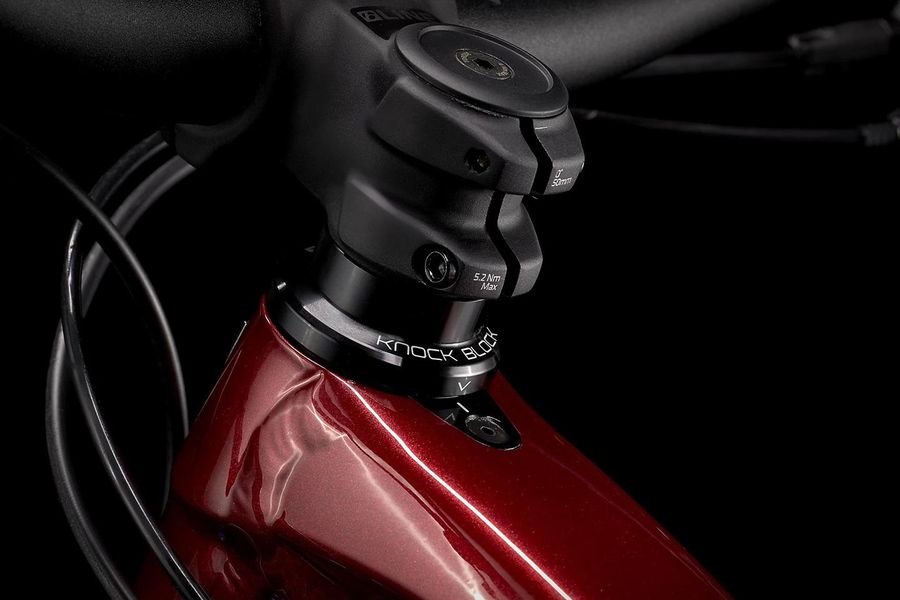

The US manufacturer Trek is one of the pioneers in the processing of aluminum frames since the eighties. You can therefore rely on a huge know-how. And of course, a frame like the Fuel is constantly being developed over the generations. The Fuel EX 8 uses the high-quality Alpha Platinum aluminum. First-class processed and lightweight. In addition, there are harmonious details such as down tube protection, internally routed cables and a tapered head tube. The Knock Block steering stop prevents the frame from being damaged in the event of a fall. With the help of the Mino Link, a rotatable mini eccentric on the rear rocker, the steering angle can be changed by 0.5 degrees. This influences the driving behavior in the direction of maneuverability or smoothness. Clever: To ensure that all riders can enjoy the optimum seating position and geometry, Trek matches the wheel diameter to the frame size. That's why the XS frame comes with 27.5-inch wheels and the higher models (S to XL) with 29-inch. In addition, the smaller frame sizes have a downward-curved top tube, resulting in a particularly low standover height.

Additional Information

Bike category Full Suspension MTB
Brand Trek
Colour Rage Red to Dnister Black Fade
Weight 13,9 kg
Customization - only in store Anpassen der optimalen Sitzposition entsprechend deiner Anatomie
Configuration - available in our stores Individuelles Fahrwerks Setup durch geschulte Mitarbeiter
Frame Alpha Platinum Aluminium, konisches Steuerrohr, Knock Block, interne Control Freak-Zugführung, Unterrohrschutz, ISCG 05, Magnesiumumlenkhebel, Mino Link, ABP, Boost148, 130 mm Federweg
Frame type Fully
Fork Fox Rhythm 34, Float EVOL-Luftfeder, GRIP-Dämpfung, konischer Gabelschaft, 44 mm Vorbiegung, Boost110, 15-mm-Kabolt-Achse, 140 mm Federweg
Rear Shocks FOX Performance Float EVOL, RE:aktiv-Dämpfung mit 3 Positionen, vom Trek Suspension Lab abgestimmt
Wheel Size 27,5'', 29''

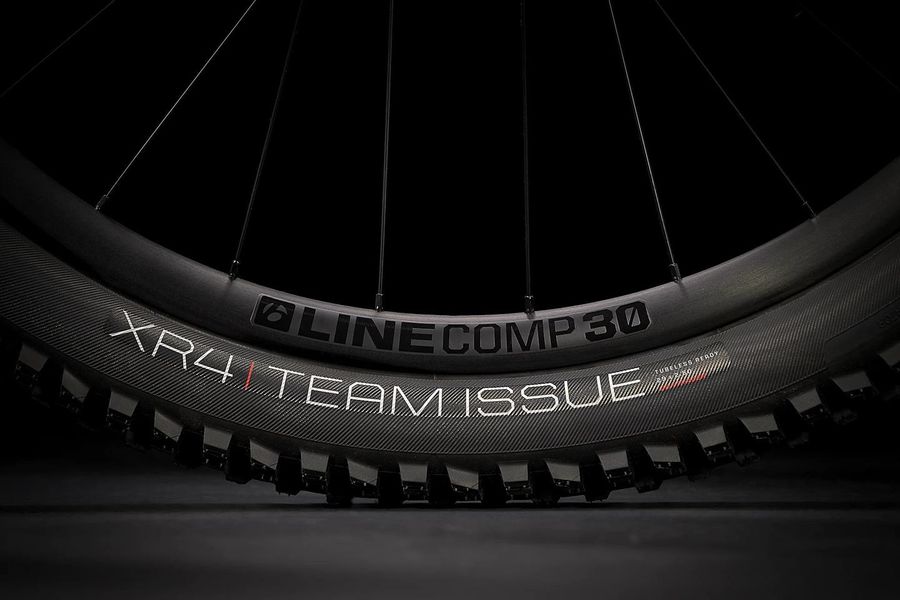

Tires Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength-Flankenschutz, Aramidwulstkern, 120 TPI, 29 x 2.60
Rims Bontrager Line Comp 30, Tubeless Ready
Rear derailleur Shimano XT M8100, langer Käfig
Shifters Shimano XT M8100, 12fach
Cassette Shimano XT M8100, 10-51 Z., 12fach
Chain Shimano SLX M7100, 12fach
Front hub Bontrager, Aluminium, gedichtetes Lager, Aluminiumachse, 6-Loch-Scheibenaufnahme, Boost110, 15-mm-Steckachse
Rear hub Bontrager, Aluminium, gedichtetes Lager, Aluminiumachse, 6-Loch-Scheibenaufnahme, Shimano MicroSpline-Freilaufnabe, Boost148, 12-mm-Steckachse
Brake Shimano hydraulische 4-Kolben-Scheibenbremse, Shimano RT66, 6-Loch-Scheibenaufnahme, 203 mm
Brake lever Shimano MT4100
Brake caliper Shimano MT420
Handlebar Bontrager Line, Aluminium, 35 mm, 27,5 mm Rise
Grips Bontrager XR Trail Elite, Nylonklemme
Stem Bontrager Line, 35 mm, Knock Block, 0 Grad
Saddle Bontrager Arvada, Streben aus CrMo-Rohr, 138 mm Breite
Seatpost Bontrager Line Dropper, interne Zugführung, 31,6 mm,
Annotation Illustrations and specifications may vary. The manufacturer reserves the right to replace certain components with components of similar quality.
