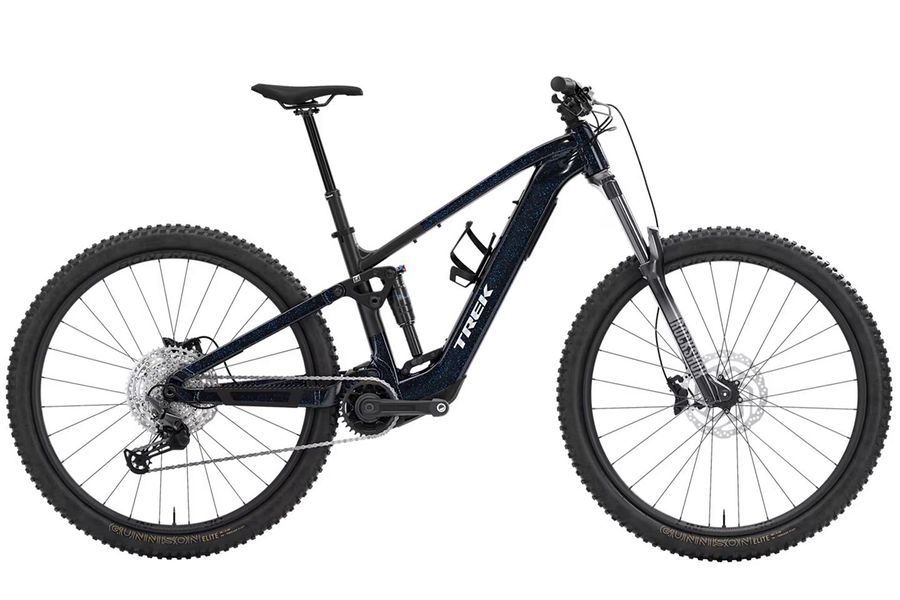

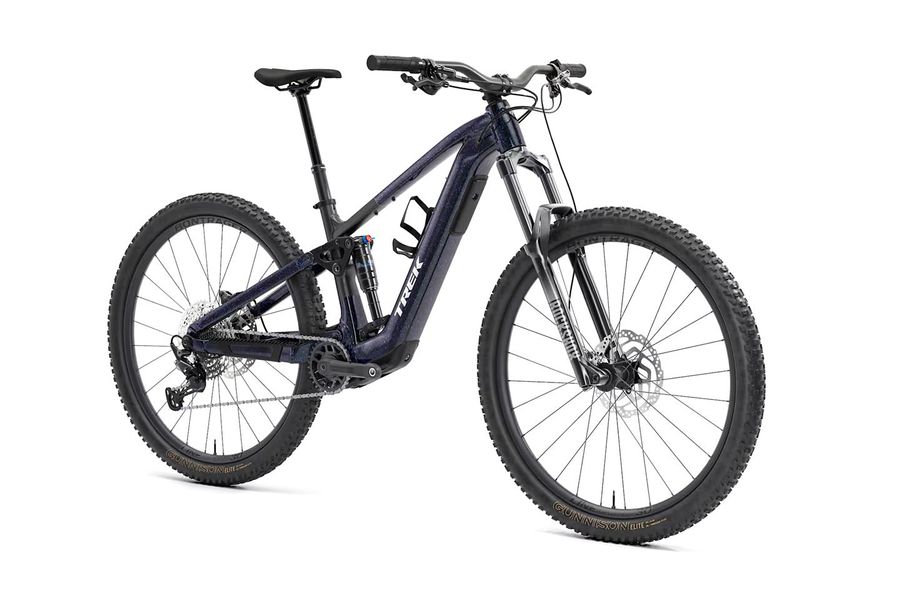

Trek Fuel+ EX 5 Gen 2
The Fuel+ EX 5 is a quiet and powerful e-mountainbike that will faithfully accompany you on a wide variety of trails. It is based on a frame made from Alpha NEXT Platinum aluminium and is pushed forward by a compact, naturally supportive TQ HPR60 motor, while a 150 mm suspension fork from RockShox and a 145 mm shock from X-Fusion confidently parry any trail bumps. At the same time, the Shimano Deore drivetrain offers a wide gear ratio for even steep climbs, while the hydraulic Shimano M4100 4-piston disc brakes provide plenty of stopping power on the way down.
Highlights
Frame
Aluminium
Fork
RockShox Recon Silver RL (150mm)
Shifter
Shimano Deore (1x12)
Brakes
Shimano RT64 (203/203)
Rear Shock
X-Fusion Pro 2
Drive Unit
TQ-HPR 60 (60nm) / TQ 580Wh
Additional Information
| Bike category | E-MTB Full Suspension |
|---|---|
| Brand | Trek |
| Model year | 2026 |
| Colour | Trek Black/Purple Flip Splatter |
| Weight | 21,9 kg |
| Customization - only in store | |
| Configuration - available in our stores | |
| Frame | Alpha NEXT Platinum Aluminium, herausnehmbarer Akku, verstellbares Hebelverhältnis, geführte interne Zug- und Leitungsverlegung, austauschbarer Aluminiumumlenkhebel, austauschbare untere Dämpferaufnahme, Unterrohrschutz, Shuttle-Protektor, ABP, UDH, Boost |
| Frame type | Fully |
| Fork | RockShox Recon Silver RL, Solo Air Luftfeder, Motion Control Dämpfung, Lockout, konischer Gabelschaft, 42 mm Versatz, Boost110, Maxle Stealth Achse, 150 mm Federweg |
| Rear Shocks | X-Fusion Pro 2, 2-Positionen-Dämpfung, 205 x 60 mm |
| Wheel Size | 27,5+, 29'' |
| Further details | Sizesplit: S (27,5") / M, L, XL (29") |
| Tires | Bontrager Gunnison Elite XR, Tubeless-Ready, Drahtwulstkern, 60 TPI, 29 (S:27,5/29) x 2.40 |
| Rims | Bontrager Line TLR 30, Tubeless Ready |
| Rear derailleur | Shimano Deore M6100, langer Käfig |
| Shifters | Shimano Deore M6100, 12fach |
| Crank | e*thirteen e*spec Plus, 160 mm Kurbelarmlänge |
| Chain rings | E*Thirteen Helix Core Steel 32t steel, 55mm chainline |
| Cassette | Shimano Deore M6100, 10-51 Z., 12fach |
| Chain | Shimano Deore M6100, 12fach |
| Front hub | Shimano TC500, Aluminium, Center Lock-Scheibenaufnahme, 110 x 15 mm Steckachse |
| Rear hub | Shimano TC500, Aluminium, Center Lock-Scheibenaufnahme, 148 x 12 mm Steckachse |
| Brake | Shimano hydraulische 4-Kolben-Scheibenbremse, Shimano RT64, Centerlock-Scheibenaufnahme, 203 mm |
| Brake lever | Shimano MT4100 |
| Brake caliper | Shimano MT420 |
| E-Engine | TQ HPR60, 60 Nm, 300 W max. Nenndauerleistung, 350 W Maximalleistung |
| Battery pack | TQ 580 Wh |
| Display | TQ LED-Display mit Bluetooth- & ANT+-Konnektivität |
| Charger | TQ-Ladegerät, 4 A |
| Handlebar | Bontrager Comp, Aluminium, 31,8 mm, 40 mm Rise, 780 mm Breite |
| Grips | Trek Line Comp, Nylonschraubklemmung |
| Stem | Bontrager Comp, 31,8 mm, 7 Grad, 35 mm Länge |
| Headset | ZS Steuersatz |
| Saddle | Bontrager Verse Short, Edelstahlstreben |
| Seatpost | TranzX JD-YSI34, interne Zugführung, 34,9 mm |
| Max. total weight | 136 kg |
| Annotation | The illustration may differ. The manufacturer reserves the right to replace certain components with components of equivalent quality. |
| Manufacturer Information | Trek Bicycle GmbH |
