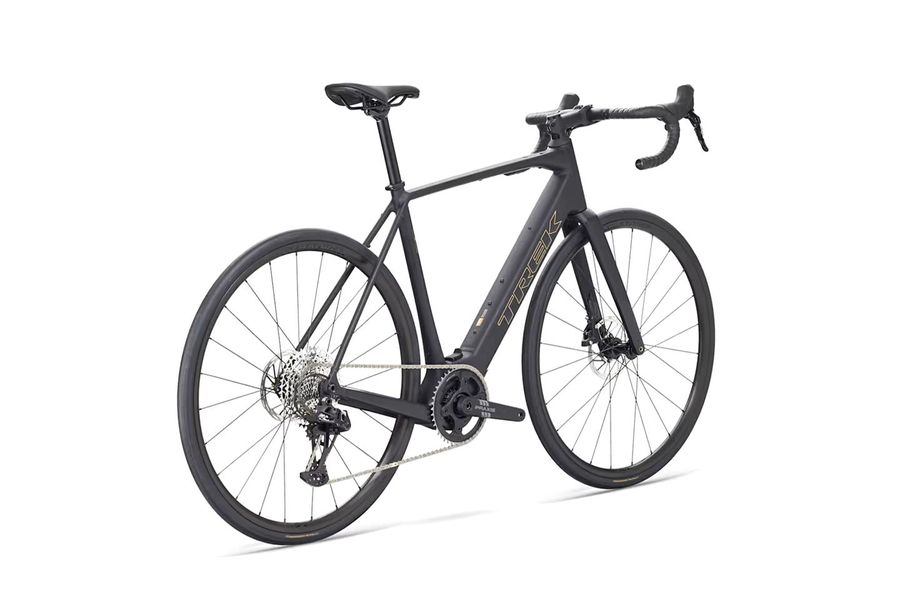

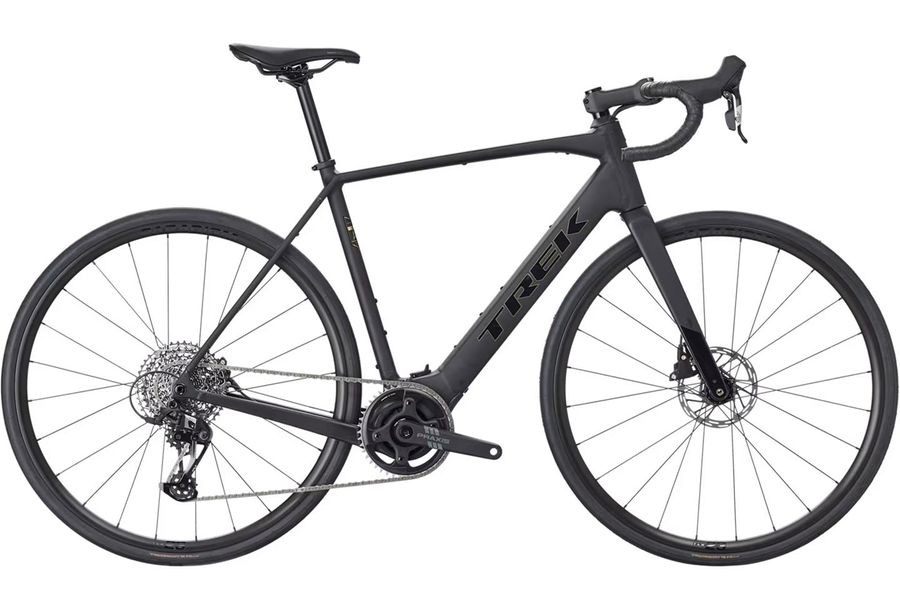

Trek Domane+ ALR 5
The Domane+ ALR 5 is an e-road bike with an aluminium frame and smooth, quiet and natural drive assistance. The powerful TQ HPR60 motor provides support on extended tours and long climbs and is complemented by precise, smooth SRAM Apex 12-speed shifting.
Highlights
Frame
Aluminium
Fork
Carbon
Tires
Bontrager Kwaremont Pro GR, 700x32 mm
Shifter
SRAM Apex XPLR (1x12)
Brakes
SRAM Apex D1 (160/160)
Drive Unit
TQ-HPR 60 (60nm) / TQ 360Wh
Additional Information
| General | |
| Bike category | Road E-Bike |
|---|---|
| Model year | 2026 |
| Colour | Matte Dark Star |
| Weight | 14,4 kg |
| Max. total weight | 125 kg |
| Fahrraddetails | |
| Price | Price in branch store might be lower. (info@rabe-bike.de / +4989 125 01 01 01) |
| Frame | |
| Frame | 300 Series Alpha Aluminium, TQ-Antriebssystem, verborgene Schutzblechösen, Gepäckträgerösen, integrierte Aufnahme für Rahmentasche, interne Zugführung, Flat Mount Scheibenbremsaufnahme, integrierte Kettenführung, UDH, abgeschrägte 142 x 12 mm Steckachse |
| Fork | Domane+, Carbon, konischer Carbongabelschaft, Schutzblechösen, Flat Mount Scheibenbremsaufnahme, 12 x 100 mm Steckachse |
| Frame type | Diamond |
| Drive | |
| Shifters | SRAM Apex, 12fach |
| Rear derailleur | SRAM Apex XPLR, max. 44 Z. an größtem Ritzel |

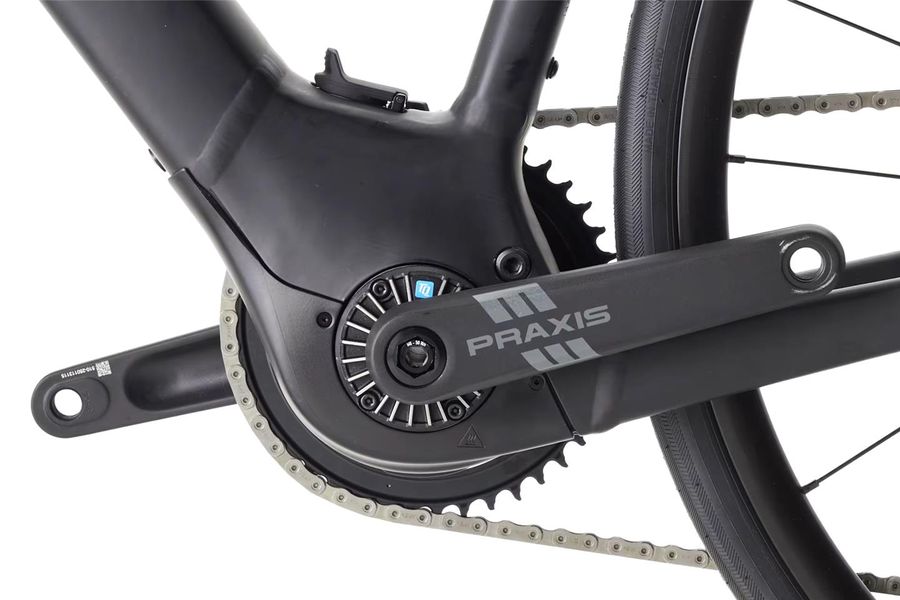

| Crank | Praxis Aluminium |
| Cassette | SRAM XPLR PG-1231, 11-44 Z, 12fach |
| Chain | SRAM Apex, 12fach |
| Ebike | |
| Battery pack | TQ 360 Wh |
| E-Engine | TQ HPR60, 60 Nm, 300 W max. Nenndauerleistung, 350 W Maximalleistung |

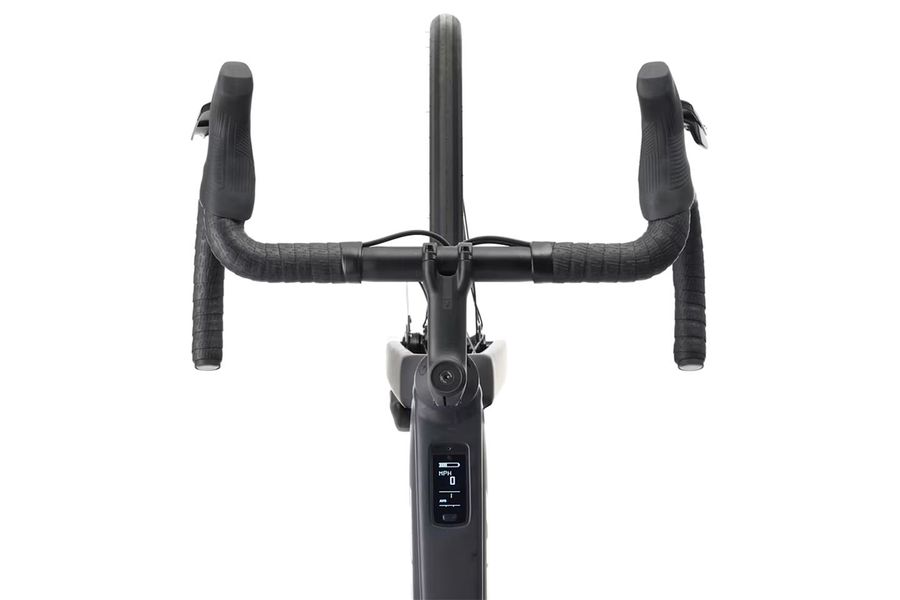

| Display | TQ LED-Display mit Bluetooth- & ANT+-Konnektivität |
| Charger | TQ-Ladegerät, 4 A |
| Brakes | |
| Brake | SRAM Apex D1 hydraulic disc, flat mount, SRAM Paceline, Center Lock Scheibenaufnahme, abgerundet, 160 mm |
| Brake lever | SRAM Apex, 12 speed |
| Wheels | |
| Rims | Bontrager Paradigm 23, Tubeless-Ready, 24-Loch, 23 mm Innenweite, Presta-Ventil |
| Tires | Bontrager Kwaremont Pro GR, Tubeless-Ready, faltbarer Wulstkern, Dual Compound Gummimischung, 120 TPI, 700x32 mm |
| Wheel Size | 28'' |
| Front hub | Bontrager, Aluminium, gedichtetes Lager, Center Lock-Scheibenaufnahme, 100 x 12 mm-Steckachse |
| Rear hub | Bontrager, Aluminium, gedichtetes Lager, Center Lock-Scheibenaufnahme, 11fach-Freilaufnabe von Shimano, 142 x 12 mm-Steckachse |
| Cockpit | |
| Handlebar | Bontrager Comp, Aluminium, 31,8 mm Klemmdurchmesser, 80 mm Reach |
| Stem | Bontrager Elite, 31,8 mm Klemmdurchmesser, Blendr-kompatibel, 7 Grad, |
| Grips | Trek EcoTack |
| Seat | |
| Saddle | Verse Short Comp, Stahlstreben, 145 mm Breite |
| Seatpost | Bontrager, Aluminium, 27,2 mm, 12 mm Versatz, 330 mm Länge |
| Other | |
| Customization - only in store | |
| Annotation | The illustration may differ. The manufacturer reserves the right to replace certain components with components of equivalent quality. |
| Manufacturer Information | |
| Manufacturer Information | Trek Bicycle GmbH |
| Product Safety Documents | |
