Trek Domane AL 5 Gen 4
The Domane AL 5 is a smooth-riding road bike for anyone looking for outstanding performance combined with a high level of comfort. The Alpha Aluminium frame is fitted with a Shimano 105 12-speed drivetrain, offering precise gear changes and a wide gear range. The endurance geometry ensures a high level of comfort even over long distances, whilst the generous tyre clearance and top tube eyelets provide additional versatility for light gravel riding, carrying kit and the daily commute to work.
Highlights
Frame
Aluminium
Fork
Carbon
Tires
Bontrager Kwaremont Comp, 700 x 32 mm
Wheelset
Bontrager Paradigm 23
Shifter
Shimano 105 (2x12)
Brakes
Shimano CL700 (160/160)
Additional Information
| General | |
| Bike category | Road Bike |
|---|---|
| Model year | 2027 |
| Colour | Matte Dark Star Black |
| Weight | 9,8 kg |
| Max. total weight | 125 kg |
| Frame | |
| Frame | 100 Series Alpha Aluminium, konisches Steuerrohr, interne-Zugführung, Schutzblechösen, Flat Mount-Scheibenbremsaufnahme, UDH, 142 x 12 mm Steckachse |
| Fork | Domane AL, Carbon, konischer Carbongabelschaft, interne Bremszugführung, Schutzblechösen, Flat Mount-Scheibenbremsaufnahme, 12 x 100 mm Steckachse |
| Frame type | Diamond |

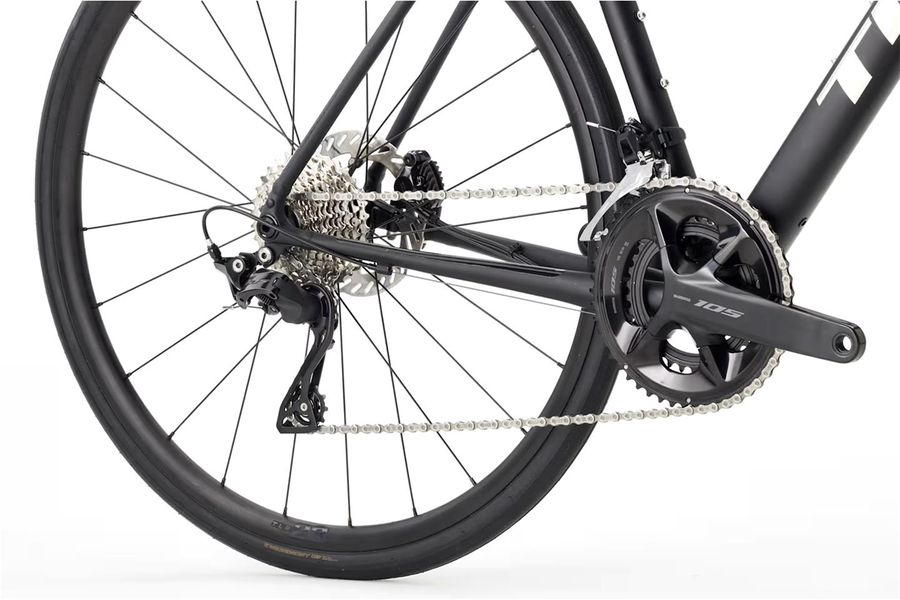

| Drive | |
| Shifters | Shimano 105 R7120, 12fach |
| Rear derailleur | Shimano 105 R7100, max. 36 Z. an größtem Ritzel |
| Front derailleur | Shimano 105 R7100, 31,8 mm Klemmdurchmesser, Down Swing |
| Crank | Shimano 105 R7100, 50/34 |
| Cassette | Shimano 105 7101, 11-34 Z., 12fach |
| Chain | Shimano SLX M7100, 12fach |
| Brakes | |
| Brake | Shimano CL700, Center Lock Scheibenaufnahme, 160 mm |
| Wheels | |
| Rims | Bontrager Paradigm 23, Tubeless-Ready, 24-Loch, 23 mm Innenweite, Presta-Ventil |
| Tires | Bontrager Kwaremont Comp, Hard-Case Lite, Drahtwulstkern, 60 TPI, 700 x 32 mm |
| Wheel Size | 28'' |
| Front hub | Bontrager, Aluminium, gedichtetes Lager, Center Lock-Scheibenaufnahme, 11fach-Freilaufnabe von Shimano, 142 x 12 mm-Steckachse |
| Rear hub | Bontrager, Aluminium, gedichtetes Lager, Center Lock Scheibenaufnahme, 100 x 12 mm Steckachse |
| Cockpit | |
| Handlebar | Bontrager Comp, Aluminium, 31,8 mm Klemmdurchmesser, 80 mm Reach, 121 mm Drop |
| Stem | Bontrager Elite, 31,8 mm Klemmdurchmesser, Blendr-kompatibel, 7 Grad |
| Grips | Trek EcoTack |
| Seat | |
| Saddle | Verse Short Comp, Stahlstreben, 145 mm Breite |
| Seatpost | Bontrager Comp, 6061-Aluminium, 27,2 mm, 8 mm Versatz |
| Other | |
| Customization - only in store | |
| Annotation | The illustration may differ. The manufacturer reserves the right to replace certain components with components of equivalent quality. |
| Manufacturer Information | |
| Manufacturer Information | Trek Bicycle GmbH |
| Product Safety Documents | |
