100 Series Alpha Aluminium
Carbon
Bontrager R1 Hard-Case Lite, 700 x 32C
Bontrager Affinity Disc
Shimano 105 (2x11)
Shimano 105 (160/160)

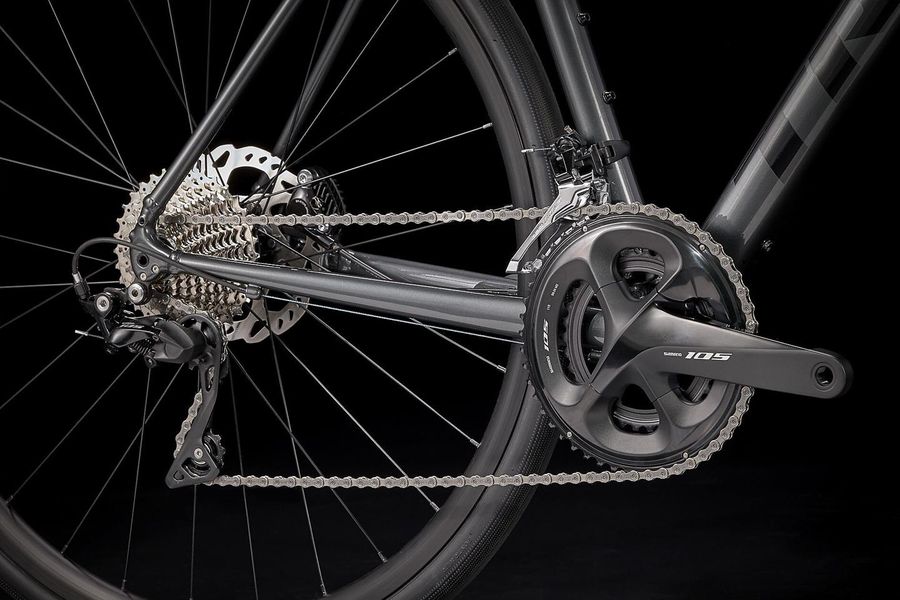

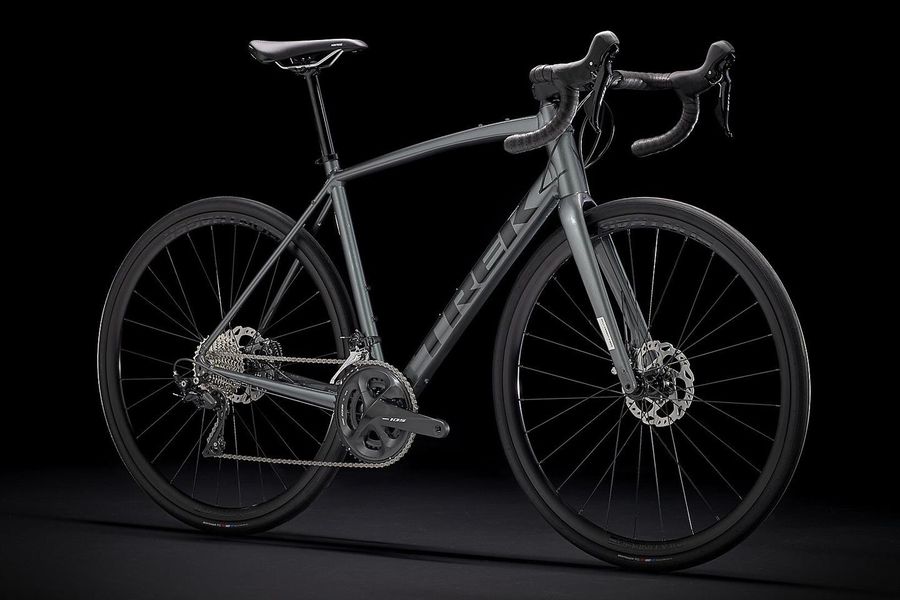

Equipped with the fabulous Shimano 105 groupset, the Domane is a formidable racer that leaves some more expensive competitors behind in direct duels on the road. The Domane AL 5 is the right road bike for you if your main focus is on a coherent overall package. You get a superbly crafted aluminum frame, combined with the best components that can be found in this price range. The 105 group is one of the top three Shimano ensembles and convinces with a fantastic performance. The wide-ratio drivetrain with 2 x 11 gears is ready for explosive sprints and challenging climbs. And hydraulic Shimano disc brakes have been leading the way in terms of function and serviceability for years. In addition to the good name Trek, the US manufacturer has long established a renowned brand for accessories in the scene with the house brand Bontrager. The comfortable IsoZone handlebar, saddle and post from the Comp series and not least the Tubeless-Ready wheels underline the clear line of the Domane AL 5.

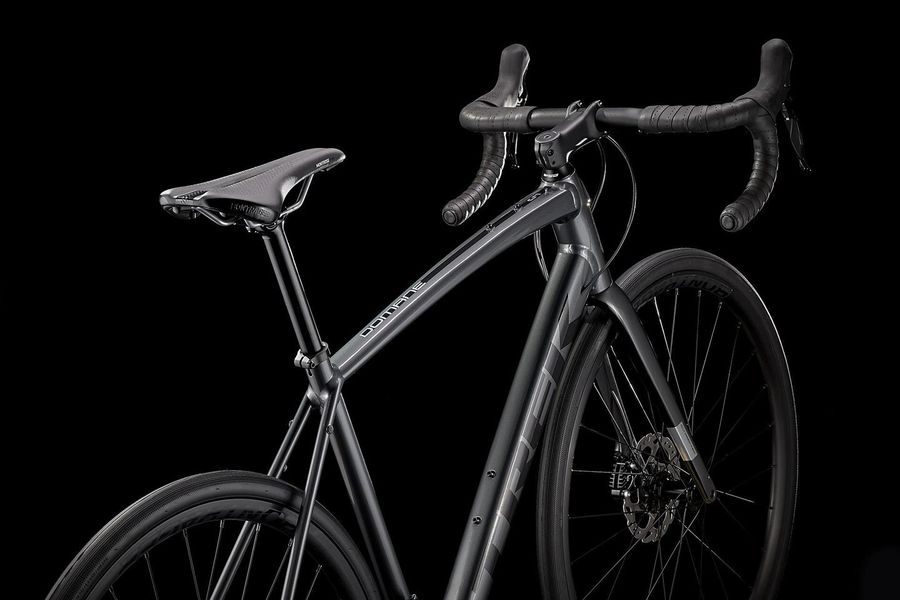

The US company Trek is one of the pioneers in the production of aluminum frames since the eighties. You can therefore rely on a huge know-how. This can be seen in every detail of the Domane frame, for example the cleanly smoothed welds. Trek manufactures specific tube profiles from the 100 Series Alpha aluminum using a process known as hydroforming. This shape ensures an optimal ratio between stiffness and weight. In addition, there are coherent details such as internally routed cables and a stiff quick-release system for the wheels. Aluminum is still the most reliable and robust material in frame construction. Trek combines the frame classically with a lightweight carbon fork. The carbon fiber material effectively dampens vibrations thanks to its molecular properties. Restful for the body on long distances and thus an important factor of the Endurance philosophy of the Trek Domane series.
Bike category | Road Bike |
---|---|
Brand | Trek |
Colour | Lithium Grey/Trek Black |
Weight | 10,1 kg |
Wheel Size | 28'' |

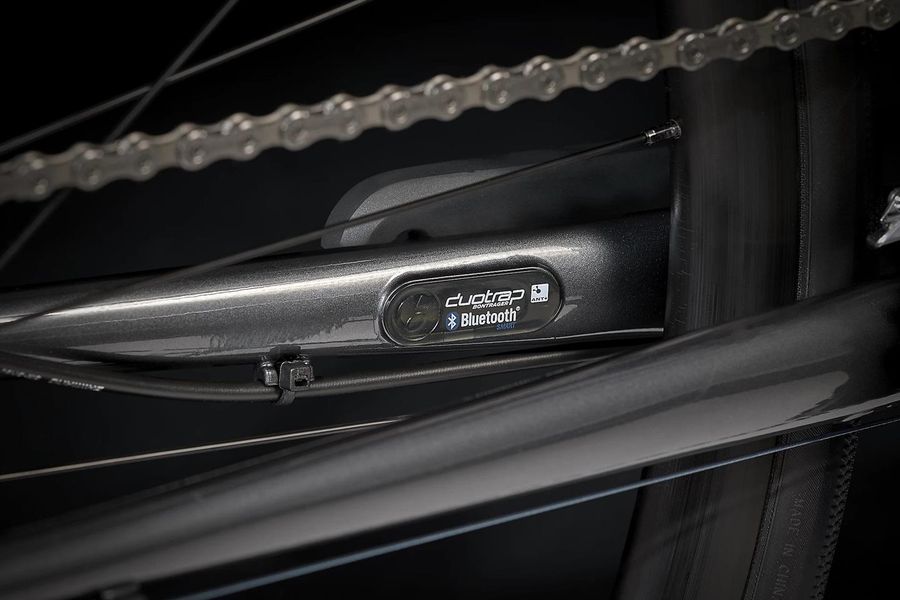

Frame | 100 Series Alpha Aluminium, konisches Steuerrohr, interne Zugführung, Schutzblechösen, DuoTrap S-kompatibel, Flat Mount-Scheibenbremsaufnahme, 142 x 12 mm |
Frame type | Diamond |
Fork | Domane AL, Carbon, konischer Aluminiumgabelschaft, interne Bremszugführung, Schutzblechösen, Flat Mount-Scheibenbremsaufnahme, 12 x 100 mm-Steckachse |
Customization - only in store | Anpassen der optimalen Sitzposition entsprechend deiner Anatomie |
Rims | Bontrager Affinity Disc, Tubeless Ready, 28-Loch, 21 mm Innenweite, Presta-Ventil |
Front hub | Bontrager, Aluminium, gedichtetes Lager, Center Lock-Scheibenaufnahme, 100 x 12 mm-Steckachse |
Rear hub | Bontrager, Aluminium, gedichtetes Lager, Center Lock-Scheibenaufnahme, 100 x 12 mm-Steckachse |
Tires | Bontrager R1 Hard-Case Lite, Drahtwulstkern, 60 TPI, 700 x 32C |
Shifters | Shimano 105 R7020, 11fach |
Front derailleur | Shimano 105 R7000, 31,8 mm Klemmdurchmesser |
Rear derailleur | Shimano 105 R7000, langer Käfig, max. 34 Z. an größtem Ritzel |
Crank | Shimano 105 R7000, 50/34 (Compact) |
Chain | Shimano HG601 |
Brake | Hydraulische Scheibenbremse Shimano 105, Shimano SM-RT70, Center Lock-Scheibenaufnahme, 160 mm |

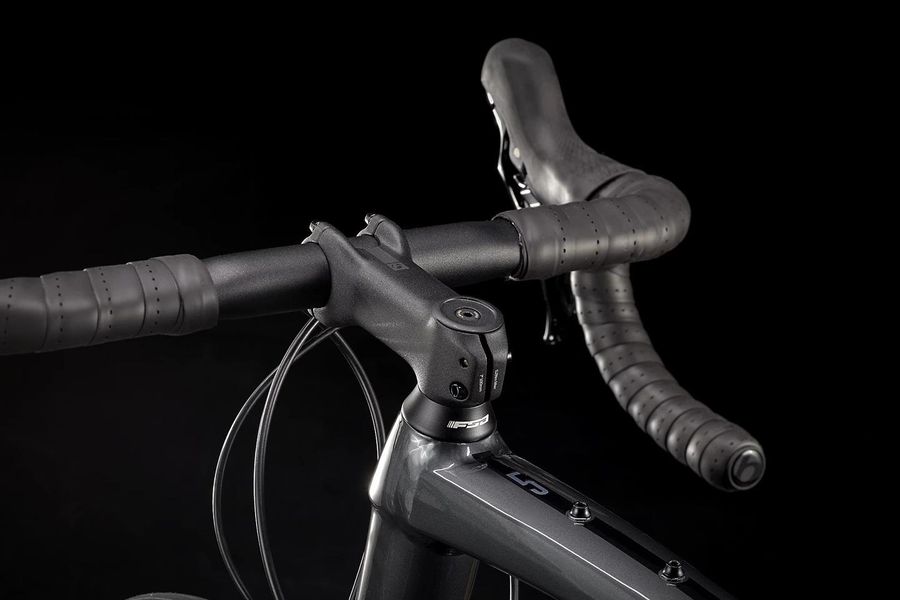

Handlebar | Bontrager Elite IsoZone VR-SF, Aluminium, 31,8 mm, interne Di2-Kabelführung |
Grips | Bontrager Supertack Perf-Lenkerband |
Stem | Bontrager Elite, 31,8 mm Klemmdurchmesser, Blendr-kompatibel, 7 Grad |
Headset | Integrierter FSA-Steuersatz, gedichtetes Patronenlager, 1 1/8" oben, 1,5" unten |
Saddle | Bontrager P3 Verse Comp, Stahlstreben |
Seatpost | Bontrager Comp, 6061-Aluminium, 27,2 mm, 8 mm Versatz |
Max. total weight | 125 kg |
Annotation | Illustrations and specifications may vary. The manufacturer reserves the right to replace certain components with components of similar quality. |
Manufacturer Information | Trek Bicycle GmbH |
