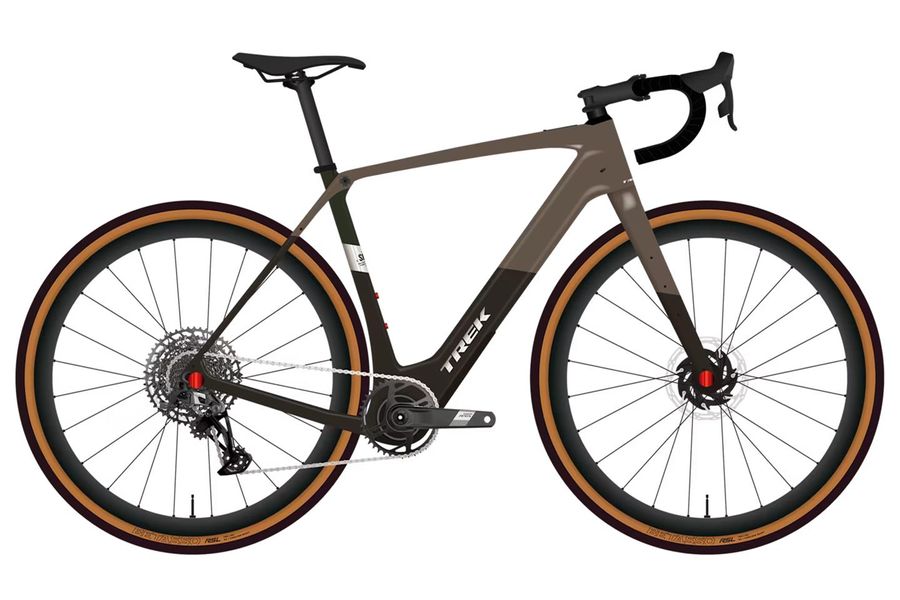

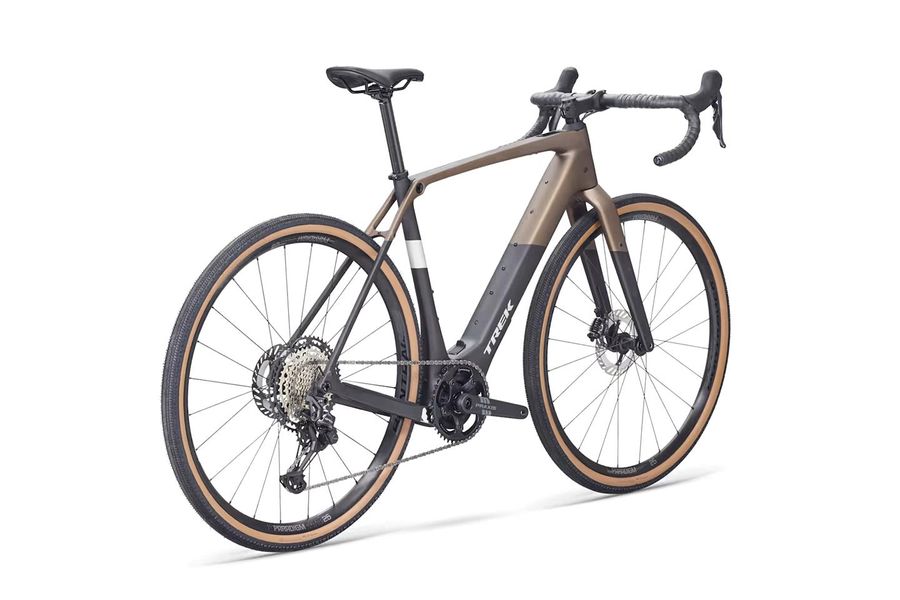

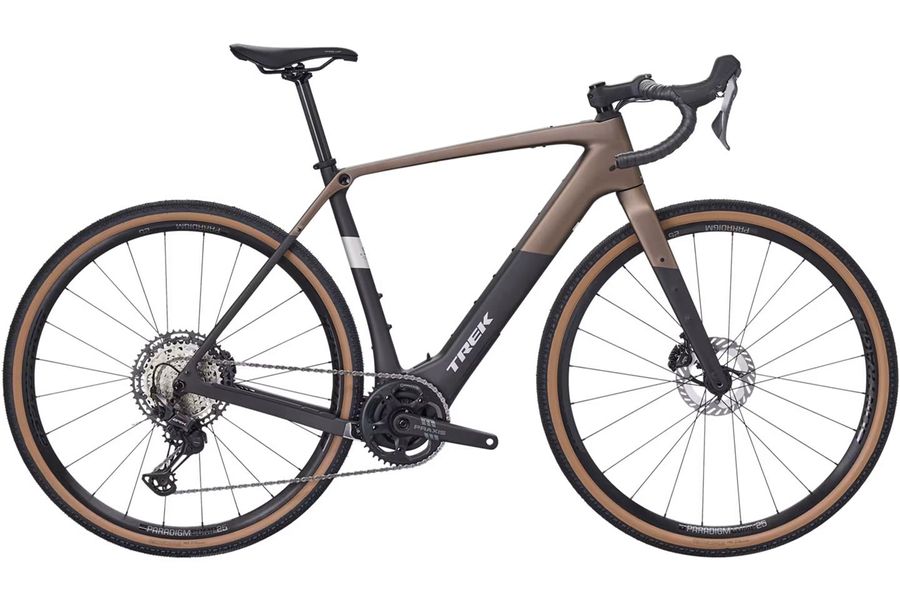

Trek Checkpoint+ SL 5
The Checkpoint+ SL 5 is an electric gravel bike that was born for long distances. Thanks to the smooth and natural support of the TQ HPR60 motor, even the toughest climbs are no problem, while the 360 Wh battery ensures that you won't run out of juice anytime soon. With its OCLV carbon frame, Shimano GRX 1x12 drivetrain and endurance geometry designed for long distances, you'll always be comfortable on your extended adventures.
Highlights
Frame
Carbon
Fork
Carbon
Tires
Bontrager Girona Pro, 700x42mm
Shifter
Shimano GRX (1x12)
Brakes
Shimano GRX (160/160)
Drive Unit
TQ-HPR 60 (60nm) / TQ 360Wh
Additional Information
| Bike category | Road E-Bike |
|---|---|
| Brand | Trek |
| Colour | Matte Bronze Age/Dark Web |
| Model year | 2026 |
| Wheel Size | 28'' |
| Frame | 500 Series OCLV Carbon, TQ-Antriebssystem, IsoSpeed, verborgene Schutzblechösen, Gepäckträgerösen, integrierte Aufnahme für Rahmentasche, unsichtbare Zugführung, Flat Mount Scheibenbremsaufnahme, integrierte Kettenführung, UDH, abgeschrägte 142 x 12 mm St |
| Frame type | Diamond |

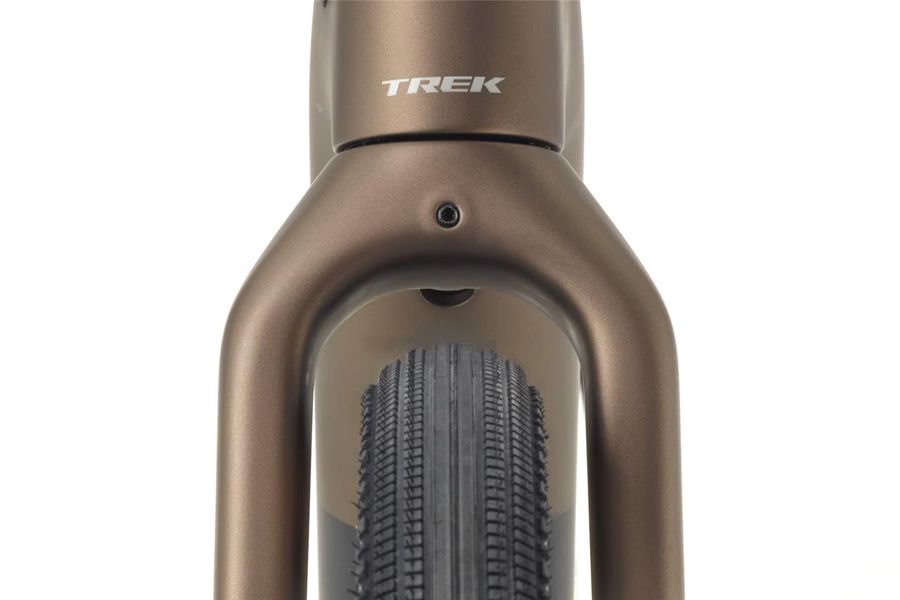

| Fork | Trek Checkpoint, Vollcarbon, konischer Gabelschaft, Gepäckträger- und Schutzblechösen, Flat Mount-Scheibenbremsaufnahme, 12 x 100 mm Steckachse |
| Customization - only in store | |
| Wheel set | Bontrager Paradigm Comp 25, Tubeless Ready |
| Tires | Bontrager Girona Pro, Tubeless Ready, GR Pannenschutz, Aramid-Kern, 700x42mm |
| Shifters | Shimano GRX RX820, 12fach |
| Rear derailleur | Shimano GRX RX822, max. 36 Z. an größtem Ritzel |

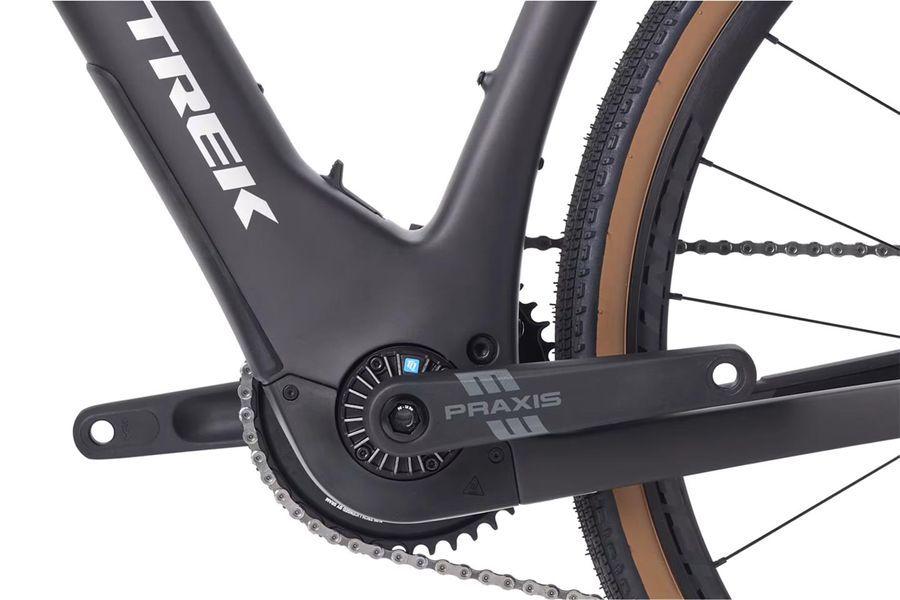

| Crank | Praxis Aluminium |
| Cassette | Shimano XT M8200, 10-51 Z., 12fach |
| Chain | Shimano XT M8100, 12fach |
| Brake | Shimano CL800, Center Lock Scheibenaufnahme, 160 mm |
| Brake lever | Shimano GRX RX820 |

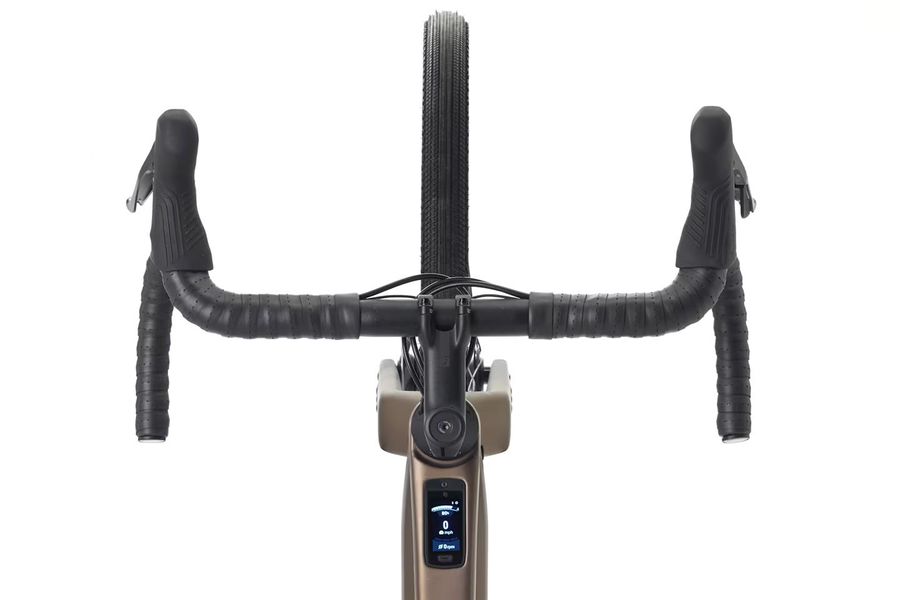

| Handlebar | Bontrager Elite Gravel, Aluminium |
| Grips | Bontrager Supertack Perf tape |
| Stem | Bontrager Elite, 31,8 mm Klemmdurchmesser, Blendr-kompatibel, 7 Grad |
| Saddle | Verse Short Comp, Stahlstreben, 145 mm Breite |
| Seatpost | Bontrager aus Carbon, 27,2 mm, 8 mm Versatz, 330 mm Länge |
| E-Engine | TQ HPR60, 60 Nm, 300 W max. Nenndauerleistung, 350 W Maximalleistung |
| Battery pack | TQ 360 Wh |
| Display | TQ LED-Display mit Bluetooth- & ANT+-Konnektivität |
| Charger | TQ Ladegerät, 4 A |
| Max. total weight | 125 kg |
| Annotation | The illustration may differ. The manufacturer reserves the right to replace certain components with components of equivalent quality. |
| Manufacturer Information | Trek Bicycle GmbH |
