Trek Checkpoint ALR 5 (2023)

Item no. 64129
2,699.00 € *
Variant
Size
Ready for gravel biking? Trek knows what it takes and equips the new Checkpoint ALR 5 with all the features you need for your off-road adventures. The robust frame offers clever mounting points for bikepacking accessories. And the Shimano GRX components make all escapades in rough off-road use easily with.

Highlights

Frame

300 Series Alpha Aluminium

Fork

Carbon

Tires

Bontrager GR1 Team Issue, 700 x 40C

Wheelset

Bontrager Paradigm

Shifter

Shimano GRX RX810/600 (2x11)

Brakes

Shimano GRX BR-RX600 (160/160)

Trek Checkpoint ALR 5 - Top entry into gravel biking and bikepacking

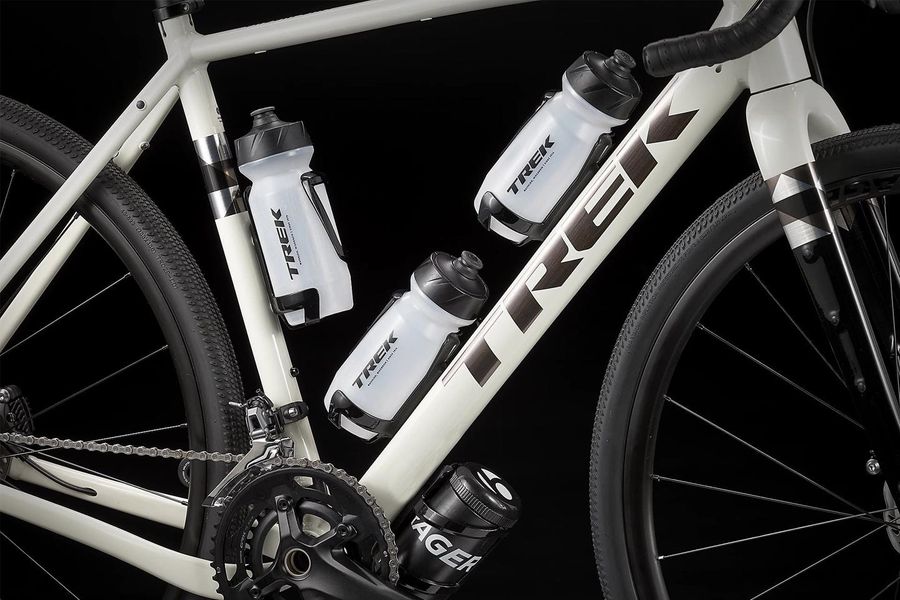

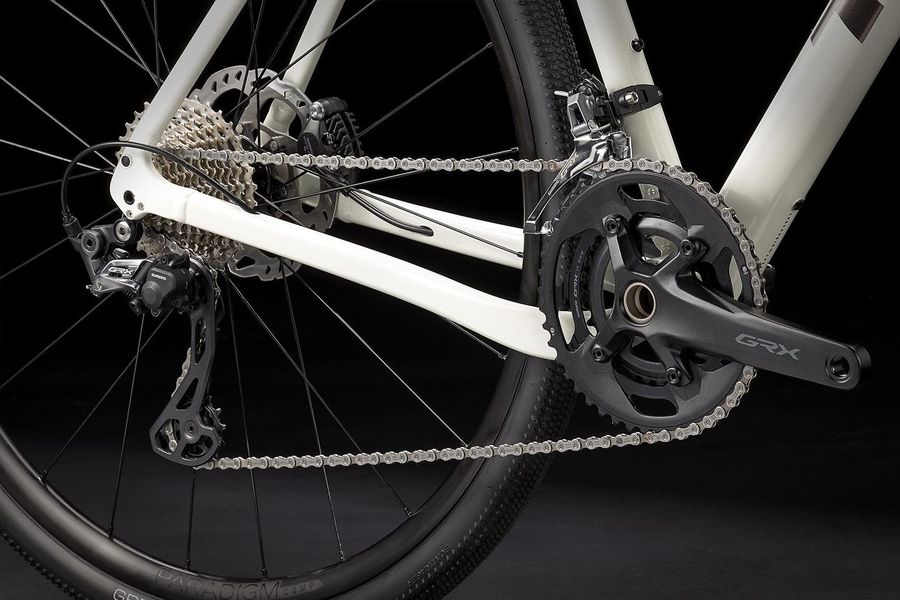

Everyone is talking about gravel bikes, and for good reason. Because hardly any other type of bike allows you to experience so many facets of cycling: Road biking, touring biking or multi-day bike trips with a high adventure factor. And all this without any restrictions on the terrain. So if you know your asphalt after-work rides inside and out, a gravel bike like the Checkpoint ALR 5 is a welcome addition to your horizons. You wouldn't believe how many gravel and forest trails there are to discover in your home turf. Even though the Checkpoint ALR 5 is the most budget-friendly gravel bike in Trek's lineup, it still has the class of a true Trek. A robust and durable bike with a high-quality aluminum frame and carbon fork. The frame offers numerous mounting options for bikepacking accessories like frame bags, multiple water bottles and mudguards. You can mount tires up to 45 millimeters wide and thus penetrate MTB terrain. Also handy is Trek's Blendr system for attaching lights, bike computers, smartphones and other accessories to the cockpit in a snap. The U.S. manufacturer equips the Checkpoint ALR 5 with indestructible Shimano GRX Gravel components and tubeless-ready Bontrager wheels.

Trek - Aluminum frame construction with tradition

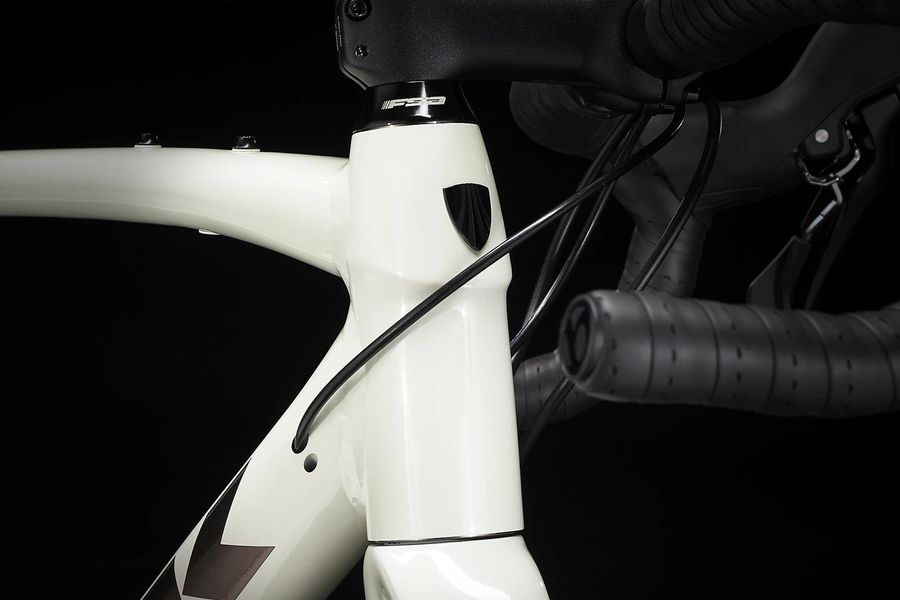

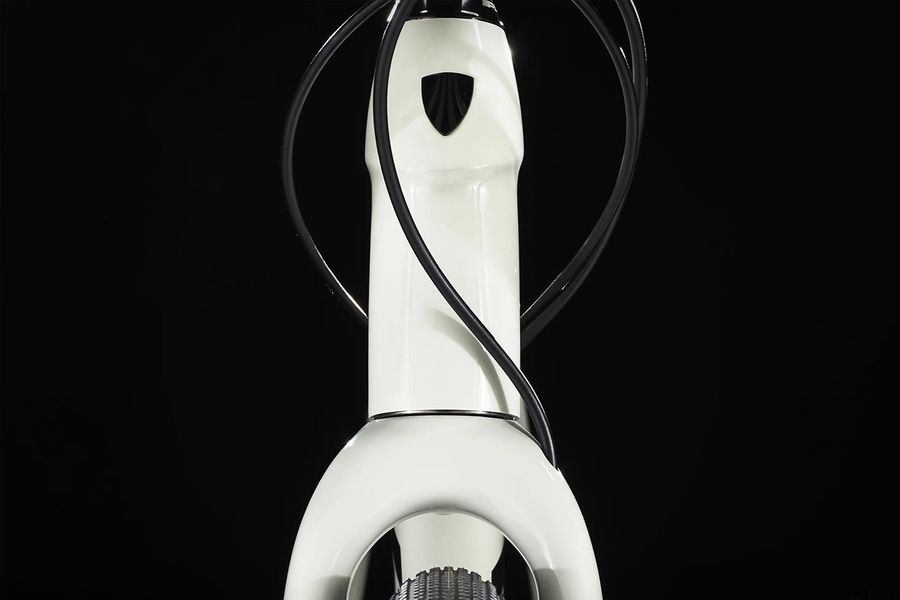

The US manufacturer Trek is one of the pioneers in the production of aluminum frames since the eighties. You can therefore rely on a huge know-how. The meticulous processing is also one of the main features of the Checkpoint ALR 5. Trek manufactures specific tube profiles from the 300 Series Alpha aluminum using the so-called hydroforming process. This shape ensures an optimal ratio between stiffness and weight. In addition, there are coherent details such as internally routed cables and a stiff quick-release system for the wheels. Aluminum is still the most reliable and robust material in frame construction. Trek combines the frame classically with a lightweight carbon fork. The carbon fiber material effectively dampens vibrations thanks to its molucular properties. A new, progressive geometry guarantees safe and stable handling on dirt roads.

Additional Information

Bike category Gravel Bike
Brand Trek
Colour Era White/Trek Black
Model year 2023
Weight 9,75 kg
Wheel Size 28''
Frame 300 Series Alpha Aluminium, konisches Steuerrohr, interne Zugführung, 3S-Kettenführung, T47-Innenlager, Gepäckträger- und Schutzblechösen, integrierte Befestigungselemente für Rahmentasche, Flat Mount-Scheibenbremsaufnahme, 142 x 12 mm Steckachse
Frame type Diamond
Customization - only in store Anpassen der optimalen Sitzposition entsprechend deiner Anatomie
Rims Bontrager Paradigm, Tubeless Ready, 24-Loch, 21 mm Innenweite, Presta-Ventil
Front hub Bontrager, Aluminium, gedichtetes Lager, Center Lock-Scheibenaufnahme, 100 x 12 mm-Steckachse
Rear hub Bontrager, Aluminium, gedichtetes Lager, Center Lock-Scheibenaufnahme, 11fach-Freilaufnabe von Shimano, 142 x 12 mm-Steckachse
Tires Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength Casing, Aramidwulstkern, 120 TPI, 700 x 40C
Shifters Shimano GRX RX600, 11fach
Front derailleur Shimano GRX RX810, Anlötversion
Rear derailleur Shimano GRX RX810, langer Käfig, max. 34 Z. an größtem Ritzel
Crank Shimano GRX RX600, 46/30 ODER Praxis 48/32
Cassette Shimano 105 HG700-11, 11-34 Z., 11fach
Chain Shimano HG601
Brake Shimano GRX BR-RX600 (160/160)
Handlebar Bontrager Elite Gravel
Grips Bontrager Supertack Perf-Lenkerband
Stem Bontrager Elite, 31,8 mm Klemmdurchmesser, Blendr-kompatibel, 7 Grad
Headset Integrierter FSA-Steuersatz, gedichtetes Patronenlager, 1 1/8" oben, 1,5" unten
Saddle Bontrager P3 Verse Comp, Stahlstreben
Seatpost Bontrager, Aluminium, 27,2 mm, 12 mm Versatz, 330 mm Länge
Annotation Illustrations and specifications may vary. The manufacturer reserves the right to replace certain components with components of similar quality.
