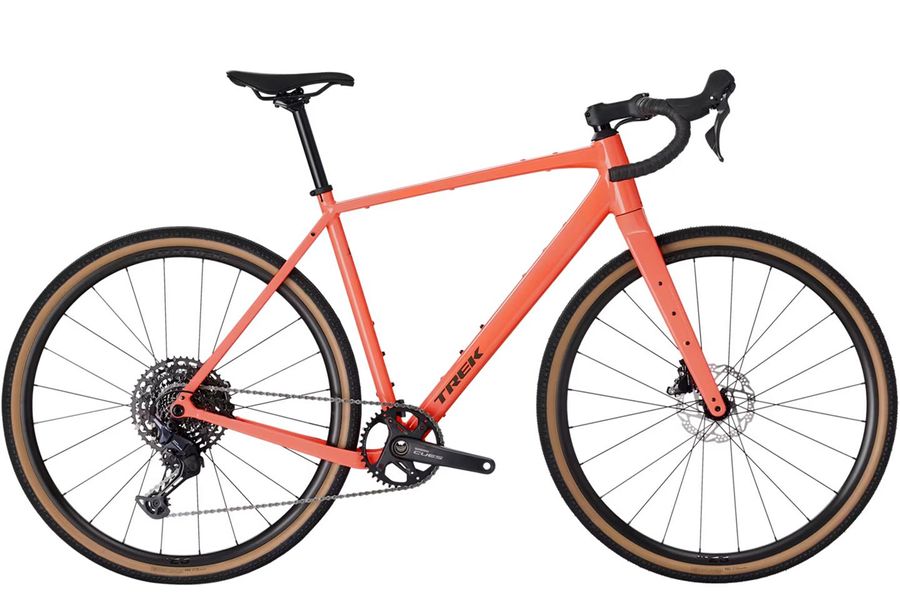

Trek Checkpoint ALR 4 Gen 3
Are you looking for a gravel bike that impresses with its performance and price? The Checkpoint ALR 4 is based on a robust, comfortable frame made from sustainable Alpha aluminium, scores points with its long-distance-oriented gravel geometry and is equipped with robust Shimano CUES 11-speed groupset.
Highlights
Frame
Aluminium
Fork
Carbon
Tires
Bontrager Girona Pro, 700x42mm
Wheelset
Bontrager Paradigm 23
Shifter
Shimano CUES (1x11)
Brakes
Shimano CUES (160/160)
Trek Checkpoint ALR 4 Gen 3
The Checkpoint ALR 4 is an aluminium gravel bike that is perfectly tailored to the requirements of extended tours on less frequented roads and trails. Its modern endurance geometry increases comfort on gravel tracks and bumpy roads, while the 50 mm tyre clearance provides space for tyres with additional grip. It comes with a carbon fork, Bontrager Paradigm wheels, a Shimano CUES U8000 11-speed drivetrain, hydraulic disc brakes and numerous mounting points for bags and equipment.
Additional Information
| Bike category | Gravel Bike |
|---|---|
| Brand | Trek |
| Colour | Living Coral |
| Model year | 2026 |
| Customization - only in store | |
| Annotation | The illustration may differ. The manufacturer reserves the right to replace certain components with components of equivalent quality. |
| Frame | 300 Series Alpha Aluminium, interne Zugführung, 3S-Kettenführung, T47-Innenlager, UDH, Gepäckträger- und Schutzblechösen, integrierte Aufnahme für Rahmentasche, Flat Mount Scheibenbremsaufnahme, abgeschrägte 142 x 12 mm Steckachse |
| Fork | Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle |
| Frame type | Diamond |
| Shifters | Shimano CUES U6030, 11fach |
| Rear derailleur | Shimano CUES U8000 GS |
| Crank | Shimano CUES FCU60301 , 40T ring |
| Cassette | Shimano CUES LG700, LINKGLIDE, 11-50, 11 speed |
| Chain | Shimano LG500 |
| Brake | Shimano CUES U6030, Shimano RT54, Center Lock, 160 mm |
| Rims | Bontrager Paradigm 23, Tubeless-Ready, 24-Loch, 23 mm Innenweite, Presta-Ventil |
| Tires | Bontrager Girona Pro, Tubeless Ready, GR Pannenschutz, Aramid-Kern, 700x42mm |
| Wheel Size | 28'' |
| Front hub | Bontrager, Aluminium, gedichtetes Lager, Center Lock Scheibenaufnahme, 100 x 12 mm Steckachse |
| Rear hub | Bontrager, Aluminium, gedichtetes Lager, Center Lock-Scheibenaufnahme, 11fach-Freilaufnabe von Shimano, 142 x 12 mm-Steckachse |
| Handlebar | Bontrager Elite Gravel, Aluminium |
| Stem | Bontrager Elite, 31,8 mm Klemmdurchmesser, Blendr-kompatibel, 7 Grad |
| Grips | Bontrager Supertack Perf |
| Saddle | Verse Short Comp, Stahlstreben, 145 mm Breite |
| Seatpost | Bontrager, Aluminium, 27,2 mm, 12 mm Versatz, 330 mm Länge |
| Weight | 10,4 kg |
| Max. total weight | 125 kg |
| Manufacturer Information | Trek Bicycle GmbH |
