Ortlieb Quick Rack XL

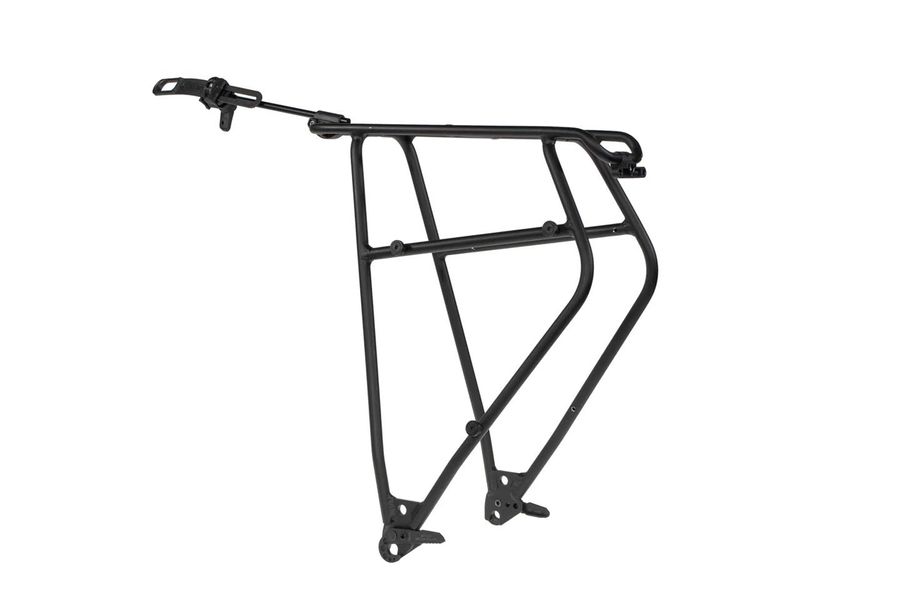

Ortlieb Quick-Rack XL

Get your bike ready to transport your shopping and your daily commute to work in no time at all - with maximum flexibility. The Quick Rack is ready for use in just 15 seconds and can be removed just as quickly. Its robust struts with a diameter of 12 mm can easily carry up to 26 kilograms. The Quick Rack is compatible with all ORTLIEB mounting systems, so you can use any ORTLIEB bag with it. Thanks to its two levels and platform, you can attach side bags and a basket at the same time. The optional mudguards keep you dry and clean on your rides, even in bad weather.

Highlights

• Lightweight luggage carrier with quick release system for fast mounting and dismounting on the bike
• 5/15 method, 15 seconds for mounting, 5 seconds for dismounting
• Quick change from sporty bike to commuter bike
• Leaves a clean bike, no fixed luggage rack

Details

• Maximum load 26 kg

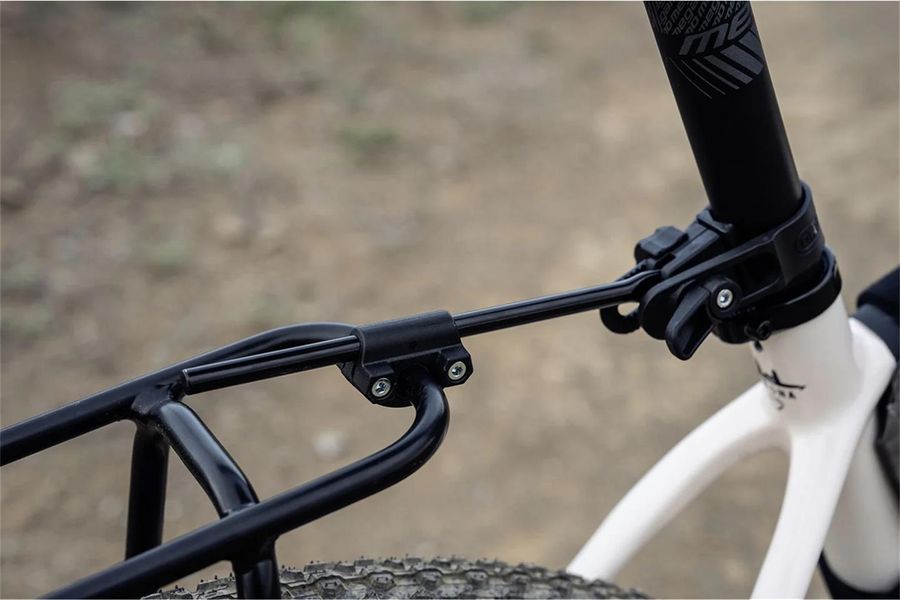

• Can be used on carbon seat posts and carbon frames with M5 or M6 threads
• Can be used on full-suspension bikes
• Universally adaptable thanks to different strut lengths

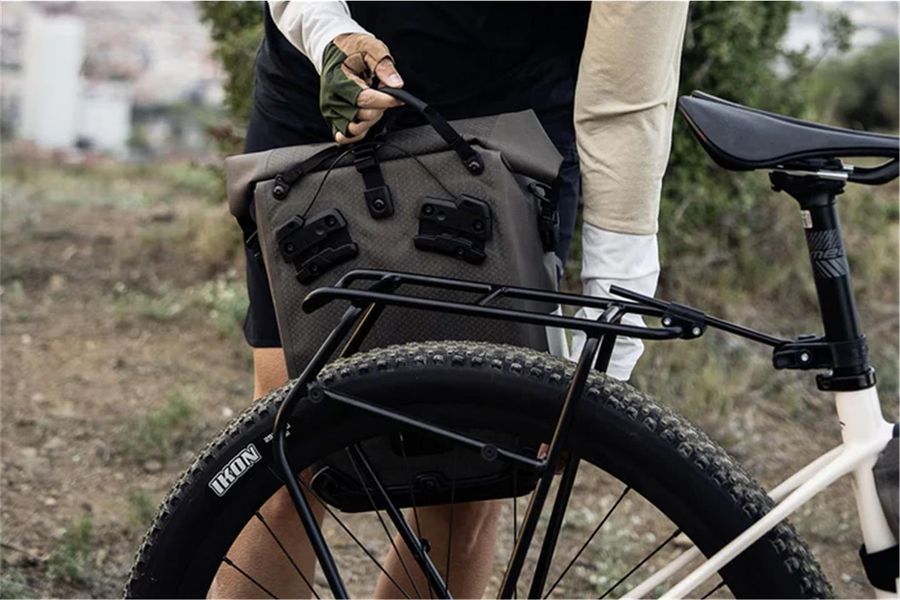

• Touring rack with two mounting levels, e.g. for simultaneous use of basket (Top-Lock product) and QL1/2/2.1 side bags
• Enables direct attachment of all bags with QL1/2.1/3.1 and Top-Lock system

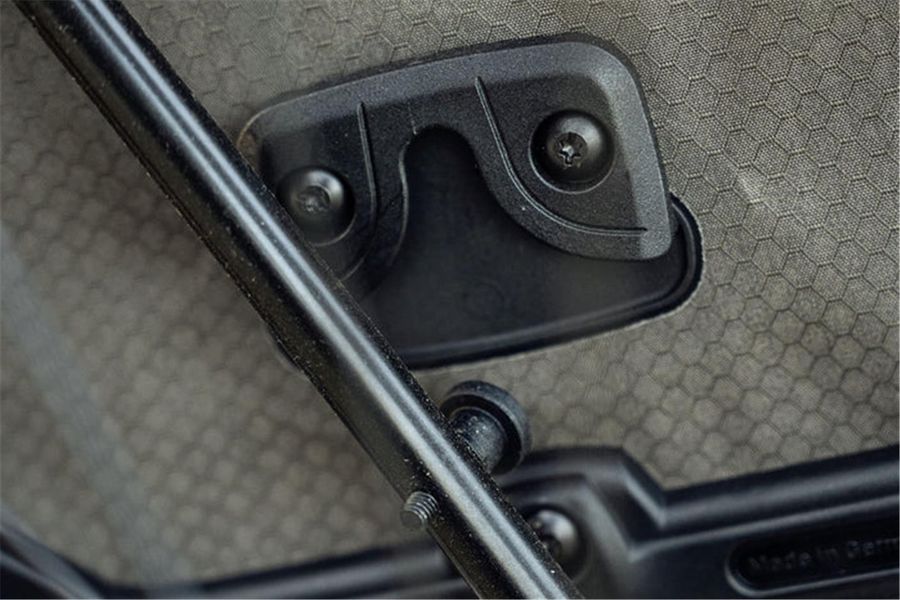

• Integrated threads for direct mounting of QL3.1 snap-in knobs
• Suitable for wheel sizes up to 29“/(2.6”) when mounted via an adapter axle; up to 2.9“/3” when mounted directly or with Seat Stay Adapter
• Horizontal and vertical struts with 12 mm tube diameter
• Luggage carrier platform with 10 mm tube diameter
• Preparation for optional rear light (light not included)

Measurements

• Weight: 780 g
• Dimensions (WxHxD): 21 x 43 x 38 cm
• Max. width: 195 mm
• Tube diameter: 10/12 mm

Scope of delivery

• Rack with mounting material and additional extra long mounting stay (300 mm)
• Mounting bracket for optional rear light
• QL3/QL3.1 mounting clamps

Attention: Rack is not suitable for mounting and using child seats; To prevent scratches and paint damage, please use frame protection film on the contact points.
