Ortlieb Quick-Rack

Ortlieb Quick-Rack

Get your bike ready to transport your shopping and your daily commute to work in no time at all - with maximum flexibility. The Quick Rack is ready for use in just 15 seconds and can be removed just as quickly. Its robust struts with a diameter of 10 mm can easily carry up to 20 kilograms. The Quick Rack is compatible with all ORTLIEB mounting systems, so you can use any ORTLIEB bag with it. Thanks to its two levels and platform, you can attach side bags and a basket at the same time. The optional mudguards keep you dry and clean on your rides, even in bad weather.

Dimensions

• Weight: 580g
• Dimensions (WxHxD): 18.5 x 39 x 40cm
• Outer width of support surface: 100mm
• Tube diameter: 10mm

Highlights

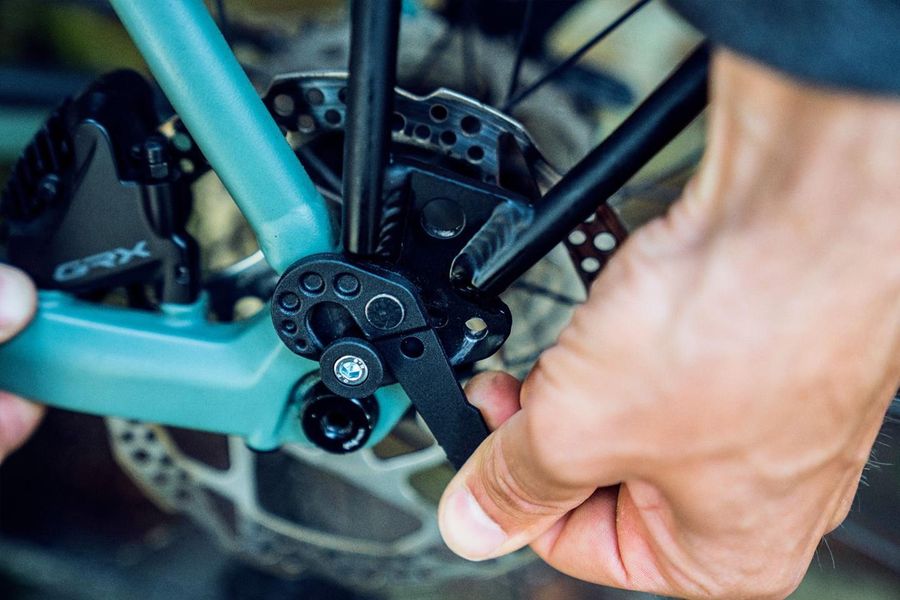

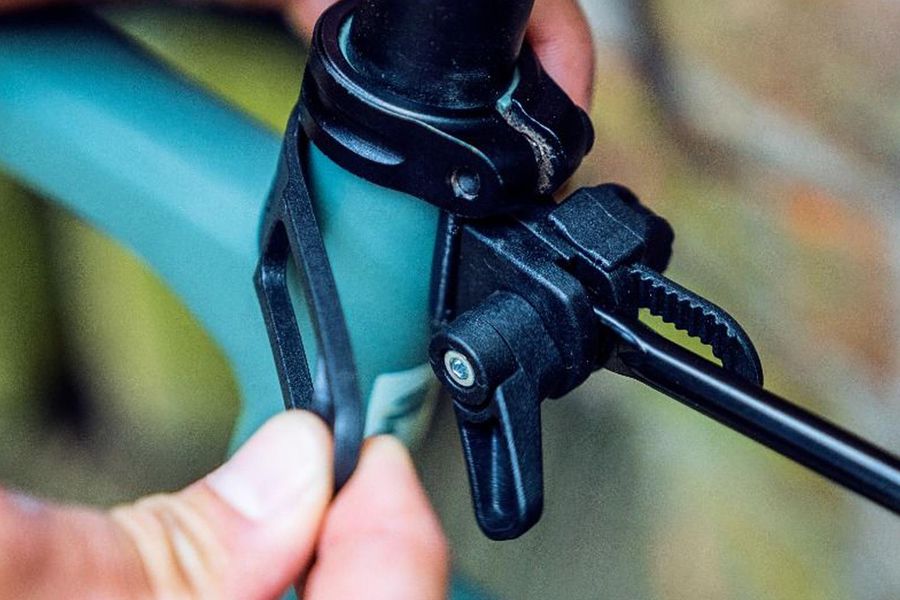

• Lightweight carrier with quick release system for quick mounting and dismounting on the bike
• 5/15 method, 15 seconds for assembly, 5 seconds for disassembly
• Quick change from sporty bike to commuter bike
• Leaves a clean bike, no permanently mounted rack
• Can be used on carbon seat posts and carbon frames with M5 or M6 threads
• Can be used on full-suspension bikes
• Universally customisable thanks to different strut lengths
• Touring rack with two mounting levels, e.g. for simultaneous use of basket and side panniers
• Enables direct attachment of all bags with QL1/2.1/3.1 and Top-Lock system
• QL3/3.1 mounting elements can be removed
• Suitable for wheel sizes 26"-28" and 29" with limited compatibility
• Horizontal and vertical struts with 10 mm tube diameter
• Incl. mounting kit; no further mounting parts necessary
• Preparation for optional rear light (light not included)
• Maximum load 20 kg

Scope of delivery

• Luggage carrier with mounting material and additional extra-long mounting brace (300 mm)
• Preparation for optional rear light
• QL3/QL3.1 mounting elements

Note: The carrier is not suitable for mounting and using child seats; to prevent scratches and damage to the paintwork, please use frame protection film at the contact points.
