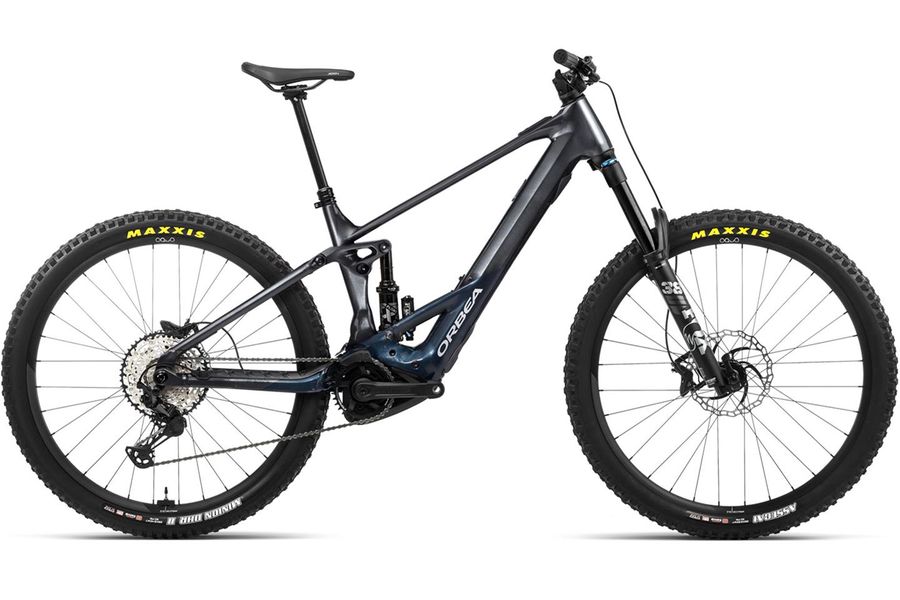

Orbea Wild H10
The top model of the Wild aluminum series leaves nothing to be desired. First-class motorized with Performance CX Smart and 750Wh battery from Bosch. In addition, Shimano XT / Deore components and an outstanding chassis from the suspension specialist Fox. Thus, this enduro E-MTB can be seen uphill and downhill on the steepest trails.
Highlights
Frame
Aluminium
Fork
FOX 38 Float Performance (160mm)
Shifter
Shimano Deore/XT (1x12)
Brakes
Shimano M6120
Rear Shock
Fox Float X Performance
Drive Unit
Bosch Perf. CX Gen4 (85Nm) / PowerTube (750Wh)
Orbea Wild H10 - The top model of the Wild aluminum series
The E-fullys from the Orbea Wild series are the ticket for your trail adventures with high downhill factor. Because especially the Enduro class benefits noticeably from the E-support. Finally, you can reach your favorite trails and descents without exhausting yourself to the point of complete exhaustion. A chassis with 160 millimeters of suspension travel has its weight. In developing the Wild, however, Orbea has taken care to save weight at every sensible point. Simply to tickle maximum power and endurance from the Bosch Performance CX motor and the 750-Wh battery. And they succeeded! The Wild models are among the lightest e-enduros on the market. The enduros were developed in collaboration with the Orbea Race Team. In the race, agile handling is a decisive factor.
There are two series of the Wild: The M models with carbon frame and the cheaper H models with aluminum frame. In the H10 version, the Wild comes with a high-quality Fox chassis, consisting of 38 Float Performance suspension fork and Float X Performance shock. The Fox elements are characterized by minimal friction on the seals and perfect setup. The broadband graded Shimano XT 1 x 12 gears master even the steepest climbs. The service-friendly Deore disc brakes also come from Shimano. Thanks to 4-piston technology, they deliver high braking power even with low hand force. And in typical Orbea fashion, a telescopic seatpost is also standard equipment, so you can hit the trail right away.
Bosch Performance CX - The most powerful motor in its class
The Bosch Performance CX motor has been synonymous with reliable performance for years. It is powered on the Wild H10 by the currently largest possible InTube battery (750 Wh). The best combo of the market leader offers superior performance and range. In addition, in the latest generation, all drive components are networked via the smart system and can be controlled and fine-tuned with the smartphone if desired. Another feature of Orbea e-bikes is the incredibly harmonious integration of the drive into the frame. The main frame is extra braced above the motor interface, which provides enormous stiffness at the start.
Orbea - High-quality bikes from Spain
Founded as early as 1840, then still as a weapons forge, Orbea has been one of the most important traditional manufacturers of bicycles in Spain since the 1930s. Based in the bike-crazy Basque country, the company's philosophy has always been to be close to the sport. Fans know the legendary atmosphere on the roads when the Tour de France makes a detour to the Spanish Pyrenees. Numerous professional teams in MTB and road cycling rely on the quality of the bikes from the Basque Country.
Additional Information
General | |
Bike category | E-MTB Full Suspension |
---|---|
Model year | 2024 |
Colour | Basalt Grey - Dark Teal |
Frame | |
Frame | Orbea Wild Hydro 2023, 160mm travel, 29" wheels, Concentric Boost 12x148 |
Fork | FOX 38 Float Performance 160 Grip 3-Position QR15x110 E-Bike Optimized |
Rear Shocks | FOX Float X Performance Trunnion 2-Position Adjust custom tune 205x65mm |
Headset | Alloy 1-1/2", Black Oxidated Bearing |
Frame type | Fully |
Drive | |
Shifters | Shimano Deore M6100 I-Spec EV |
Rear derailleur | Shimano XT M8100 SGS Shadow Plus |
Crank | e*thirteen Plus Alloy |
Cassette | Shimano CS-M7100 10-51t 12-Speed |
Chain | Shimano M6100 |
Ebike | |
Battery pack | BOSCH Powertube 750Wh Horizontal BBP3770 |
E-Engine | BOSCH Performance Line CX BDU3741 |
Remote | BOSCH Mini Remote BRC3300 |
Display | BOSCH System Controller BCR3100 |
Charger | Bosch Charger 4A (230V) BPC3400 |
Brakes | |
Brake | Shimano M6120 Hydraulic Disc |
Wheels | |
Wheel set | DT Swiss HX-1700 Spline 30c TLR 15x110mm / 12x148mm |
Wheel Size | 29'' |
Cockpit | |
Handlebar | OC Mountain Control MC20 Alu SL, Rise20, Width 800 |
Stem | OC Mountain Control MC20, 0º |
Grips | OC Lock On |
Seat | |
Saddle | Fizik Aidon 208x145mm manganese rail |
Seatpost | OC Mountain Control MC21, 31.6mm, Dropper |
Other | |
Customization - only in store | |
Configuration - available in our stores | |
Annotation | The illustration may differ. The manufacturer reserves the right to replace certain components with components of equivalent quality. |
Manufacturer Information | |
Manufacturer Information | Orbea S. Coop. |
