Front position light 60 Lumen
Aluminium
Carbon
Shimano Acera (1x8)
Shimano MT200
Mahle Ebikemotion X35 Plus / Ebikemotion (248Wh)

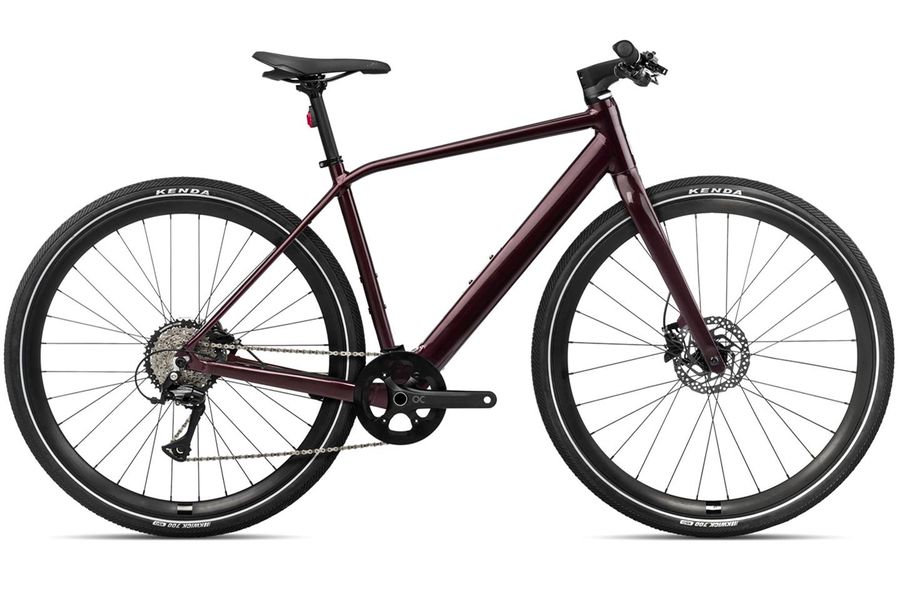

With the Vibe series, Orbea has realized a very special concept. To build an e-bike that does not waste electrical energy in excess, but uses it more efficiently. The idea behind it: A lightweight overall design requires less propulsive power because less mass has to be brought into momentum. Even when the motor is in standby mode, the Vibe rides effortlessly on level ground. The cornerstone for this is the new Ebikemotion drive system, which puts more focus back on the rear-wheel hub motor. The technology has been intensively developed in recent years and so a hub motor on urban and trekking bikes is now a real alternative to the mid-motor. The battery can also be more compact as a result. Welcome side effect: The Vibe H30 not only looks like a normal sportbike, but it also brings back the agile driving feel. In terms of aluminum frame, carbon fork and drive, the H30 is identical in construction to the H10. The equipment with Shimano Acera rear derailleur and Shimano MT200 disc brakes, however, turns out cheaper, but no less functional. Mudguards and luggage racks can be easily retrofitted. Therefore, commuters should also take a closer look at the Orbea Vibe H30.
The new Ebikemotion X35 drive system from manufacturer Mahle heralds a new generation of e-bikes. Thanks to a small-diameter planetary gear, the hub with the integrated motor can be built extremely compactly. A battery with 248 watt hours of power is sufficient for power supply, which is integrated in the down tube, increasing its diameter only insignificantly. Control and selection of the support modes is done via the minimalist iWoc control element on the handlebars. However, the drive can also be paired with the smartphone using the Ebikemotion app, which offers much more extensive control options and riding data.
Founded as early as 1840, at that time still as a weapons forge, Orbea has been one of the most important traditional manufacturers of bicycles in Spain since the 1930s. Based in the bike-crazy Basque country, the company's philosophy has always been to be close to the sport. Fans know the legendary atmosphere on the roads when the Tour de France makes a detour to the Spanish Pyrenees. Numerous professional teams in MTB and road cycling rely on the quality of the bikes from the Basque Country. We are happy to offer you Orbea bikes from now on in the Rabe webstore and in our stores.
Bike category | City E-Bike |
---|---|
Brand | Orbea |
Model year | 2024 |
Colour | Metallic Burgundy Red |
Wheel Size | 28'' |
Frame | Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45 maximun tire, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and fenders compatible |
Frame type | Diamond |
Fork | Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible. |
Customization - only in store | |
Cassette | Shimano CS-HG400 11-40t 8-Speed |
Front hub | Orbea Thru Axle 12x100mm M12x2 P1 Hollow |
Shifters | Shimano SL-M315 |
Rear derailleur | Shimano Acera M3020 |
Crank | CR01, Forged alloy, 42t, w/Chainguard |
Chain | KMC X8 |
E-Engine | Mahle motor hub X35 Plus 25kmh |
Battery pack | Mahle 36V/6.9A 248Wh ANT+ |
Display | N/A |
Remote | Mahle iWoc TRIO |
Charger | Mahle X35 |
Brake | Shimano MT200 Hydraulic Disc |
Bell | Knog OI Classic |
Headset | Acros Alloy 1-1/2" Internal Cable Routing |
Saddle | Selle Royal Lift 1215 URN 278x145mm |
Seatpost | Alloy, 27.2mm, Setback 0, for integrated light |
Headlight | Front position light, on head tube, COB Led, On/Off, 60 Lumen, ECE50 |
Back light | Lezyne FENDER STVZO seatpost mounting 11 lumens |
Annotation |
