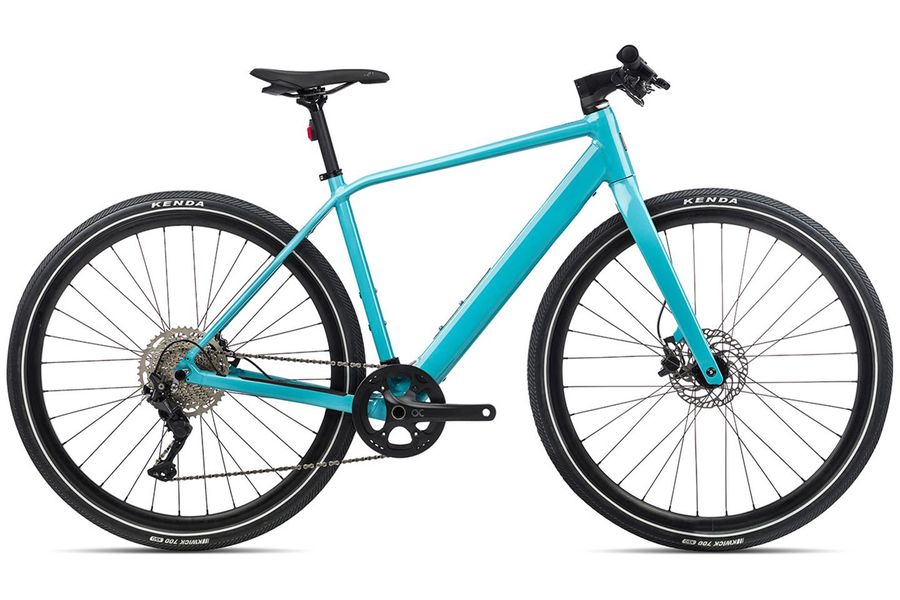

Orbea Vibe H30 (2022)

Item no. 59113
2,599.00 € *
Finance at 0% now!
Size
Low stock
Delivery by 17/8 - 19/8
Check availability in our stores
This is what a modern e-bike looks like! The filigree Orbea Vibe H30 rides thanks to Ebikemotion drive and weight optimization as lively as a crosser. A stylish companion for commuters, city traffic and enjoyable after-work tours.

Highlights

Frame

Aluminium

Fork

Carbon

Tires

Kenda K1052 700x45C

Shifter

Shimano Deore (1x10)

Brakes

Magura MT30 Easy Route Connection

Drive Unit

Mahle Ebikemotion X35 Plus / Ebikemotion (248Wh)

Orbea Vibe H30 - Modern e-bike for city and fitness.

With the Vibe series, Orbea has realized a very special concept. To build an e-bike that does not waste electrical energy in excess, but uses it more efficiently. The idea behind it: A lightweight overall design requires less propulsive power because less mass has to be brought into momentum. Even when the motor is in standby mode, the Vibe rides effortlessly on level ground. The cornerstone for this is the new Ebikemotion drive system, which puts more focus back on the rear-wheel hub motor. The technology has been intensively developed in recent years and so a hub motor on urban and trekking bikes is now a real alternative to the mid-motor. The battery can also be more compact as a result. Welcome side effect: The Vibe H30 not only looks like a normal sportbike, but it also brings back the agile driving feel. In terms of aluminum frame, carbon fork and drive, the H30 is identical in construction to the H10. The equipment with Shimano Deore rear derailleur and Magura MT30 disc brakes, however, turns out cheaper, but no less functional. Mudguards and luggage racks can be easily retrofitted. Therefore, commuters should also take a closer look at the Orbea Vibe H30.

Ebikemotion - The power from the hub

The new Ebikemotion X35 drive system from manufacturer Mahle heralds a new generation of e-bikes. Thanks to a small-diameter planetary gear, the hub with the integrated motor can be built extremely compactly. A battery with 248 watt hours of power is sufficient for power supply, which is integrated in the down tube, increasing its diameter only insignificantly. Control and selection of the support modes is done via the minimalist iWoc control element on the handlebars. However, the drive can also be paired with the smartphone using the Ebikemotion app, which offers much more extensive control options and riding data.

Orbea - High-quality bicycles from Spain

Founded as early as 1840, at that time still as a weapons forge, Orbea has been one of the most important traditional manufacturers of bicycles in Spain since the 1930s. Based in the bike-crazy Basque country, the company's philosophy has always been to be close to the sport. Fans know the legendary atmosphere on the roads when the Tour de France makes a detour to the Spanish Pyrenees. Numerous professional teams in MTB and road cycling rely on the quality of the bikes from the Basque Country. We are happy to offer you Orbea bikes from now on in the Rabe webstore and in our stores.

Additional Information

Bike category City E-Bike
EAN 8434446961571
Brand Orbea
Model Year 2022
Colour Blue
Wheel Size 28''
Frame Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45 maximun tire, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and fenders compatible
Frame type Diamond
Fork Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.
Customization - only in store Anpassen der optimalen Sitzposition entsprechend deiner Anatomie
Wheel set Ready GR
Cassette Shimano CS-M4100 11-46t 10-Speed
Front hub Orbea Thru Axle 12x100mm M12x2 P1 Hollow
Tires Kenda K1052 700x45C Reflective type+puncture protection
Shifters Shimano Deore M4100
Rear derailleur Shimano Deore M5120 SGS Shadow Plus
Crank OC 42t, w/Chainguard
Chain KMC X10
E-Engine Mahle ebikemotion X35 Plus 25kmh
Battery pack Mahle 36V/6.9A 248Wh ANT+
Remote Mahle iWoc TRIO (control panel)
Charger Mahle X35
Brake Magura MT30 Hydraulic Disc Easy Route Connection
Handlebar Alloy 31.8mm 12mm Rise 700mm
Bell Knog OI Classic
Stem OC1 31.8mm interface -6º
Headset Acros Alloy 1-1/2" Internal Cable Routing
Saddle Selle Royal Lift 1215 URN 278x145mm
Seatpost OC 27.2 Offset 0, for integrated light
Back light Lezyne FENDER STVZO seatpost mounting 11 lumens
Annotation Illustrations and specifications may vary. The manufacturer reserves the right to replace certain components with components of similar quality.
