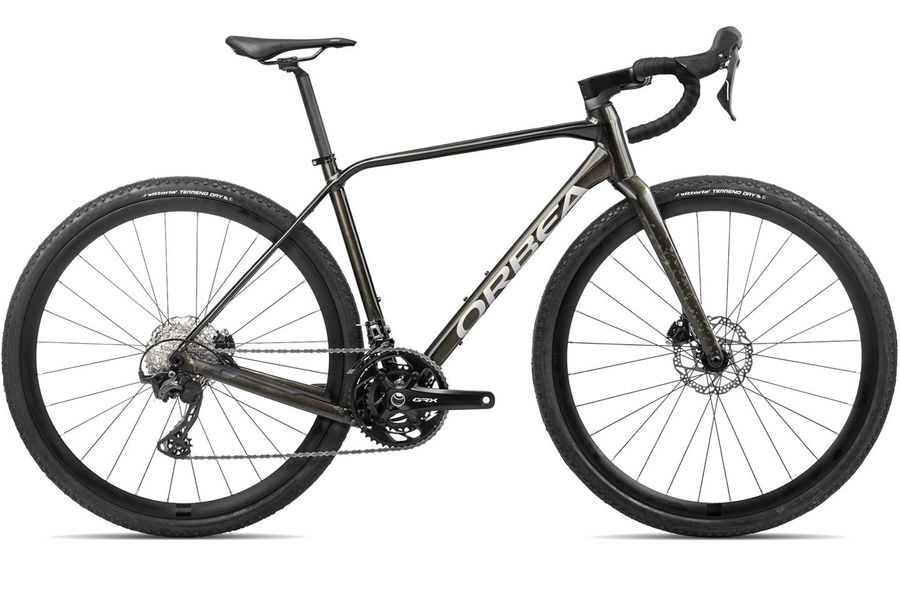

Orbea Terra H30

Item no. 69609
2,159.00 € *
2,399.00 € Save 240.00 € **
10%
Variant
Size

The Terra H30 was built to explore the world, from enjoyable to sporty. Its versatile and adaptable aluminium frame is equipped with discreet mounting points for accessories. Answer the call of bikepacking adventure!

Highlights

Frame

Aluminium

Fork

Carbon

Tires

Vittoria Terreno Dry Gravel 700x38c

Wheelset

28"

Shifter

Shimano GRX 820/610 (2x12)

Brakes

Shimano RX400

Orbea Terra H30 - Versatile gravel bike for every adventure.

Gravel biking is a relatively new and very appealing way to enjoy cycling and break away from everyday life. This sport can have many faces: Training on rough roads in the backcountry, challenging tours on gravel roads or adventures with an overnight stay in the open air. Gravel biking even lets you rediscover your home territory. Orbea has completely redeveloped the Terra and designed it for gravel use from the very first moment. And another important thing: the Terra is anything but a converted road bike or a slim mountain bike! The frame offers more comfort than a pure road racer, both in terms of riding position and frame geometry. Longer top tube and wheelbase for riding safety and comfort. Individually optimised steering angle for each frame size. With the Terra, you ride a balanced bike with precise handling and maximum control on unpaved surfaces. For longer adventures, you'll find discreet mounting points at the rear for panniers, and more for mudguards.

Hydroformed aluminium frame with Shimano components

As usual with Orbea, the Terra is available with an aluminium frame (H) or carbon (M). The Terra H30 uses the latest hydroforming technology to create an organic design that follows the flow of power. Smoothly polished weld seams emphasise the flowing, elegant look. The fork, on the other hand, is made of carbon and provides vibration damping with its longer sheaths. Special features: The brake line runs completely integrated. The rear triangle and fork can accommodate tyres up to 45 mm wide. Alternatively, 650B wheels with up to 50 mm wide tyres can be mounted. In the H30 version, the Terra comes with indestructible Shimano GRX820/610 gears with 2 x 12 drive, plus service-friendly Shimano hydraulic disc brakes. Exclusive to Orbea is the OC cockpit developed in their own labs. With its special shape, the handlebar helps to relax the shoulders and neck. Below the stem, the cables run invisibly into the head tube and on through the frame to the gears and brakes. The ICR Plus system also includes preparation for front mounting of a computer on the stem.

Orbea - High-quality bicycles from Spain

Founded as early as 1840, when it was still an armoury, Orbea has been one of the most important traditional bicycle manufacturers in Spain since the 1930s. Based in the bike-crazy Basque country, the company's philosophy has always been to be close to the sport. Fans know the legendary atmosphere on the roads when the Tour de France makes a detour into the Spanish Pyrenees. Numerous professional teams in MTB and road cycling trust in the quality of the bikes from the Basque Country. We are pleased to be able to offer you Orbea bikes from now on in the Rabe webstore and in our branches.

Additional Information

Bike category Gravel Bike
Brand Orbea
Colour Infinity Green / Ivory White
Model year 2024
Wheel Size 28''
Frame Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube, MMS system
Frame type Diamond
Fork Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1
Customization - only in store
Wheel set Alloy, Tubeless, 700c, 21c
Front hub Orbea Thru Axle 12x100mm M12x2 P1 Solid
Rear hub Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded
Tires Vittoria Terreno Dry Gravel 700x38c
Shifters Shimano GRX RX610
Front derailleur Shimano GRX RX820
Rear derailleur Shimano GRX RX820
Crank Shimano GRX RX610 30x46t
Cassette Shimano HG710 11-36t 12-Speed
Chain Shimano M6100
Brake Shimano RX400 Hydraulic disc
Handlebar OC Gravel GR31-R, Rise 15, Reach 70, Drop 110
Stem OC Road Performance RP21, -6º
Headset FSA 1-1/2" Integrated Aluminium Cup
Saddle Prologo Akero AGX STN size 155mm
Seatpost SP 0.2 Carbon, 27.2mm, Setback 20
