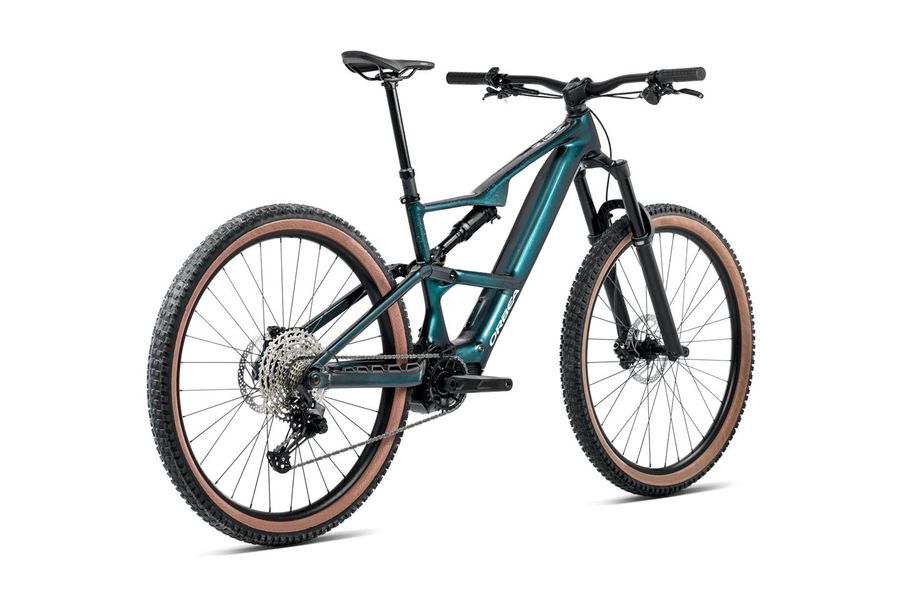

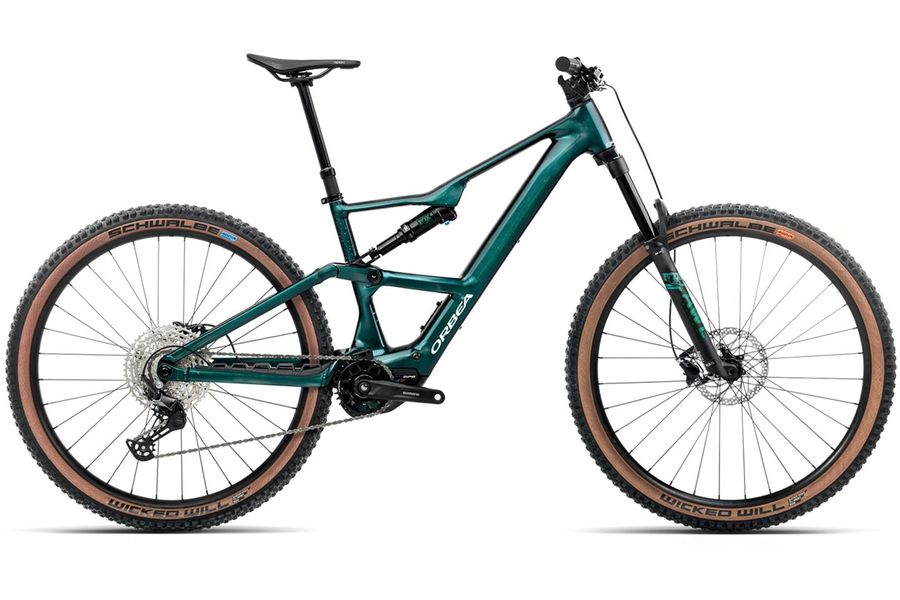

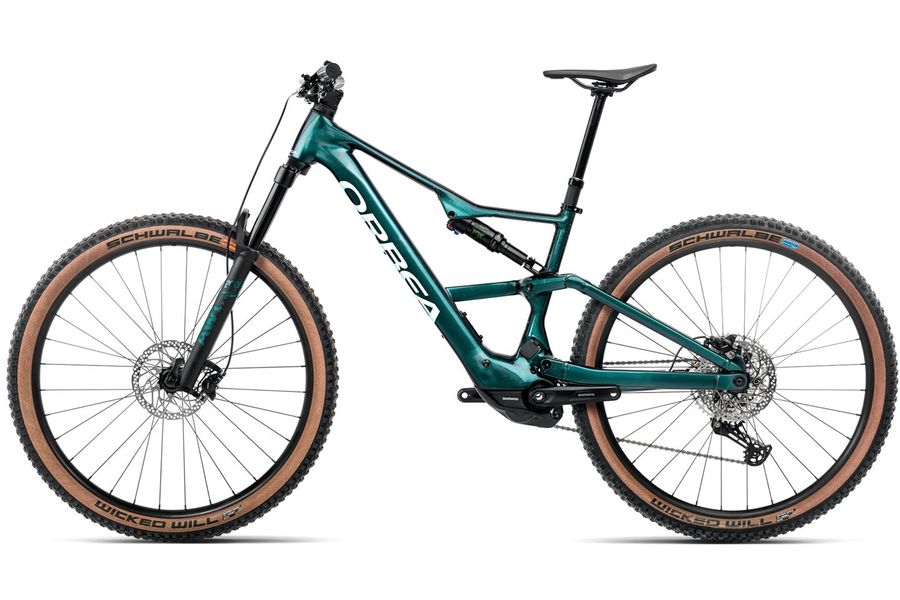

Orbea Rise SL H30 540 Wh (2026)
The lightweight aluminium frame, the weight-optimised equipment and the compact Shimano motor with improved Orbea factory tuning make this e-bike an absolute powerhouse. The new generation of the Rise SL H30 sets standards in the e-fullys class. With a 540 Wh battery, precise Shimano Deore components and high-quality Fox suspension with 140 mm travel, it is the perfect bike for any terrain. Uphill and downhill are equally fun!
Highlights
Frame
Aluminium
Fork
Fox 34 Float AWL Sport (140mm)
Shifter
Shimano Deore M6100 (1x12)
Brakes
Shimano MT201 (180/180)
Rear Shock
Fox Float Performance
Drive Unit
Shimano EP600 RS (85Nm) / Orbea Internal (540Wh)
Additional Information
| General | |
| Bike category | E-MTB Full Suspension |
|---|---|
| Model year | 2026 |
| Colour | Escape Green / Splash Ice Green |
| Fahrraddetails | |
| Price | Price in branch store might be lower. (info@rabe-bike.de / +4989 125 01 01 01) |
| Frame | |
| Frame | Orbea Rise SL Hydro 2025, 140mm travel, 29" wheels, Concentric Boost 12x148 |
| Fork | Fox 34 Float AWL Sport 140 Rail QR15x110 |
| Rear Shocks | Fox Float Performance 2-Pos Evol LV custom tune 210x50mm |
| Headset | Alloy 1-1/2", Black Oxidated Bearing |
| Frame type | Fully |
| Drive | |
| Shifters | Shimano Deore M6100 |
| Rear derailleur | Shimano Deore M6100 SGS Shadow Plus |
| Chain guide | Orbea eBike chainguide |
| Crank | Shimano Steps EM600 |
| Chain rings | e*thirteen Helix Core e*spec Direct Mount 32T 55mm ChainLine |
| Cassette | Shimano CS-M6100 10-51t 12-Speed |
| Chain | Shimano M6100 |
| Ebike | |
| Battery pack | Orbea Internal 540Wh |
| E-Engine | Shimano EP600 RS Gen2 MC |
| Remote | EN600-L |
| Charger | Orbea 2.Generation eBike Smart charger 42V/2-4A |
| Brakes | |
| Brake | Shimano MT201 Hydraulic Disc w/ Shimano SMRT30 Rotors 180mm front / 180mm rear |
| Wheels | |
| Wheel set | Alloy, Tubeless, 29", 29c, 32H |
| Tires | Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Speed Grip, Addix, Brown |
| Wheel Size | 29'' |
| Cockpit | |
| Handlebar | OC Mountain Control MC31, Rise20, Width 800 |
| Stem | OC Mountain Control MC20, 0º |
| Grips | OC Lock On |
| Seat | |
| Saddle | Fizik Terra Ridon X5 145mm |
| Seatpost | OC Mountain Control MC22, 31.6mm, Dropper |
| Other | |
| Customization - only in store | |
| Configuration - available in our stores | |
| Annotation | The illustration may differ. The manufacturer reserves the right to replace certain components with components of equivalent quality. |
| Manufacturer Information | |
| Manufacturer Information | Orbea S. Coop. |
| Product Safety Documents | |
