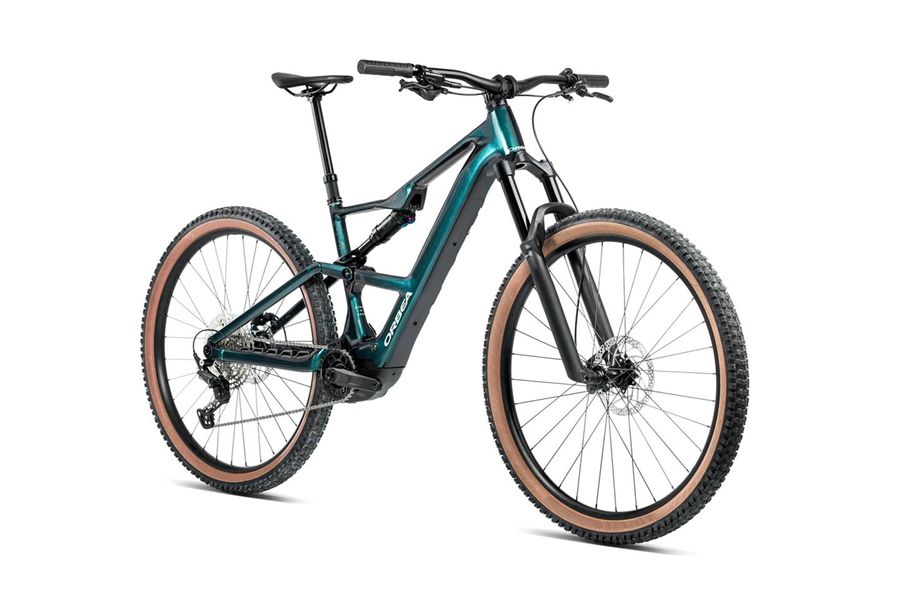

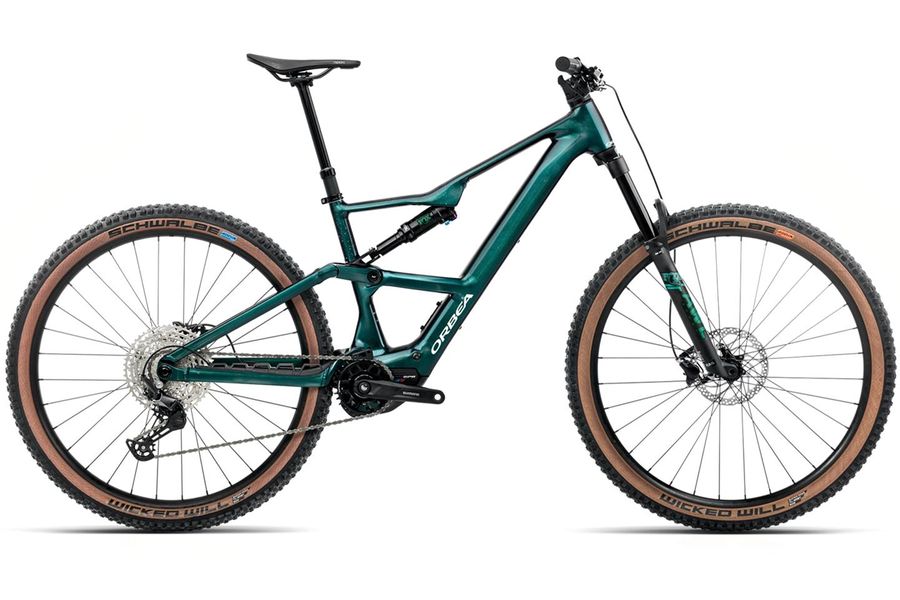

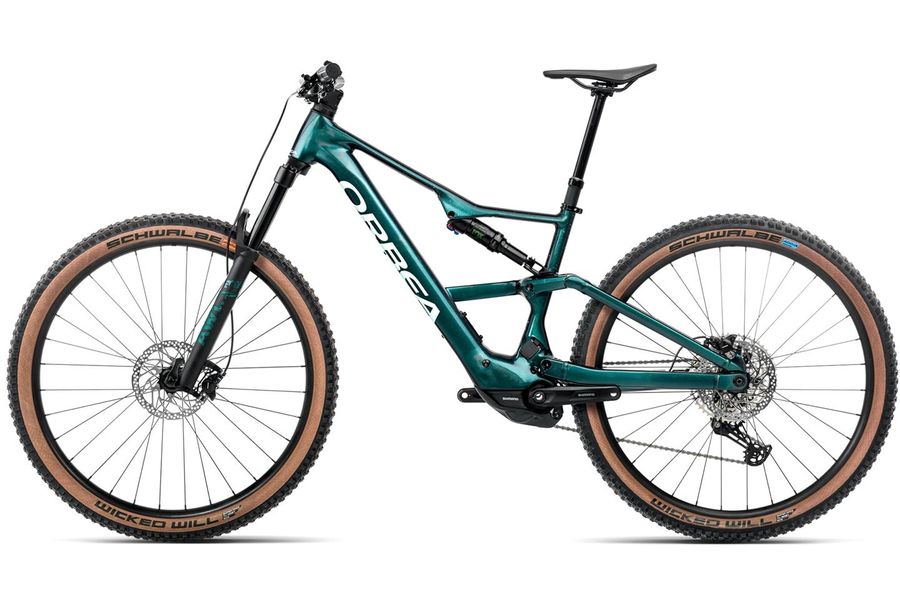

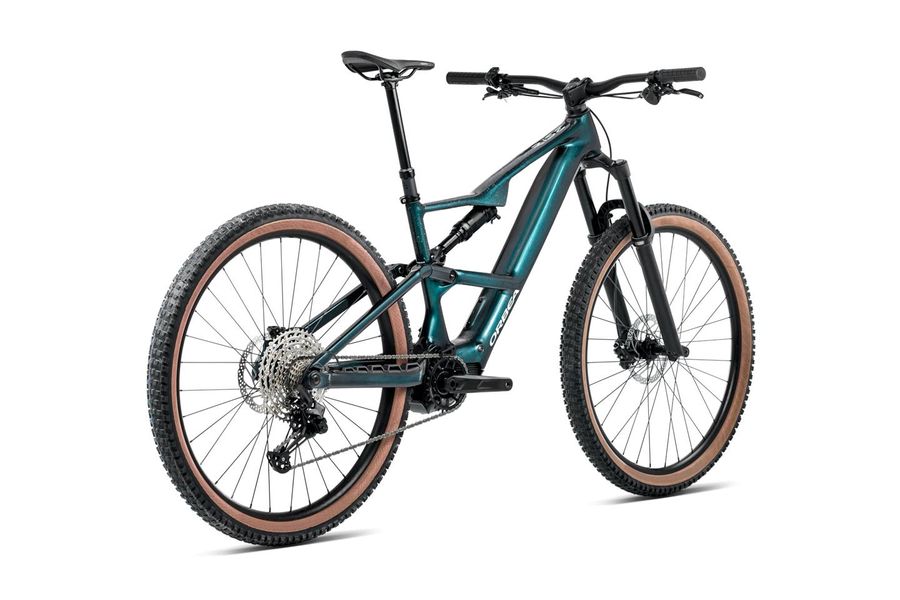

Orbea Rise SL H30 540 Wh (2026)
The lightweight aluminium frame, the weight-optimised equipment and the compact Shimano motor with improved Orbea factory tuning make this e-bike an absolute powerhouse. The new generation of the Rise SL H30 sets standards in the e-fullys class. With a 540 Wh battery, precise Shimano Deore components and high-quality Fox suspension with 140 mm travel, it is the perfect bike for any terrain. Uphill and downhill are equally fun!
More models from the series "Orbea Rise"
- Item 1In Stock32%
- Item 2In Stock32%
- Item 3Sold out
- Item 4Sold out
- Item 5Sold out
Highlights
-
Frame
Aluminium
-
Fork
Fox 34 Float AWL Sport (140mm)
-
Shifter
Shimano Deore M6100 (1x12)
-
Brakes
Shimano MT201 (180/180)
-
Rear Shock
Fox Float Performance
-
Drive Unit
Shimano EP600 RS (85Nm) / Orbea Internal (540Wh)
Additional Information
| General | |
| Bike category | E-MTB Full Suspension |
|---|---|
| Model year | 2026 |
| Colour | Escape Green - Splash Ice Green |
| Frame | |
| Frame | Orbea Rise SL Hydro 2025, 140mm travel, 29" wheels, Concentric Boost 12x148 |
| Fork | Fox 34 Float AWL Sport 140 Rail QR15x110 |
| Rear Shocks | Fox Float Performance 2-Pos Evol LV custom tune 210x50mm |
| Headset | Alloy 1-1/2", Black Oxidated Bearing |
| Frame type | Fully |
| Drive | |
| Shifters | Shimano Deore M6100 |
| Rear derailleur | Shimano Deore M6100 SGS Shadow Plus |
| Chain guide | Orbea eBike chainguide |
| Crank | Shimano Steps EM600 |
| Chain rings | e*thirteen Helix Core e*spec Direct Mount 32T 55mm ChainLine |
| Cassette | Shimano CS-M6100 10-51t 12-Speed |
| Chain | Shimano M6100 |
| Ebike | |
| Battery pack | Orbea Internal 540Wh |
| E-Engine | Shimano EP600 RS Gen2 MC |
| Remote | EN600-L |
| Charger | Orbea 2.Generation eBike Smart charger 42V/2-4A |
| Brakes | |
| Brake | Shimano MT201 Hydraulic Disc w/ Shimano SMRT30 Rotors 180mm front / 180mm rear |
| Wheels | |
| Wheel set | Alloy, Tubeless, 29", 29c, 32H |
| Tires | Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Speed Grip, Addix, Brown |
| Wheel Size | 29'' |
| Cockpit | |
| Handlebar | OC Mountain Control MC31, Rise20, Width 800 |
| Stem | OC Mountain Control MC20, 0º |
| Grips | OC Lock On |
| Seat | |
| Saddle | Fizik Terra Ridon X5 145mm |
| Seatpost | OC Mountain Control MC22, 31.6mm, Dropper |
| Other | |
| Customization - only in store | |
| Configuration - available in our stores | |
| Annotation | The illustration may differ. The manufacturer reserves the right to replace certain components with components of equivalent quality. |
| Manufacturer Information | |
| Manufacturer Information | Orbea S. Coop. |
| Product Safety Documents | |
