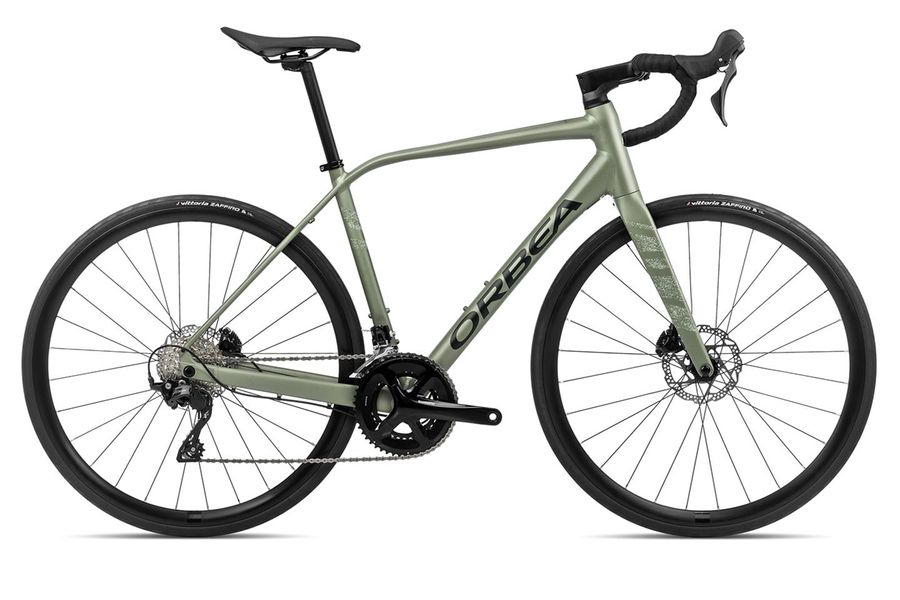

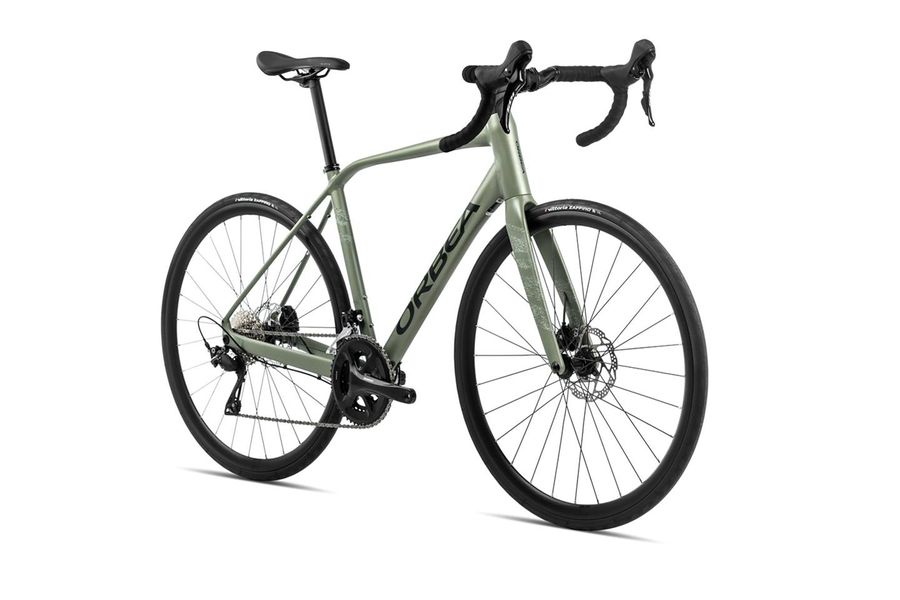

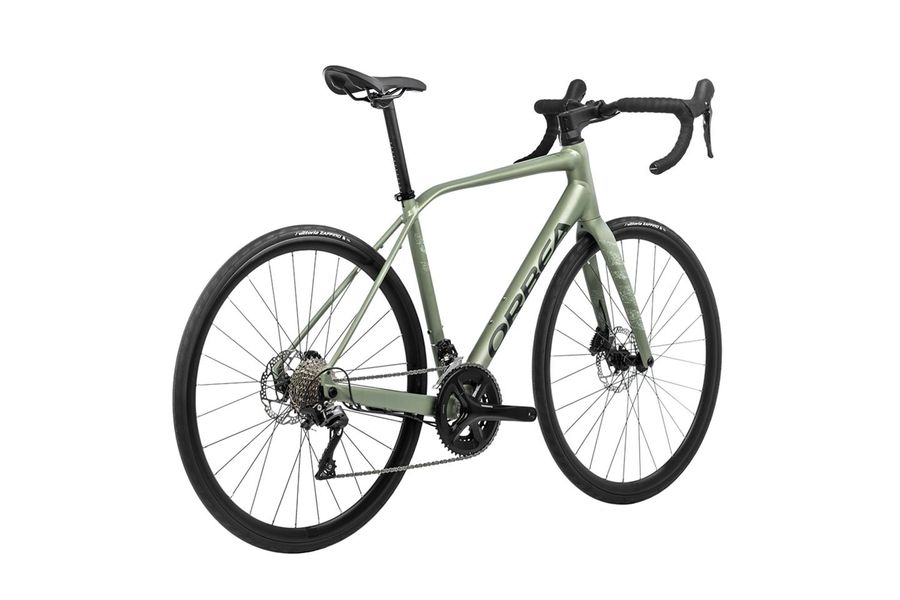

Orbea Avant H30

Item no. 67921
1,999.00 € *
Size
Sporty? Yes, but without torture and grind! Because on the Avant H30 you feel so comfortable thanks to the pleasant geometry that you do not even notice how the kilometers fly by. Typical Orbea you can rely on an excellently processed aluminum frame. The Shimano 105 drivetrain now offers 2 x 12 gears and is ready for any terrain.

Highlights

Frame

Aluminium

Fork

Carbon

Tires

Vittoria Zafiro V 700x28c

Wheelset

28"

Shifter

Shimano RS520/105 (2x12)

Brakes

Shimano R7170

Orbea Avant H30 - Versatile touring racer and all-rounder

Get on it, feel good, have fun. The Avant can simply do it all, from the whimsical after-work ride to the pass marathon in the Alps. Orbea has created the perfect blend of comfort and sportiness with the Avant series: An uncomplicated aluminum racer that shows its own style with its striking design. The geometry ensures with a slightly higher head tube that the handlebars automatically come up a few centimeters. The seat length (reach), i.e. the distance from the saddle to the stem, is also trimmed for comfort with a shorter measurement. The adjustments are subtle but effective. Then there's the exceptional ergonomics of the OC cockpit, which was also developed in Orbea's labs. With its special shape, the handlebar helps to relax the shoulders and neck. Clever detail: the stem is prepared for front mounting of a computer.

In the H30 version, the Avant comes with the indestructible Shimano 105 drivetrain, which has recently been upgraded to 2 x 12 gears. The 105 components have been the benchmark in the mid-range segment for years. The hydraulic disc brakes are also from the market leader Shimano and convince with unsurpassed function and ease of service. At the tubeless wheels thru axles provide high lateral stiffness. In addition, a high-quality Fizik Aliante saddle and sporty Vittoria tires

Hydroformed aluminum frame

As usual with the manufacturer Orbea, the H in the model name indicates that the frame is made of aluminum. Thanks to modern hydroforming technology, the material gives rise to an organic design that follows the flow of forces. Smoothly polished weld seams emphasize the flowing, elegant look of the Avant. The fork, on the other hand, is made of carbon and, like the rear triangle, has integrated mudguard mounting points. Chainstays, seatstays and fork blades provide clearance for tires up to 30 millimeters wide, which should satisfy any comfort requirement. Another highlight: The ICR Plus system is a prime example of clean integration.

Below the stem, the cables run into the head tube and invisible further through the frame to the circuit and brakes.

Additional Information

Bike category Road Bike
Brand Orbea
Colour Metallic Green Artichoke
Model year 2024
Wheel Size 28''
Frame Orbea Avant Hydro disc, hydroformed triple butted aluminium, HS 1,5" ICR, BB 68mm – BSC English, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, SP 27,2mm, MMS system.
Frame type Diamond
Fork Orbea carbon 2021, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout
Customization - only in store
Wheel set Alloy, Tubeless, 700c, 19c, 28H
Front hub Orbea Thru Axle 12x100mm M12x2 P1 Solid
Rear hub Orbea Thru Axle 12x142mm M12x2 P1 Solid
Tires Vittoria Zafiro V Rigid bead 700x28c
Shifters Shimano R7120
Front derailleur Shimano 105 R7100
Rear derailleur Shimano 105 R7100
Crank Shimano RS520 34x50t
Cassette Shimano 105 R7100 11-34t 12-Speed
Chain Shimano M6100
Brake Shimano R7170 Hydraulic Disc
Handlebar OC Road Perfornace RP31-R, Rise 15, Reach 70, Drop 125
Grips Orbea Eva
Stem OC Road Performance RP21, -6º
Headset Acros Alloy 1-1/2" Internal Cable Routing
Saddle Fizik Aliante R5
Seatpost Alloy, 27.2mm, Setback 20
Annotation Illustrations and specifications may vary. The manufacturer reserves the right to replace certain components with components of similar quality.
