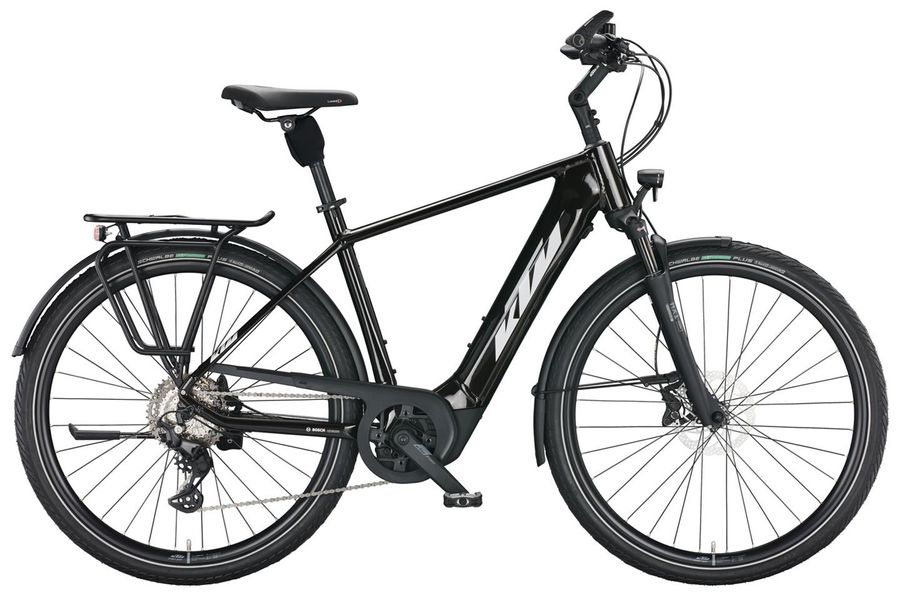

KTM Macina Tour CX 610 Nyon (2022)

Item no. 56175
3,999.00 € *
Variant
Size

From everyday to long distance, the Macina CX610 has everything a versatile e-bike must be able to do. A typical KTM with a lot of comfort, thanks to Suntour suspension fork, suspension seatpost and adjustable stem. Supported by Bosch Performance CX Power.

Highlights

Lighting

B&M Lumotec MYC LED 50Lux

Frame

Aluminium

Fork

SunTour NX1 coil LO (63mm)

Shifter

Shimano Deore (1x10)

Brakes

Shimano MT402/MT420 (180/160)

Drive Unit

Bosch Perf. CX Gen4 (85 Nm) - PowerTube (625 Wh)

KTM Macina Tour CX610 - The touring specialist with the most powerful Bosch drivetrain

In principle, the Macina Tour CX610 is the big brother of the Tour P610. Bigger in the sense of: Equipped with the Bosch Performance CX motor, the flagship in the program of the market leader. So if you occasionally plan multi-day tours with luggage and are not afraid of longer climbs, the Macina Tour CX610 should be the right choice. For explanation: The achievable top speed of 25 km/h is the same for both motors. But the Performance CX has the greater torque of 85 Nm, so it can develop more power. And bring this more explosively to the drive. However, the range of use of the KTM Macina Tour CX610 is not limited to touring! Rather, this all-rounder is also a perfect companion in everyday life or on the way to work. In typical KTM fashion, a lot of emphasis is placed on comfort when it comes to the equipment: In addition to a Suntour NX1 suspension fork, a suspension seatpost and an angle-adjustable stem are also on board.

KTM technology and Bosch drive - integration at its best

The ensemble of compact Performance Motor the PowerTube battery hidden in the down tube not only looks like a single unit, but also has a positive effect on the riding characteristics. The low center of gravity ensures safety. And even with luggage load, the stable aluminum frame never feels spongy. Up to 25 kilos, the carrier is loadable. With the help of the Racktime Snap-it system, the saddlebags are clicked in seconds. Sturdy SKS mudguards, side stand and a day-bright LED lighting system from specialist B&M complete the everyday equipment. An easy-to-read Bosch Nyon display on the handlebars provides information about the battery charge level, range, GPS and numerous other riding data. Shimano components such as the proven Deore gears and low-maintenance disc brakes 4-piston brakes ensure smooth performance. We carry the Macina Tour CX610 in three different frame styles: As a men's version with a diamond frame, as a women's version with a lowered top tube (trapeze) and as a low stepper (US).

Highlights

  • All-round e-trekking bike with high riding comfort
  • Powerful Bosch Performance CX Gen4 motor
  • Enduring 625 Wh battery with long range
  • Shimano disc brakes and Deore 10-speed gears
  • Stable and high-quality full equipment

Additional Information

Bike category Trekking E-Bike
Brand KTM
Colour flaming black (silver+orange)
Weight 27,4kg
Wheel Size 28''
Frame Macina Trekking Onroad Alloy6061; PT625Wh Bosch Gen.4 / T-0450
Frame type Diamond
Fork SunTour NX1 coil LO 63mm
Customization - only in store Anpassen der optimalen Sitzposition entsprechend deiner Anatomie
Cassette Shimano LG600-10 / 11-43
Front hub Shimano Deore M6000 CL 32H 100-5QR
Rear hub Shimano Deore M6000 CL 32H 135-5QR
Tires Schwalbe Energizer Plus Perf. GreenGuard 50-622/Schwalbe Energizer Plus Perf. GreenGuard 50-622
Shifters Shimano Deore M5130-10 LG display
Rear derailleur Shimano Deore M5130-10 LG shadow+
Crank KTM COMP ISIS 170mm Q16
Chain Shimano LG500
E-Engine Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery pack Bosch PowerTUBE 625Wh hor.
Display Bosch Nyon TFT Touch Display with Remote
Charger Bosch STANDARD Charger 4A
Brake Shimano MT402 (3-F) / MT420 4-Piston, Shimano RT30 CL 180/160 magnet
Handlebar KTM Line rizer20 640mm
Grips Ergon GP30 SD with Barend
Stem KTM Line UP3 adjust. 0-90°
Headset KTM Team Trekking 1.1/8''-1.5'' angle limit
Saddle Selle Royal Lookin+
Seatpost SunTour SP17-NCX suspension 30.9/350
Saddle clamp KTM Line JD-SC99 - 34,9mm
Headlight B&M Lumotec MYC LED 50Lux
Back light B&M Toplight 2C LED
Mudguards SKS A55K 55mm black matt
Rack KTM Racktime Tour (snap-it 1.0)
Bike stand KTM 28'' adjust
Annotation Illustrations and specifications may vary. The manufacturer reserves the right to replace certain components with components of similar quality.
