Aluminium
SunTour XCR 34 Air (120mm)
Schwalbe Smart Sam Plus 29''
Shimano XT (1x11)
Tektro HD-M535 (203/180)
Bosch Perf. CX Gen4 (85 Nm) - PowerTube (750 Wh)

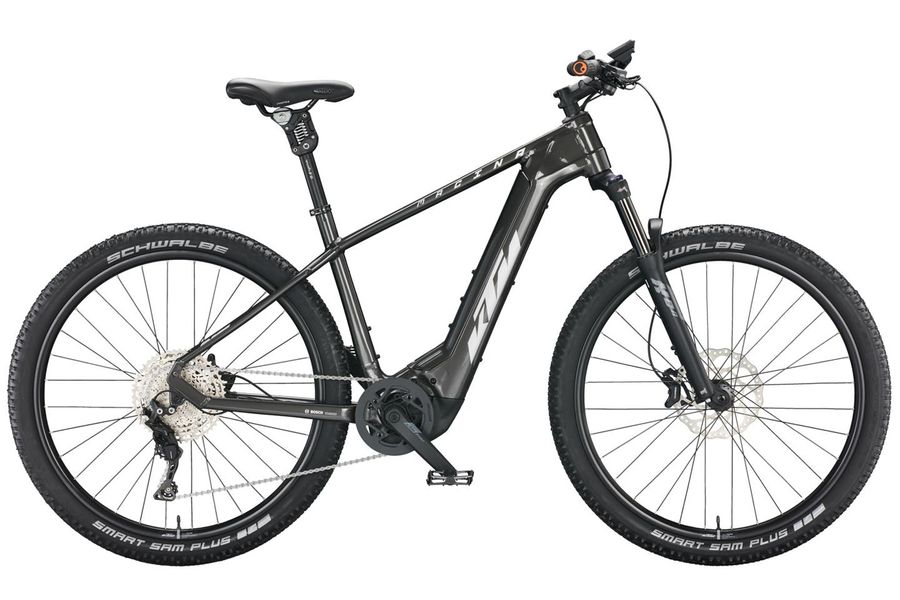

If you're looking for a mountain e-bike that's as versatile as possible, you're sure to find what you're looking for in the range from Austrian manufacturer KTM. For example, the KTM Macina Team XL. This is a well-equipped all-rounder for the mountains and easy terrain. With the Macina Team XL, KTM remains true to its claim of building comfortable e-bikes for extended mountain tours. This is ensured by a 120mm Suntour XCR 34 Air air suspension fork with lockout and a seat geometry that is comfortable for MTBs. In addition, the comfortable saddle sits on a suspended post. A noticeable difference compared to a rigid E-MTB. In terms of equipment, KTM relies on a mix of in-house components, Shimano and Tektro components. For example, this pedelec is equipped with reliable Shimano XT 11-speed derailleur and a Shimano Deore 11-speed cassette with 11-50 teeth. The transmission features the new LinkGlide System (LG), so that every shift is even smoother. In addition, a service-friendly Tektro M535 4-piston brake, including 203mm or 180mm brake discs, is installed. A special feature of the KTM Macina Style XL is the high system weight of 170kg, which allows even larger and heavier riders to fully enjoy this bike.
One of the most successful model series of recent years is once again making history. The technically sophisticated recipe for success sounds quite simple: quality, comfort, performance and style at the highest level.The heart of these bikes is the completely newly developed frame, in combination with the new Bosch Smart System. With this self-contained Bosch system, easily recognizable by the new control unit, you are equipped for the digital future.
The long-lasting 750 watt-hour battery delivers its energy to the 4th generation Bosch Performance CX motor. You will hardly find a more powerful and better motor at the moment. Also state-of-the-art is the new Bosch Kiox 300 display. Here, too, Bosch has come up with something special. The Kiox 300 display is freely configurable via the Bosch Flow app (available from autumn 2021) and software updates for e-bikes can now be carried out from the comfort of your own home. The regulation of the support levels is now also possible for Kiox riders. The PowerTube battery is elegantly hidden in the down tube and brings you with increased 750 watt hours capacity even to distant destinations.
Long-distance capable e-mountain bike
Bosch Kiox 300 display
Long range thanks to 750 Wh battery
Particularly high system weight of 178kg (rider + bike + additional load)
Bike category | E-MTB Hardtail |
---|---|
Brand | KTM |
Colour | machine grey (silver+orange) |
Weight | 27,6kg |
Customization - only in store | Anpassen der optimalen Sitzposition entsprechend deiner Anatomie |
Configuration - available in our stores | Individuelles Fahrwerks Setup durch geschulte Mitarbeiter |
Frame | Macina MTB 29'' Alloy6061; PT750Wh Bosch Gen.4 / M-2706 |
Frame type | Diamond |
Fork | SunTour XCR 34 Air 29'' LOR 120mm 15x110 taper |
Wheel Size | 29'' |
Tires | Schwalbe Smart Sam Plus Perf. DD GreenGuard 57-622/Schwalbe Smart Sam Plus Perf. DD GreenGuard 57-622 |
Rear derailleur | Shimano Deore XT M8130-11 LG shadow+ |
Shifters | Shimano Deore XT M8130-11 LG |
Crank | KTM COMP ISIS 170mm Q16 |
Cassette | Shimano LG600-11 / 11-50 |
Chain | KMC e11 Sport EPT e-bike |
Front hub | DT Swiss 370 6b 32L 110/15 |
Rear hub | DT Swiss 370 6b 32L 148/12 ASF LN18 |
Brake | Tektro HD-M535 4-Piston, Tektro TR-17 2.3mm 6bolt 203/180 |
E-Engine | Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm |
Battery pack | Bosch PowerTUBE 750Wh SMART SYSTEM hor. |
Display | Bosch KIOX TFT Display SMART SYSTEM |
Charger | Bosch STANDARD Charger 4A smart system |
Handlebar | Ergotec low rizer GH15 Savety 740mm |
Grips | Ergon GE10 Evo ergonomic |
Stem | Ergotec Piranha2 6° |
Headset | Acros AICR internal 1.1/8>1.5'' angle limit |
Saddle | Selle Royal Viaggio HRC |
Seatpost | bySchulz G.2 ST suspension 30.9/350 |
Saddle clamp | KTM Team Light CL-FJ21 - 34,9mm |
Annotation | Illustrations and specifications may vary. The manufacturer reserves the right to replace certain components with components of similar quality. |
