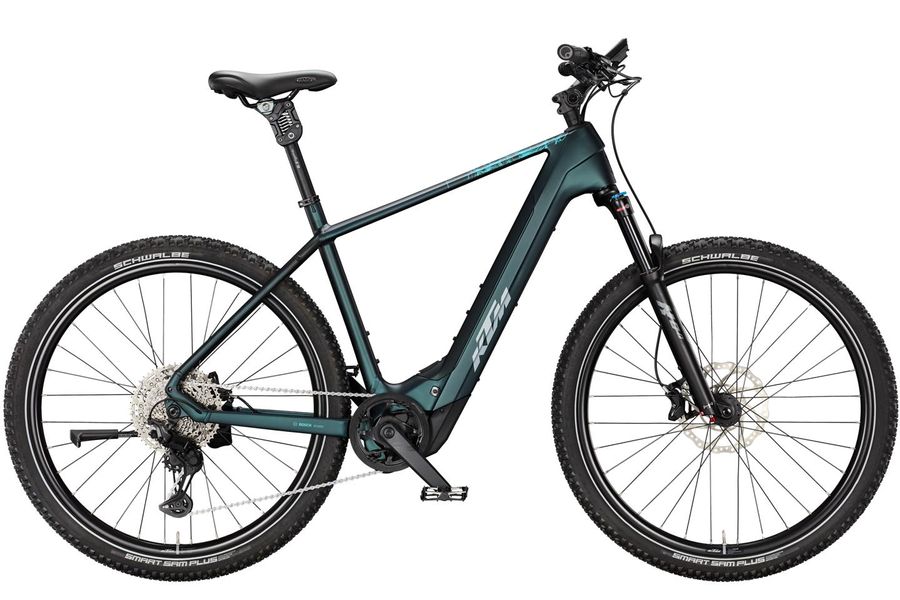

KTM Macina Team 892 XL
Powerful on the climbs and confident on every trail: the KTM Macina Team 892 XL combines the strong support of the Bosch Performance Line CX motor with an 800 Wh battery and sporty hardtail performance. Shimano Deore XT 1x11 shifting and a comfortable suspension fork deliver reliable control and plenty of riding fun on tours and off-road adventures.
Highlights
Frame
Aluminium
Fork
Suntour XCR34 Air (120mm)
Shifter
Shimano Deore XT (1x11)
Brakes
Tektro HD-M750 (203/180)
Drive Unit
Bosch Perf. CX (120Nm) / PowerTube (800Wh)
Additional Information
| General | |
| Bike category | E-MTB Hardtail |
|---|---|
| Model year | 2027 |
| Colour | Dark Sea Matt (Grey) |
| Weight | 26,6 kg |
| Max. total weight | 177 kg |
| Frame | |
| Frame | Macina MTB 29" Alloy 6061 UDH|PT800 Bosch BDU38/M5700 |
| Fork | Suntour XCR34 Air 29" LOR 120mm 15x110 |
| Headset | Acros AICR intern 1.1/8"-1.5" angle lim |
| Frame type | Diamond |
| Drive | |
| Shifters | Shimano DEORE XT M8130-11 LG |
| Rear derailleur | Shimano DEORE XT M8130-11 LG Shadow+ |
| Crank | KTM E-COMP2 ISIS 170mm Q8, FSA steel 38T with chainguard Direct Mount |
| Cassette | Shimano LG400-11 / 11-50 LinkGLIDE |
| Chain | KMC e11 Sport EPT e-bike |
| Ebike | |
| Battery pack | Bosch PowerTUBE 800Wh horizontal |
| E-Engine | Bosch PERFORMANCE CX BDU3840 |
| Display | Bosch KIOX 300 TFT Display |
| Charger | Bosch STANDARD Charger 4A |
| Brakes | |
| Brake | Tektro HD-M750 / E730 4-Piston, Tektro TR-54 2.3mm 6bolt (203/180) |
| Wheels | |
| Rims | Ryde Andra29 32H 622x29C, Ryde Andra29 32H 622x29C |
| Front tire | Schwalbe Smart Sam Plus Perf. GreenGuard 60-622 |
| Rear tire | Schwalbe Smart Sam Plus Perf. GreenGuard 60-622 |
| Wheel Size | 29'' |
| Front hub | DT Swiss 370 6B 32H 110/15TA |
| Rear hub | DT Swiss 370 6B 32H 148/12TA |
| Cockpit | |
| Handlebar | Ergotec low rizer 740mm |
| Stem | Ergotec Swell RE adjust. 0-60° |
| Grips | Ergon GE10 |
| Seat | |
| Saddle | Selle Royal Viaggio |
| Seatpost | bySchulz G.2 ST suspension 30.9/350 |
| Saddle clamp | KTM TEAM Light CL-FJ21 - 34,9mm |
| Acessory | |
| Bike stand | KTM 28" adjustable MY2025 |
| Other | |
| Customization - only in store | |
| Configuration - available in our stores | |
| Annotation | The illustration may differ. The manufacturer reserves the right to replace certain components with components of equivalent quality. |
| Manufacturer Information | |
| Manufacturer Information | KTM Fahrrad GmbH |
| Product Safety Documents | |
