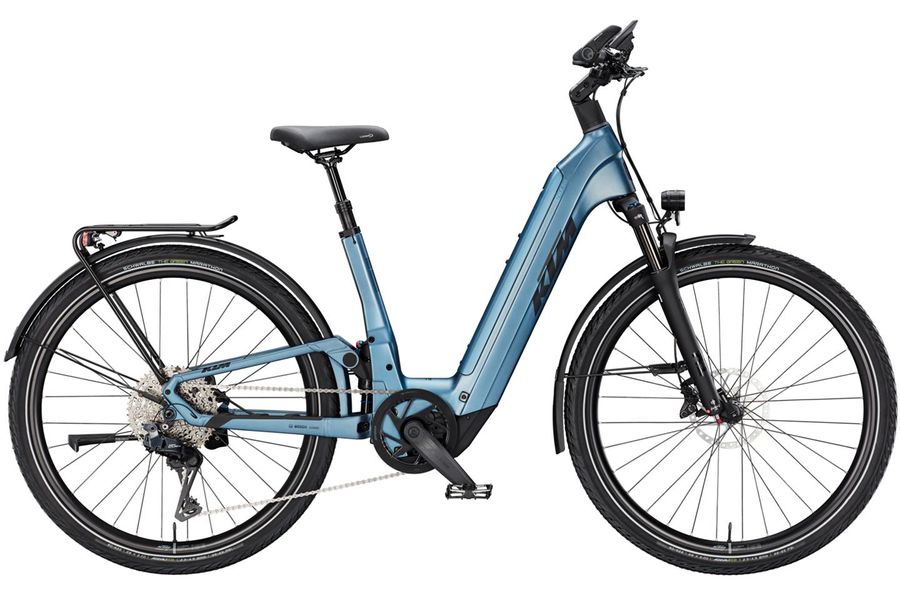

KTM Macina Style FS Prime Di2 US
Experience the comfort of the KTM Macina Style FS Prime Di2 US! This versatile step-through bike with full suspension is ideal for city rides and long tours. Equipped with a Suntour X1 32 AIR fork, Shimano Cues Di2 gears and Shimano MT420 brakes, it offers precise control and safety.
Highlights
Lighting
B&M IQ-XM 120-170 Lux
Frame
Carbon
Fork
Suntour X1 32 AIR (100mm)
Shifter
Shimano CUES Di2 (1x11)
Brakes
Shimano MT402 / MT420 (203/180)
Drive Unit
Bosch Perf. CX (85Nm) / PowerTube (800Wh)
KTM Macina Style FS Prime Di2 US - comfort and versatility for every use
The KTM Macina Style FS Prime Di2 US is a versatile step-through bike with full suspension that is not only ideal for city rides, but also for comfortable, long trips across country.Equipped with a Suntour X1 32 AIR suspension fork, which offers 100 mm of travel, this bike ensures optimum comfort on any terrain so that you can also ride relaxed on uneven roads.
In addition, the Shimano Cues Di2 11-speed drivetrain enables precise and effortless gear changes, while the powerful Shimano MT420 4-piston disc brakes provide safe braking power and give you the confidence you need.A free software update will soon be available that will add an automatic function to the gears, further improving the riding experience and making it even more comfortable.
In addition, the bike is equipped with high-quality B&M IQ-XM lighting, which offers a brightness of 120 to 170 lux and has a practical high beam function. This ensures that you are safe on the road even in poor light conditions. The Schwalbe Marathon tyres offer excellent grip and stability, ideal for long distances and city rides.
Bosch update July 2025: Are you ready for more power?
From July 2025, you can increase the torque of the Gen 5 Bosch motors (BDU38) to up to 100 Nm using the Flow app. Your advantage: noticeably more thrust and up to 400% motor support. You can use the eBike Flow app to customise the riding modes and adapt the performance precisely to your riding style.
Bosch Performance CX - redefining e-biking!
- Powerful motor: The Bosch Performance Line CX motor offers 85 Nm torque (default setting).
- Optimum support: Ideal for steep climbs and long uphill sections.
- Fast response: Improved sensor technology ensures a dynamic and natural riding experience.
- Lightweight: At just 2.8 kg, the motor improves the handling of the e-mountainbike.
- Quiet operation: Quiet operation of the motor for a particularly pleasant ride.
- Revised modes:
- Extended Boost helps to overcome obstacles.
- Improved push assistance offers more control in difficult terrain.
Additional Information
Bike category | E-MTB Full Suspension |
---|---|
Brand | KTM |
Model year | 2025 |
Colour | Steel Blue Matt (Black Glossy) |
Price | Price in branch store might be lower. (info@rabe-bike.de / +4989 125 01 01 01) |
Weight | 29,2 kg |
Wheel Size | 27,5'', 29'' |
Frame | Macina Style Perf. Carbon VPP100 UDH PT800 Bosch BDU38/T5880 |
Frame type | Fully |
Rear Shocks | Suntour EDGE-EVO 2CR 190x45 |
Fork | Suntour X1 32 AIR 27,5" LOR 100mm taper |
Customization - only in store | |
Wheel set | KTM Line - Ambrosio Sport 25 32H 584 o. 622x25TC // Ambrosio Sport 25 32H 622 o. 622x25C |
Cassette | Shimano LG400-11 / 11-50 |
Front hub | Shimano TC500B CL 32H 110-15TA |
Rear hub | Shimano TC600B CL 32H 148-12TA |
Front tire | Schwalbe Green Marathon Perf. GreenGuard 55-584 / 50-622 |
Rear tire | Schwalbe Green Marathon Perf. GreenGuard 55-584 / 50-622 |
Shifters | Shimano Di2 EN605 wireless |
Rear derailleur | Shimano CUES Di2 U8050-11 SGS shadow |
Crank | KTM E-TEAM2 ISIS 170mm Q8 |
Chain rings | steel 42T with chainguard Direct Mount |
Chain | Shimano LG500 |
E-Engine | Bosch PERFORMANCE CX BDU3840 - 25km/h / 85Nm |
Battery pack | Bosch PowerTUBE 800Wh horizontal |
Display | Bosch KIOX 500 TFT Display |
Remote | Bosch LED remote |
Charger | Bosch Standard Charger 4A |
Brake | Shimano RT64 CL 180 / EM600 CL 180 magnet |
Brake caliper | Shimano MT402 (3-F) / MT420 4-Piston |
Handlebar | KTM TEAM II rizer15 700mm |
Grips | Ergon GP30 |
Stem | KTM adjust. 0-60° ICR |
Headset | Acros headsetcover OD62 Phyton |
Saddle | Selle Royal Lookin Evo |
Seatpost | KTM Line II dropper 30.9 T:100 |
Saddle clamp | KTM Line JD-SC140A - 35,0mm |
Headlight | B&M IQ-XM 120-170 Lux HighBeam |
Back light | B&M Toplight 2C |
Mudguards | SKS A65R PET Trek |
Rack | KTM Alumee (snap-it 2.0 + monkeyload) +rack clip |
Bike stand | KTM 28" adjustable MY2025 |
Further details | Size Split 27,5": XS // 29": S M L |
Annotation | |
Manufacturer Information | KTM Fahrrad GmbH |
