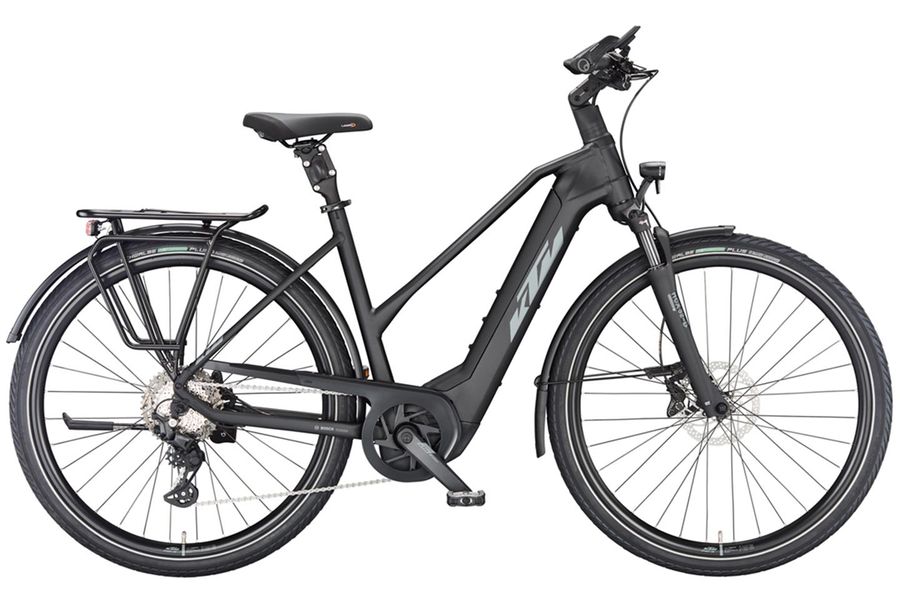

KTM Macina Style 730 Trapez

Item no. 65315
3,629.00 € *
4,299.00 € Save 670.00 € **
15%
Variant
Size

Everyday life, touring, long distance. The KTM Macina Style 730 can do everything - but without stress! This is ensured by reliable Shimano components, comfortable suspension elements and an extremely variable seating position. The e-support is up to date with Bosch Performance CX Smart System and 750-Wh endurance.

Highlights

Lighting

B&M Lumotec MYC LED 50Lux

Frame

6061 Aluminium

Fork

Suntour NCX32-D coil LO (63mm)

Shifter

Shimano Deore LG (1x10)

Brakes

Shimano MT402 /MT420 (180/160)

Drive Unit

Bosch Perf. CX Gen4 (85Nm) / PowerTube (750Wh)

KTM Macina Style 730 - The comfort miracle among trekking e-bikes

Things evolve! And that's a good thing. The smart system from Bosch was the reason for KTM to give the frame of the Macina Style 730 a makeover. All drive components are now connected via Bluetooth and can be controlled via an app on the smartphone. With the modern drive, this comfortable all-round, city and touring e-bike is state of the art. The riding characteristics, geometry and equipment of the Macina Style series are designed to make the riding experience as pleasant as possible. This is ensured by a suspension fork, a high-quality suspension seatpost with parallelogram technology and a multi-adjustable cockpit.

The Macina Style 730 comes with a stable Suntour NCX32-D suspension fork, which was specially developed for e-bikes. At the rear, the unique KTM parallelogram seatpost ensures sensitive suspension comfort. A real alternative to a heavy full-suspension e-bike. KTM relies on reliable Shimano components for the gears and disc brakes: Deore 10-speed gears and service-friendly disc brakes. And thanks to the complete road equipment with light system, luggage rack and side stand, you can start your first tour immediately.

Bosch Performance CX - Fully networked thanks to smart system

The compact Bosch Performance CX motor in its fourth generation is and remains the undisputed market leader when it comes to powerful support and harmonious power delivery. The latest update brings the drive into the future under the term "smart", in that the motor, battery, display and remote control can now be coupled with the smartphone via Bluetooth. With the help of the eBike Flow app, updates can be carried out, new functions installed, data recorded or the support levels adjusted to personal preferences. Part of the Smart family is the currently most enduring Bosch InTube battery with 750 watt hours.

Three different frame shapes for all areas of use

Whether rider or driver. Whether more comfort or more sportiness. The Macina Style 730 is available in three different frame shapes: 1. as a classic diamond frame, popular with men but also more and more common among women. 2. as a trapezoidal frame, where the top tube drops sharply towards the rear and starts at about half the height of the seat tube. A good compromise between sportiness and comfort. 3. as a low frame (US) with a completely open step-through for maximum comfort.

Additional Information

Bike category Trekking E-Bike
Brand KTM
Model year 2023, 2024
Colour Black Matt (Grey+Orange)
Weight 27,9 kg
Wheel Size 28''
Frame Macina Trekking Onroad Alloy6061; PT750Wh Bosch Gen.4 / T-2940
Frame type Trapeze
Fork Suntour NCX32-D coil LO 63mm
Customization - only in store
Rims Ambrosio Sport 25 700C 32H 622x25C
Cassette Shimano LG600-10 / 11-43
Front hub Shimano Deore M6000 CL 32H 100-5QR
Rear hub Shimano Deore M6000 CL 32H 135-5QR
Front tire Schwalbe Energizer Plus Perf. GreenGuard 50-622
Rear tire Schwalbe Energizer Plus Perf. GreenGuard 50-622
Shifters Shimano Deore M5130-10 LG display
Rear derailleur Shimano Deore M5130-10 LG shadow+
Crank KTM E-COMP ISIS 170mm Q16
Chain rings FSA steel 42T Direct Mount
Chain Shimano LG500
E-Engine Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm
Battery pack Bosch PowerTUBE 750Wh SMART SYSTEM hor.
Display Bosch LED remote SMART SYSTEM / Bosch INTUVIA 100 LCD Display SMART SYSTEM
Charger Bosch STANDARD Charger 4A SMART SYSTEM
Brake Shimano MT402 (3-F) / MT420 4-Piston, Shimano RT30 CL 180 / 160
Handlebar KTM Line rizer20 640mm
Grips Ergon GP30 SD with Barend
Stem KTM adjust. 0-60° ICR
Headset Acros AICR internal 1.1/8"-1.5" angle limit
Saddle Selle Royal Lookin+
Seatpost KTM COMP II parallelogramm 30.9/350
Saddle clamp KTM Line JD-SC99 - 34,9mm
Headlight B&M Lumotec MYC LED 50Lux
Back light B&M Toplight 2C LED
Mudguards SKS A55K 55mm black matt
Rack KTM tour (snap-it 1.0)
Bike stand KTM 28" adjustable
Annotation Illustrations and specifications may vary. The manufacturer reserves the right to replace certain components with components of similar quality.
