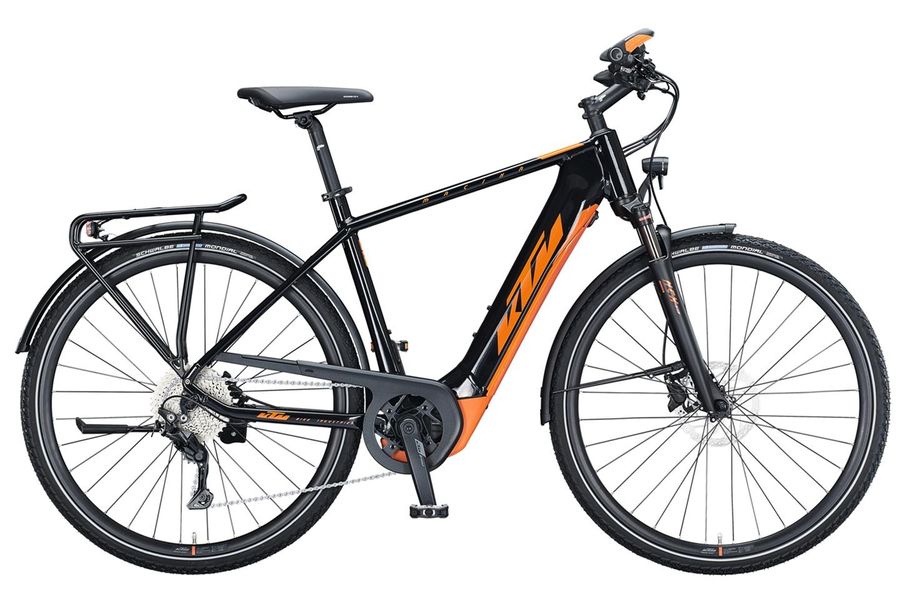

KTM Macina Sport 630 (2021)
You want to be sporty, but still be on the move in comfort? That's exactly what the KTM Macina Sport 630 with its powerful Bosch Performance CX motor and reliable Shimano components stands for.
More models from the series "KTM Macina Sport"
- Item 1In Stock

- Item 2In Stock

- Item 3In Stock

- Item 4In Stock

- Item 5In Stock

- Item 6In Stock

- Item 7In Stock

- Item 8In Stock

- Item 9In Stock

- Item 10In Stock22%

Highlights
-
Lighting
B&M Lumotec MYC LED 50Lux
-
Frame
Alloy 6061
-
Fork
Suntour NCX-D coil LO (63 mm)
-
Shifter
Shimano Deore (1x10)
-
Brakes
Shimano MT200 (180/160)
-
Drive Unit
Bosch Perf. CX Gen4 (85 Nm) - PowerTube (625 Wh)
KTM Macina Sport 630 - City and touring all-rounder
If you mainly ride on asphalt and paved roads, an e-bike from the Macina Sport series is the best choice. Because the Macina Sport 630 is equipped with easy-running 28-inch wheels and slightly narrower tyres. In addition, the flatter handlebars provide a sporty seating position. As a premium manufacturer, KTM is constantly developing its e-bikes further.
The power of the Bosch Performance CX motor
The 4th generation Bosch Performance CX motor, introduced last year, will again set the standard for e-bike drive technology in 2021. Hardly any other motor intervenes so harmoniously and powerfully in the drive. An easy-to-read Bosch Intuvia Display provides you with all the important information you need while riding, for example about the selected assistance level and the remaining range. The PowerTube battery is elegantly concealed in the down tube and with a capacity of 625 watt hours it will take you to even the most distant destinations. For the high-quality equipment, KTM relies on a mix of in-house components and proven Shimano parts. The concept works: The Shimano Deore 10-speed is one of the most reliable gears on the market. And this also applies to the service-friendly disc brakes.
Highlights
- Bosch Performance CX Gen4 engine (85 Nm)
- Integrated PowerTube battery with 625 Wh endurance
- Reliable Shimano Deore 10-speed gears
- Low maintenance Shimano disc brakes
What are the differences between the KTM Macina Sport models? You can find explanations and further information about the bike on the following page:
Additional Information
| General | |
| Bike category | Trekking E-Bike |
|---|---|
| Colour | metallic black (orange) |
| Weight | 24,5 kg |
| Max. total weight | 142 kg |
| Frame | |
| Frame | Macina Trekking Onroad Alloy6061; PT625Wh Bosch Gen.4 / T-0450 |
| Fork | Suntour NCX-D coil LO 63mm |
| Headset | KTM Team eTrekking 1.1/8"-1.5" angle limit |
| Frame type | Diamond |
| Drive | |
| Rear derailleur | Shimano Deore M4120-10 SGS shadow |
| Crank | KTM TEAM ISIS 170mm Q16, FSA Megatooth steel 42T |
| Cassette | Shimano Deore M4100-10 / 11-42 |
| Chain | KMC e10 EPT e-bike |
| Ebike | |
| Battery pack | Bosch PowerTUBE 625Wh hor. |
| E-Engine | Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm |
| Display | Bosch INTUVIA LCD Display with Remote |
| Charger | Bosch STANDARD Charger 4A |
| Brakes | |
| Brake | Shimano MT200 / MT200 2-Piston, Shimano RT30 CL 180 / 160 |
| Brake lever | Shimano Deore M4100-10 display |
| Wheels | |
| Rims | Ambrosio Track Disc 32H 622x20C |
| Front hub | KTM Line - Shimano Deore M6000 CL 32H 100-5QR |
| Rear hub | KTM Line - Shimano Deore M6000 CL 32H 135-5QR |
| Front tire | Schwalbe Marathon Mondial Perf. RaceGuard 42-622 |
| Rear tire | Schwalbe Marathon Mondial Perf. RaceGuard 42-622 |
| Wheel Size | 28'' |
| Cockpit | |
| Handlebar | KTM Line low rizer 640mm |
| Stem | KTM Line 17° |
| Grips | Ergon GP30 SD with Barend |
| Seat | |
| Saddle | Selle Royal Essenza |
| Seatpost | KTM Line 30.9/350 |
| Light | |
| Headlight | B&M Lumotec MYC LED 50Lux |
| Back light | B&M Toplight 2C LED |
| Acessory | |
| Mudguards | SKS A55K 55mm black matt |
| Rack | KTM Racktime light (snap-it 1+2) |
| Bike stand | KTM 28" adjust |
| Other | |
| Annotation | The illustration may vary. The manufacturer reserves the right to replace certain components with components of equivalent quality. |
| Manufacturer Information | |
| Manufacturer Information | KTM Fahrrad GmbH |
