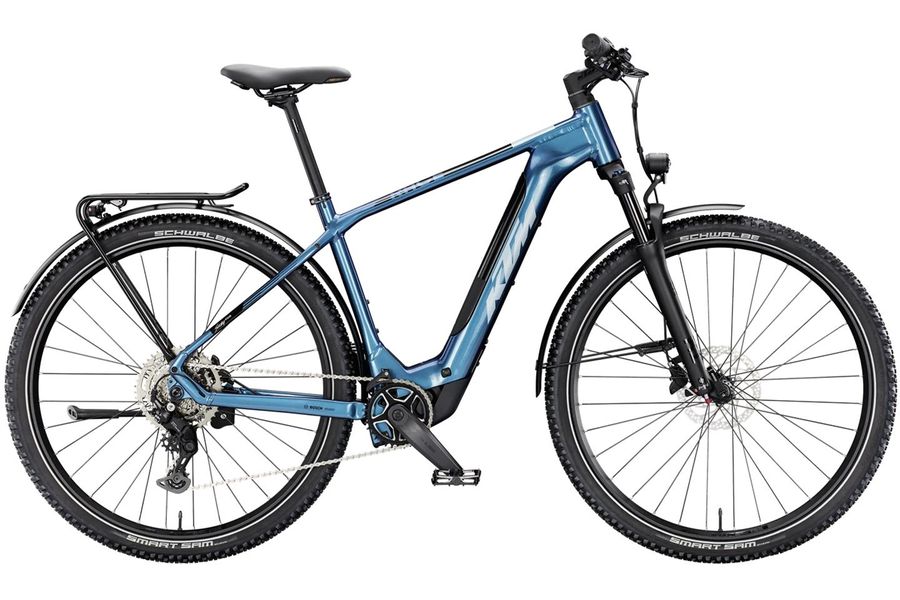

KTM Macina Race SX LFC

Item no. 83980
2,759.00 € *
3,499.00 € Save 740.00 € **
21%
[1]
Size

The KTM Macina Race SX LFC 2025 is a lightweight, touring-oriented e-hardtail with a Bosch Performance SX motor and 400 Wh battery. Suntour X1 32 Air fork and full everyday equipment offer comfort, everyday usability and dynamics for commuters and touring cyclists.



Highlights

Lighting

Litemove SEC-150

Frame

Aluminium

Fork

SR Suntour X1 32 (100mm)

Shifter

Shimano CUES (1x9)

Brakes

Shimano MT201/MT200 (180/160)

Drive Unit

Bosch Perf. SX (55Nm) / CompactTube (400Wh)

KTM Macina Race SX LFC - Lightweight e-hardtail for beginners and intermediates with full equipment

As a robust e-hardtail, the KTM Macina Race SX LFC offers the perfect combination of efficience and reliability. The compact Bosch Performance SX motor enables a sporty and agile riding experience that is particularly impressive on mixed terrain. The lightweight construction of the bike achieves a natural riding feel, as is familiar from conventional mountain bikes - ideal for beginners and ambitious riders alike.

The high-quality aluminium frame and the Suntour X1 32 Air suspension fork with 100 mm travel offer excellent comfort on uneven terrain. The Shimano CUES 9-speed drivetrain ensures precise shifting, while the powerful Shimano MT200/201 2-piston disc brakes guarantee reliable braking performance. With robust components and well thought-out equipment, including lights and mudguards, the KTM Macina Race SX LFC is the ideal companion for everyday use but also for weekend adventures.

Bosch Performance SX - The sporty motor generation

The compact Bosch Performance SX motor provides a smooth and powerful riding experience with 55 Nm of torque. Thanks to the lightweight design concept, less energy is required for acceleration, resulting in an agile and dynamic ride. The Bosch CompactTube battery with 400 Wh capacity offers a reliable range, which can be optionally extended by a further 250 Wh with a range extender. The Performance SX drive can also be linked to the eBike Flow app via Bluetooth, allowing customised tuning options and simple firmware updates.

Additional Information

General
Bike category E-MTB Hardtail
Model year 2025
Colour Moonlite Meadow
Weight 22.1 kg
Max. total weight 140 kg
Frame
Frame Macina MTB 29" Alloy 6061 UDH CPT400 Bosch BDU31 / M-4810
Fork SR Suntour X1 32 AIR 29" LOR 100mm taper
Headset Acros AICR internal 1.1/8"-1.5" angle limit
Frame type Diamond
Drive
Shifters Shimano CUES U4000-9 display
Rear derailleur Shimano CUES U4000-9 LG shadow
Crank KTM E-TEAM2 ISIS 170mm Q8
Cassette Shimano LG400-9 / 11-46
Chain KMC e500 LG e-bike
Ebike
Battery pack Bosch CompactTUBE 400Wh
E-Engine Bosch PERFORMANCE SX BDU3144 - 25km/h / 55Nm
Remote Bosch Remote
Display Bosch Purion 200
Brakes
Brake Shimano MT201 / MT200 2-Piston, Shimano RT30 CL 180 / RT30 CL 160
Wheels
Wheel set KTM Line - Shimano TC500B CL 32H 110-15TA, Black Jack Ready30 32H 622x30TC, DT Champion 2.0 black \ KTM Line - Shimano TC500B CL 32H 148-12TA, Black Jack Ready30 32H 622x30TC, DT Alpine II 2.34 black
Tires Schwalbe Smart Sam Perf. 57-622 Reflex
Wheel Size 29''
Cockpit
Handlebar KTM TEAM II rizer15 720mm
Stem KTM COMP +7° ICR
Grips KTM COMP Ergo Lock
Seat
Saddle Selle Royal Explora Athletic Gel
Seatpost KTM TEAM II 27.2/400
Light
Headlight Litemove SEC-150 150Lux down
Back light AXA Juno
Acessory
Mudguards SKS EVO AL 65mm 28" rear
Rack KTM Alumee (snap-it 2.0 + monkeyload) +rack clip
Bike stand Hebie 28" adjustable
Other
Customization - only in store
Configuration - available in our stores
Annotation The illustration may differ. The manufacturer reserves the right to replace certain components with components of equivalent quality.
Manufacturer Information
Manufacturer Information
Product Safety Documents
