Carbon
RockShox Domain RC (180mm)
Shimano XT/Deore (1x12)
Shimano M4100/MT420 (203/180)
FOX Float X Performance
Bosch Perf. CX Gen4 (85Nm) / PowerTube (750Wh)

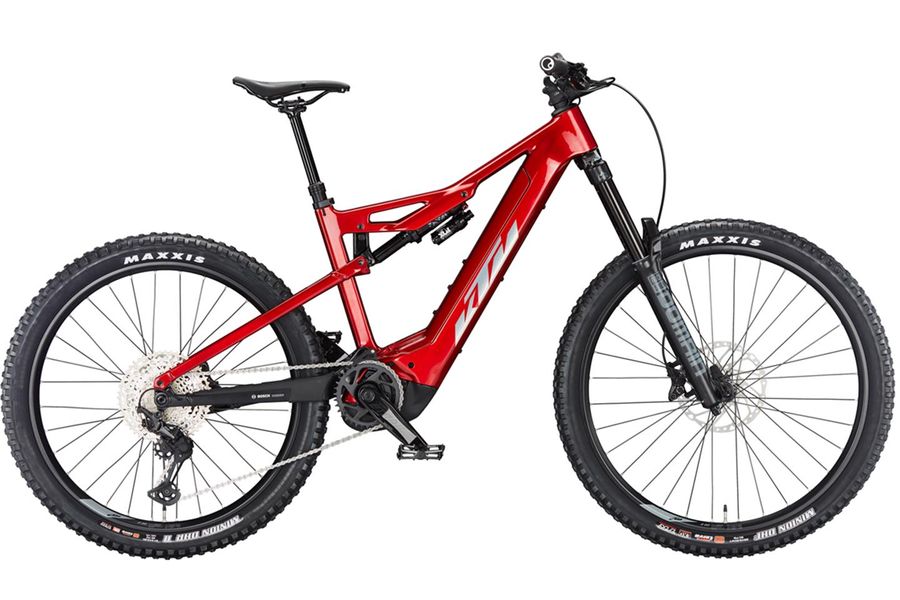

180 millimetres of suspension travel is the claim of KTM's Prowler series! A flawless E-Enduro, built for the toughest trails and the steepest descents. This machine guarantees endless riding fun, because the Austrian motocross specialist knows how to build such chassis. The frame of the Prowler series combines sensitive response with an agility that you wouldn't expect from this machine at first glance. The outstanding handling is largely due to the carbon frame, whose rear triangle responds to even the smallest obstacles thanks to the Straight Line Link System (SSL). Uphill, the powerful Bosch Performance CX drive saves you the shuttle. And not just once a day, because the 750-Wh battery will probably last longer than you! Following the latest findings, KTM relies on a stable mixed wheelset when it comes to ground contact: At the front, a 29-inch wheel ensures optimum riding stability and steering precision. At the rear, a high-traction 27.5-inch wheel digs into the ground.
As an entry-level model in the Macina Prowler series, the Elite is equipped with a sensible mix of components, with a focus on functionality. The chassis combines a RockShox Domain RC suspension fork with a Fox Float X Performance rear shock. The performance of the Shimano XT 12-speed gears leaves nothing to be desired. And thanks to sturdy Shimano Deore disc brakes with 4-piston calipers and a 203 mm brake disc on the front wheel, you can throw yourself into any steep descent. Don't worry, the Maxxis Minion DHF and DHR II tyres ensure optimum traction.
All drive components are part of the smart system from Bosch. The compact Bosch Performance CX Gen4 is the most powerful motor in the market leader's range. You can feel it in every riding situation, especially when the going gets really tough uphill. The command centre of the drive is the new LED remote thumb switch. The compact control unit offers all the necessary basic functions to control the e-bike. From the display of the riding mode to the charging status of the battery. The outstanding capability of the smart system, however, is a Bluetooth connection with your smartphone. With the help of the eBike Flow app, you can adjust the drive to your wishes and use many other functions: Individual dosage of motor power for each support mode, theft protection, navigation and automatic firmware updates. This way, you can keep your e-bike up to date at the touch of a button.
Bike category | E-MTB Full Suspension |
---|---|
Brand | KTM |
Model year | 2023, 2024 |
Colour | Chrome Red (Chrome+Orange+Blue) |
Weight | 25,8 kg |
Customization - only in store | |
Configuration - available in our stores | |
Frame | Macina Prowler Dimmix Perf. Carbon SLL-LTE 170mm UDH; PT750 Bosch Gen.4 / M-2236 |
Frame type | Fully |
Fork | RockShox Domain RC 29" 180mm 15x110 taper |
Rear Shocks | FOX Float X Performance 2-Pos 250x75 |
Wheel Size | 27,5+, 29'' |
Front tire | Maxxis Minion DHF 3C-MaxxTerra/EXO/TR 63-622 |
Rear tire | Maxxis Minion DHR II 3C-MaxxTerra/EXO/TR 70-584 |
Rims | 12TA |
Rear derailleur | Shimano Deore XT M8100-12 SGS shadow+ |
Shifters | Shimano Deore M6100-12 |
Crank | KTM E-TRAIL ISIS 160mm Q16 |
Chain rings | FSA Megatooth steel 36T 12speed Direct Mount |
Cassette | Shimano Deore M6100-12 / 10-51 |
Chain | Shimano M6100-12 |
Front hub | Shimano MT410B CL 32H 110-15TA |
Rear hub | Shimano MT410B CL 32H 148-12TA |
Brake | Shimano M4100 / MT420 4-Piston, Shimano RT64 CL 203 / 180 |
E-Engine | Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm |
Battery pack | Bosch PowerTUBE 750Wh SMART SYSTEM hor. |
Display | Bosch LED remote SMART SYSTEM |
Charger | Bosch STANDARD Charger 4A SMART SYSTEM |
Handlebar | KTM Team Trail35 rizer25 800mm |
Grips | Ergon GA20 |
Stem | KTM TEAM II Trail35 |
Headset | Acros AICR internal 1.1/8"-1.5" angle limit |
Saddle | Selle San Marco Ground Short Open Fit Narrow |
Seatpost | KTM COMP II dropper internal |
Saddle clamp | KTM Line JD-SC140A - 35,0mm |
Max. total weight | 145 kg |
Annotation | The illustration may differ. The manufacturer reserves the right to replace certain components with components of equivalent quality. |
Manufacturer Information | KTM Fahrrad GmbH |
