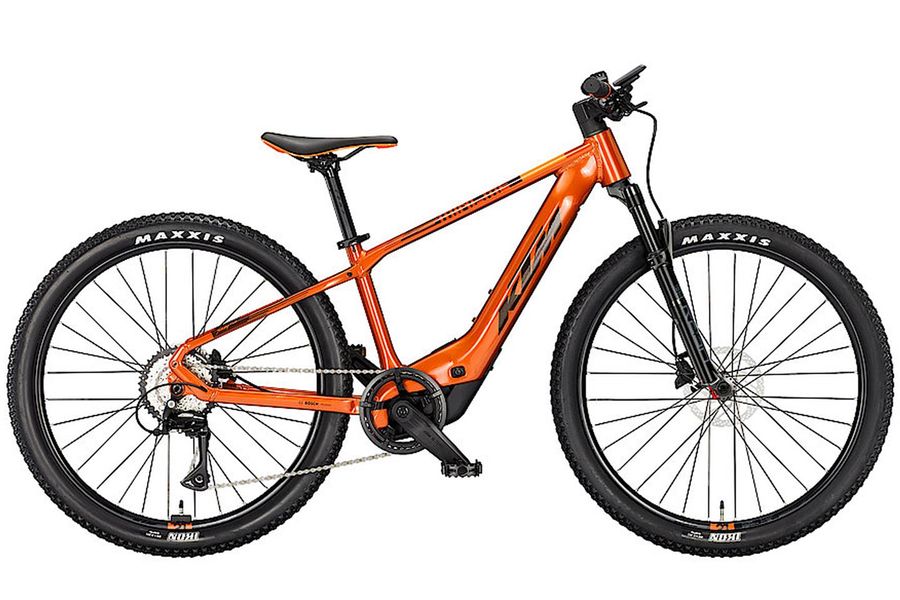

KTM Macina Mini Me SX 26

Item no. 69478
2,879.00 € *
3,199.00 € Save 320.00 € **
10%
Size
The introduction of the Bosch SX drive unit marks the next milestone in the long history of the Mini Me children's e-bike. When developing the new frame concept, the focus was on low weight and playful handling. Thanks to child-friendly geometry and customised components, nothing stands in the way of a family outing.

Highlights

Frame

Aluminium

Fork

RockShox Judy Gold RL (80mm)

Tires

Maxxis Ikon 56-559

Shifter

Shimano Acera (1x8)

Brakes

Shimano MT200 (160/160)

Drive Unit

Bosch Perf. SX (55Nm) / PowerTube (400Wh)

KTM Macina Mini Me SX 26 - E-mountainbike designed for kids and teenagers

Due to the low body weight of children, the weight of the bike plays a much greater role than with bikes for adults. The new, lightweight Bosch Performance SX motor therefore offers the best prerequisites for building more child-friendly e-bikes than was previously possible. The Austrian manufacturer KTM, a leader in the development of children's and youth bikes for years, has realised this opportunity in an exemplary manner with the Mini Me SX models. With 26-inch wheels and a frame height of around 38 centimetres, the SX 26 is suitable for children from around ten years of age. The top tube slopes low towards the rear to ensure maximum freedom of movement. This is because when the child slides forwards from the saddle into a standing position, they must be able to stand freely above the bike at all times.

Robust and child-friendly - that's how you could summarise the features of the Mini ME SX 26 in two words. In detail, this means that the RockShox Judy Gold RL suspension fork can be easily adjusted to the low body weight of children using air pressure. The short stem and narrow handlebars put the child in an upright and safe riding position. And components such as the reliable Shimano Acera 8-speed gears and hydraulic Shimano disc brakes can also be found on e-bikes for adults.

Bosch Performance SX - The new, lightweight motor generation

With a torque of 55 Nm, the Bosch Performance SX motor is predestined for small and light e-bikes such as the Mini Me models. In the interests of safety for children, the motor's assistance is cut off at 20 km/h instead of the usual 25 km/h. With less volume and weight, the 400 Wh CompactTube battery in the down tube also fits in perfectly. Together with the Intuvia 100 display, the ensemble is part of the Bosch Smart System and is therefore state of the art. The drive can be connected to the eBike Flow app via Bluetooth. This opens up a wide range of tuning options and makes firmware updates easier than ever.

Additional Information

Bike category Kids E-Bike
Brand KTM
Model year 2024
Colour Burnt Orange (Dark Orange+Orange)
Weight 16,9 kg
Customization - only in store
Configuration - available in our stores
Frame Macina MTB 26" Alloy 6061 CPT400Wh Bosch BDU31 / M-4050
Frame type Diamond
Fork RockShox Judy Gold RL 26" 80mm
Wheel Size 26''
Tires Maxxis Ikon wire 56-559
Wheel set KTM Line - Shimano CUES TC500 Ryde Rival21 32H 559x21TC DT Alpine II 2.34 black (Centerlock 32H 100-5QR & 32H 142-12TA)
Rear derailleur Shimano Acera M3020-8 SGS
Shifters Shimano M315-8 display
Crank KTM E-TEAM2 ISIS 152mm Q8
Chain rings 38t
Cassette Shimano HG400-8 / 11-40T
Chain Shimano HG40-8s
Brake Shimano RT30 CL 160mm / 160mm
Brake lever Shimano MT201
Brake caliper Shimano MT200 2-Piston
E-Engine Bosch Performance SX Smart System - 55Nm / 25kmh
Battery pack Bosch PowerTube 400Wh Smart System compact
Display Bosch Intuvia 100 LCD Display Smart System
Remote Bosch LED remote Smart System
Charger Bosch Compact Charger 2A Smart System
Handlebar KTM Comp II low rizer 640mm
Grips KTM Comp Lock
Stem KTM Team II 0° ICR
Headset Acros ICR 1.5" angle limit
Saddle KTM Line Sport
Seatpost KTM Comp II 27.2/300
Saddle clamp KTM Line 31.8
