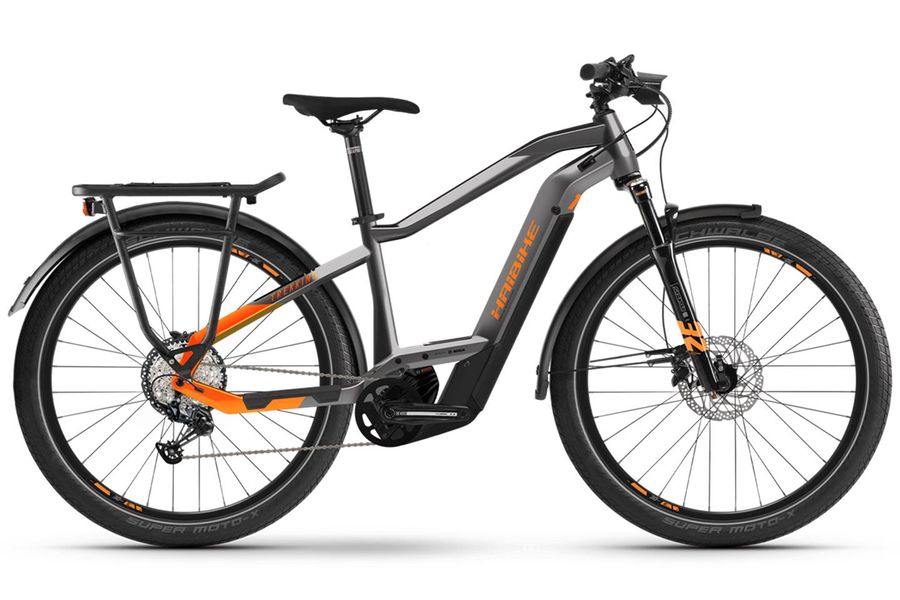

Haibike Trekking 10 (2022)

Item no. 51015
4,699.00 € *
Size

The top model of the Haibike E-Trekking series ranks technically and visually at the highest level. This all-rounder masters all areas of use, from everyday city life to world tours. The frame was designed down to the last detail for the powerful Bosch Performance CX drive.

Highlights

Lighting

Haibike Skybeamer 300, 100 lux

Frame

Aluminium 6061

Fork

SR Suntour Mobie E45 LOR Lockout (80mm)

Shifter

Shimano Deore M6100 (1x12)

Brakes

Shimano M6120, Aluminium (203/180)

Drive Unit

Bosch Perf. CX Gen4 (85 Nm) - PowerTube (625 Wh)

Haibike Trekking 10 - The top model of the Haibike E-Trekking model range.

The German manufacturer Haibike has specialised in e-bikes for many years. With the new Trekking series, the Schweinfurt-based company has consistently taken the topic of e-mobility in everyday life to its logical conclusion. After all, most cyclists are looking for an e-bike with as versatile a profile as possible for this area of use: suitable for daily rides in the city, the evening fitness round, an occasional weekend tour and ideally also stable enough for a bike trip with luggage. The basis of the Haibike Trekking models is therefore a robust frame made of 6061 aluminium with suspension fork (model depending on price class). Crucial for riding comfort are 27.5-inch wheels equipped with wide tyres - unmistakably a borrowing from the MTB sector. They provide extra cushioning on gravel and forest paths. But only legally compliant StVZO equipment makes an everyday e-bike perfect: the highlight of the Trekking models is the bright Skybeamer light system. In addition, there are sturdy mudguards and a load-bearing luggage rack. Thanks to the model designations, you can easily find your way around the Haibike range: The larger the number in the name of the e-bike, the higher the quality of the built-in equipment (gears, brakes, suspension fork, etc.).

Bosch Performance CX drive - when maximum power is required

The models 9 and 10 are the powerhouse of the Haibike Trekking series. More experienced e-bikers will enjoy the motorisation with the fourth generation Bosch Performance CX drive. The best motor in the market leader's portfolio pushes the bike forward with a maximum torque of 85 Nm, even with a luggage load. You can see from the heavy-duty luggage rack that the Trekking 10 really deserves its name. Nothing stands in the way of your next bike trip! The frame in typical Haibike design is particularly appealing with its elegant motor interface. The two-part construction promises optimal cooling for the extremely compact motor. Another highlight of the Haibike top models is the Modular Rail System. It offers the possibility to carry an additional 500 Wh battery on the down tube, which increases the capacity of the internal 625 Wh battery to 1125 Watt hours. This makes the Trekking 10 the range winner in its class.

Highlights

  • Haibike 6061 aluminium frame
  • Bosch Performance CX motor with 85 Nm
  • 625 Wh battery with range extender option to 1125 Wh
  • Robust 27.5-inch wheels
  • Shimano SLX gears and disc brakes
  • Fully equipped with day-bright Haibike Skybeamer lighting system

Additional Information

Bike category Trekking E-Bike
Brand Haibike
Colour titan/lava matt
Wheel Size 27,5''
Frame Aluminium, Steckachse M12 (1.00) x 148mm, Scheibenbremse Post Mount, Federweg: 100mm
Frame type Diamond
Fork SR Suntour Mobie E45 LOR Lockout, Luft, Federweg: 80mm, Stahlschaft 1 1/8" - 1 1/2" tapered, 15 x 100mm Steckachse
Customization - only in store Anpassen der optimalen Sitzposition entsprechend deiner Anatomie
Rims Rodi Tryp 30, geöst, Hohlkammerfelge, Aluminium
Cassette Shimano HG6100, 10-51 Zähne
Front hub Shimano MT400-B
Rear hub Shimano MT410
Tires Schwalbe Super Moto X, 62-584, Reflex
Shifters Shimano Deore M6100, Triggerschalter
Rear derailleur Shimano SLX M7100, 12-Gang
Crank Haibike Components, The Crank ++, Aluminium
Chain rings Aluminium, 42
Chain Shimano CN-M6100

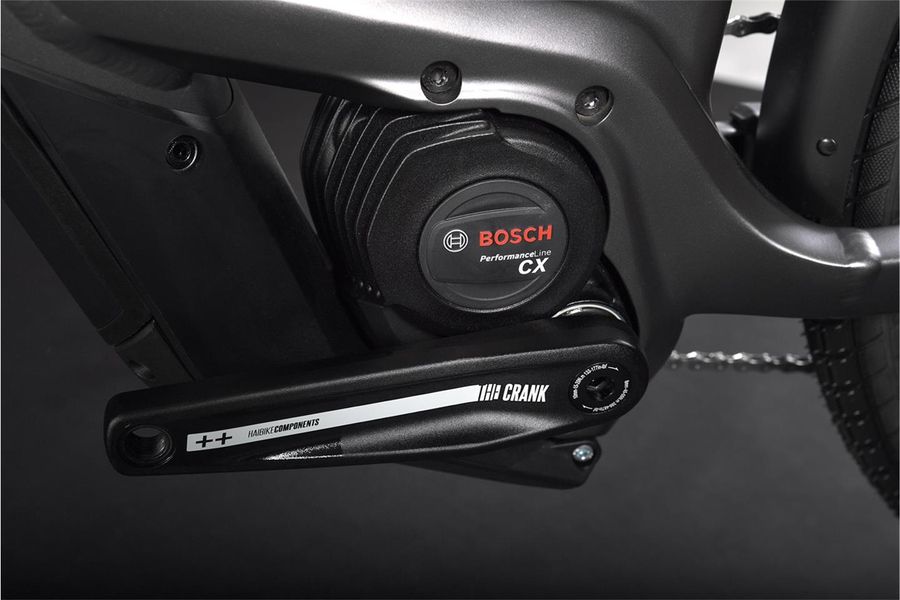

E-Engine Bosch Performance CX GEN4, 250W, 85Nm, 25km/h
Battery pack Bosch PowerTube 625

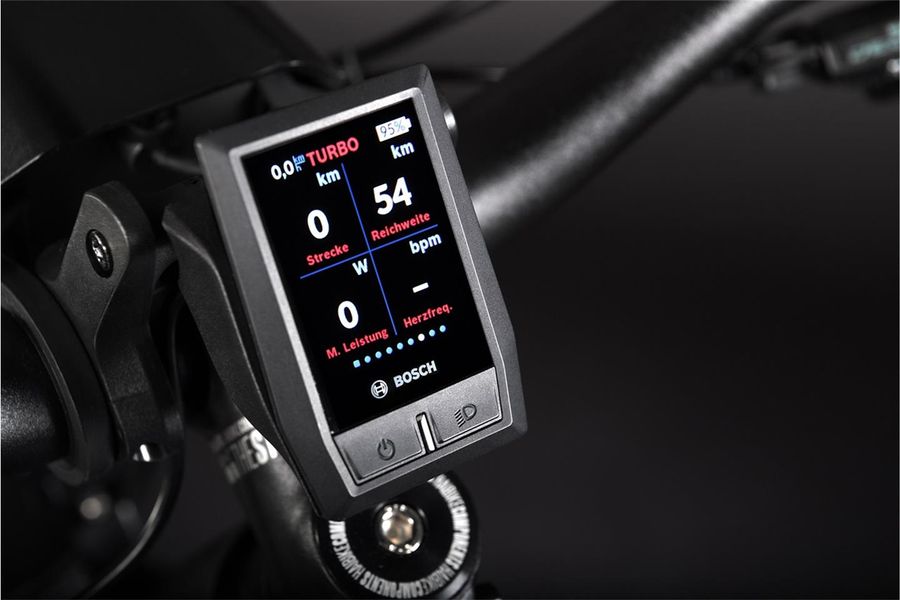

Display Bosch Kiox
Charger Bosch Standard Charger 4A
Brake Shimano M6120, Aluminium, 203mm / Shimano M6120, Aluminium, 180mm
Brake lever Shimano M6100, Aluminium
Handlebar Haibike Components TheBar ++ 740mm
Grips XLC Comfort bo3
Stem Haibike Components TheStem ++, A-Head, Bar bore: 31.8mm, 12?
Headset A-Head Alloy Tapered
Saddle Haibike Components TheSaddle
Seatpost Haibike Components TheSeatpost ++, Patent, 34.9mm, Aluminium

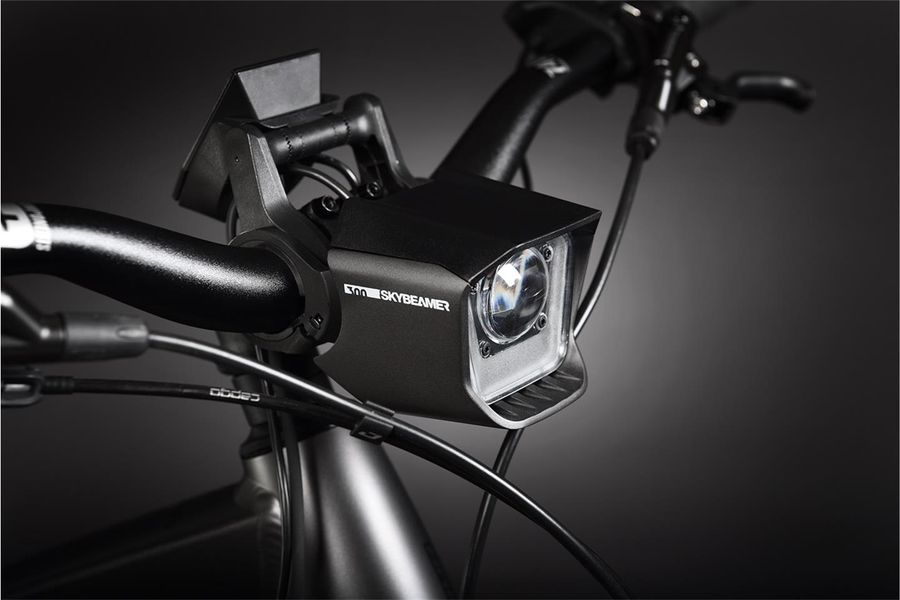

Headlight Haibike Skybeamer 300, 100 lux
Back light AXA Blueline
Mudguards SKS, Chromoplastik

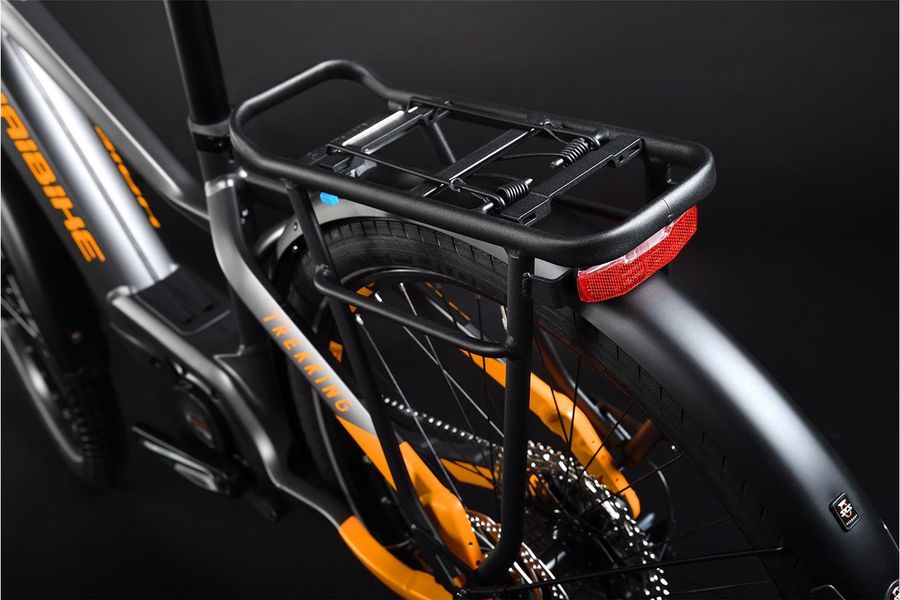

Rack StandWell KM040
Bike stand Ursus Mooi, einstellbar
Annotation Illustrations and specifications may vary. The manufacturer reserves the right to replace certain components with components of similar quality.
