Garmin Rally XC110

Garmin Rally XC110

Garmin Rally power meter pedals provide you with precise power data with a measurement accuracy of ±1%. With up to 90 hours of battery life, fast charging (12 hours of riding time in just 15 minutes of charging) and travel mode, you're always ready to go. Thanks to Pedal IQ™, you stay on the safe side even when temperatures fluctuate and receive reliable data. Via ANT+ and Bluetooth, you can seamlessly connect the pedals to Garmin Edge bike computers, smartwatches or the Garmin Connect app.

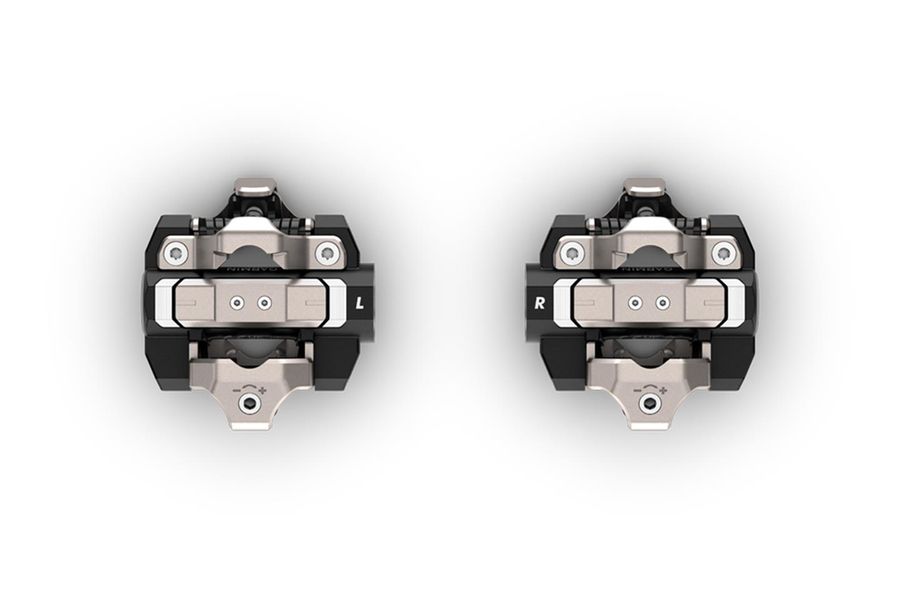

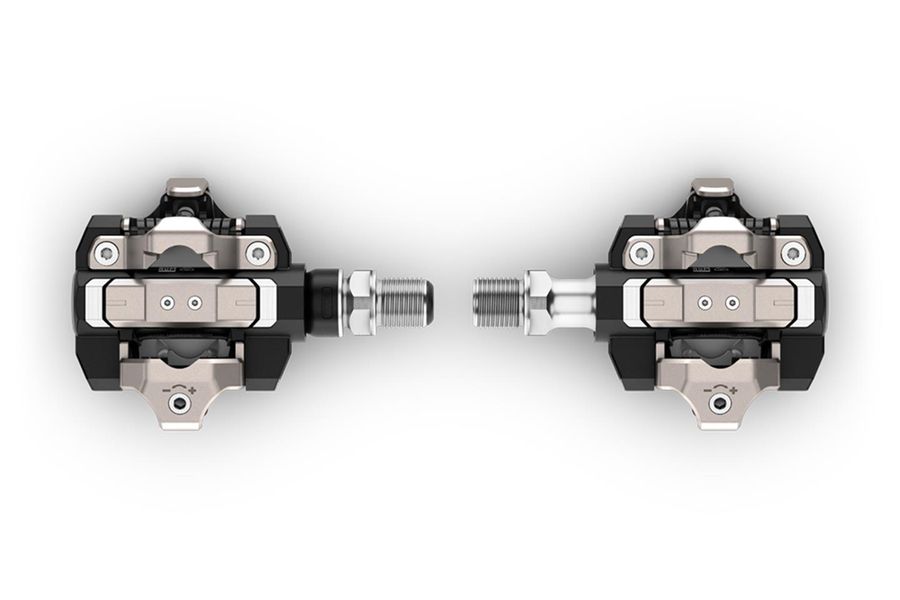

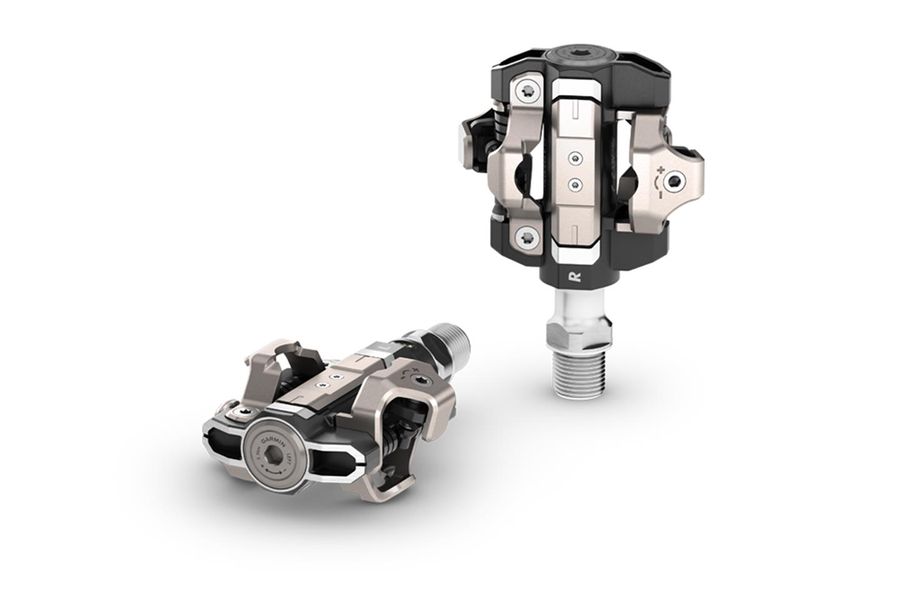

The Garmin Rally XC110 model is specially designed for SHIMANO SPD systems in the MTB and gravel sectors. It impresses with a robust full metal design and low height to avoid contact with stones and roots. With single-sided power measurement, it is the perfect choice for off-road riders who want to monitor their performance.

Highlights

• ±1% measurement accuracy
• Integrated battery with up to 90 hours of runtime
• Fast charging function: 12 hours of riding time in 15 minutes of charging time
• Travel mode to conserve battery power during transport
• Pedal IQ™ – intelligent calibration reminder
• Robust full metal design for maximum durability off-road
• Low height – reduces ground contact with stones and roots

Technical Data

• Measurement accuracy: ±1%
• Measurement location: Pedal axle
• Connectivity: ANT+® & Bluetooth®
• Protection class: IPX7 (waterproof)
• Maximum rider weight: 105 kg
• Battery life: up to 90 hours
• Fast charging function: 12 hours of riding time in just 15 minutes of charging time
• Travel mode to conserve battery power during transport
• Pedal IQ™ for intelligent calibration reminders
• Compatible with oval chainrings
• Compatible with Garmin Edge, Garmin smartwatches and Garmin Connect app
• Stand height: 11.5 mm
• Q-factor: 53 mm (55 mm with 2 mm spacer, included in delivery)
• Weight: 444 g
• Pedal body: robust full metal design
• Cleats: SHIMANO SPD compatible
• Measurement: one-sided

Interchangeable pedal bodies

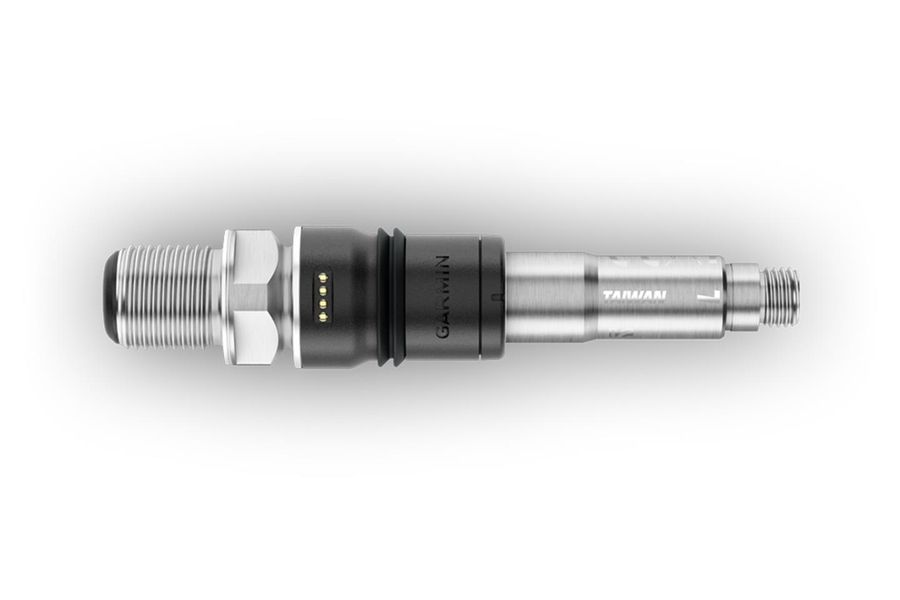

Garmin Rally power meter pedals are designed so that the pedal body can be changed quickly and easily. With just an Allen key, you can remove the axle and insert it into another compatible Rally pedal body.

This allows you to transform your power meter system from a road bike pedal (RK/RS series) to an MTB or gravel pedal (XC series) – or vice versa – in no time at all. This means you don't have to choose a discipline, but can use the same power meter system on all your bikes.

Scope of delivery

• Rally XC power meter pedal
• Cleats (SPD-compatible)
• Charging clamp
• USB-C charging/data cable (2 m)
• Quick start guide
