Highlights
-
Frame
HPA Aluminium Advanced Hydroform
-
Fork
Fox 38 Float FIT GRIP2 Factory
-
Tires
Schwalbe Magic Mary / Big Betty
-
Shifter
Shimano XT (1x12)
-
Brakes
Shimano XT BR-M8120 (203/180)
-
Rear Shock
Fox Float X2 Factory

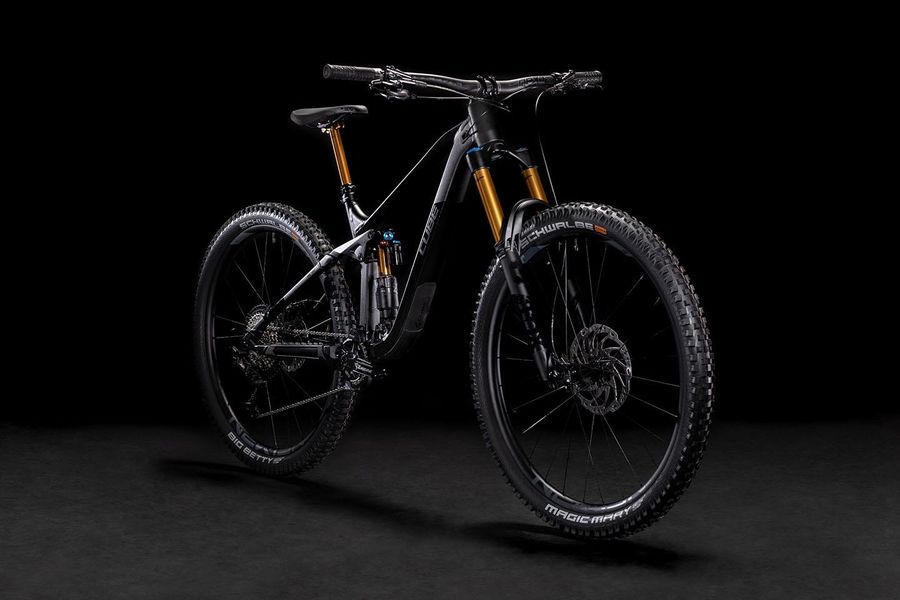

CUBE Stereo 170 SL
The Stereo 170 SL 29 grabs the big-travel suspension rule book, rips it up and throws it off the nearest available cliff. Newmen Evolution wheels shod with Schwalbe's new Magic Mary and Big Betty SuperTrail 2.4in tyres - and powered by Shimano's ultra-slick 1x12 gears - make light work of any trail, up or down. Powerful Shimano XT hydraulic disc brakes help you keep your speed in check. And a precise Fox 38 Factory fork, Float X2 Factory shock and Transfer Factory dropper post mean you can tame the rowdiest of trails.
Frame
Big wheels, big travel: it's a design conundrum that's defeated many. But not us. The Stereo 170 29's frame is based on our proven four bar suspension design and Agile Trail Geometry, for superb suspension performance and dependable handling. The short linkage and covered bearings contribute to its precision and low maintenance requirements. And hydroformed tubes and internally routed cables mean that it looks as good as it rides. It'll redefine your expectations of what a big travel, big wheeled bike can do.
Additional Information
| General | |
| Bike category | Full Suspension MTB |
|---|---|
| Colour | black anodized |
| Weight | 15,7 kg |
| Frame | |
| Frame | HPA Advanced Hydroform, ATG, ETC 4-Link, Air/Coil Shock Mount Flip-Chip, ISCG Mount, AXH |
| Fork | Fox 38 Float FIT GRIP2 Factory, Tapered, 15x110mm, 170mm, Kashima Coated |
| Rear Shocks | Fox Float X2 Factory, 230x62.5mm, High/Low Speed Rebound & Compression w/ 2-Position Lever, Kashima Coated |
| Headset | ACROS Integrated, Top 1 1/8", Bottom 1 1/2", Fiber Inserts for 0.6° Angle Adjustment |
| Frame type | Fully |
| Drive | |
| Shifters | Shimano XT SL-M8100-IR, Direct Attach |
| Rear derailleur | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| Crank | Race Face Turbine, 30T, 170mm |
| Cassette | Shimano XT CS-M8100, 10-51T |
| Chain | Shimano CN-M6100 |
| Brakes | |
| Brake | Shimano XT BR-M8120, Hydr. Disc Brake (203/180) |
| Wheels | |
| Wheel set | Newmen Evolution SL A.30, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready |
| Front tire | Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4 |
| Rear tire | Schwalbe Big Betty, Super Trail, Addix Soft, Kevlar, 2.4 |
| Wheel Size | 29'' |
| Cockpit | |
| Handlebar | Race Face Next R 35 Carbon, 800mm |
| Stem | Race Face Turbine R 35 |
| Seat | |
| Saddle | SDG Radar |
| Seatpost | Fox Transfer Factory 31.6mm, Kashima Coated, 175mm (150mm for size M) |
| Saddle clamp | CUBE Screwlock, 34.9mm |
| Other | |
| Annotation | The illustration may vary. The manufacturer reserves the right to replace certain components with components of equivalent quality. |
| Manufacturer Information | |
| Manufacturer Information | Pending System GmbH & Co. KG |
