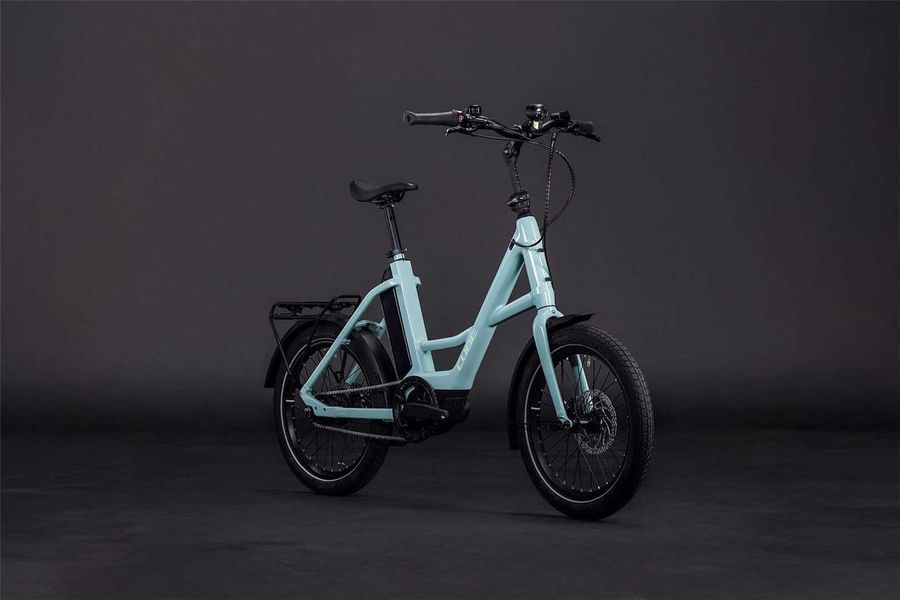

CUBE Compact Hybrid Comfort 545 (2026)
The CUBE Compact Hybrid Comfort 545 combines agility with maximum comfort. Shimano Nexus 5-speed hub and MT200 brakes make it low-maintenance and reliable. With full equipment and a low-step frame, it’s a practical, comfortable e-bike for everyday urban life.
Highlights
Lighting
ACID Front Light PRO-E 60 X-Connect
Frame
Aluminium
Fork
Aluminium
Shifter
Shimano Nexus (1x5)
Brakes
Shimano BR-MT200 (180/160)
Drive Unit
Bosch Perf. Gen3 (75Nm) / PowerPack (545Wh)

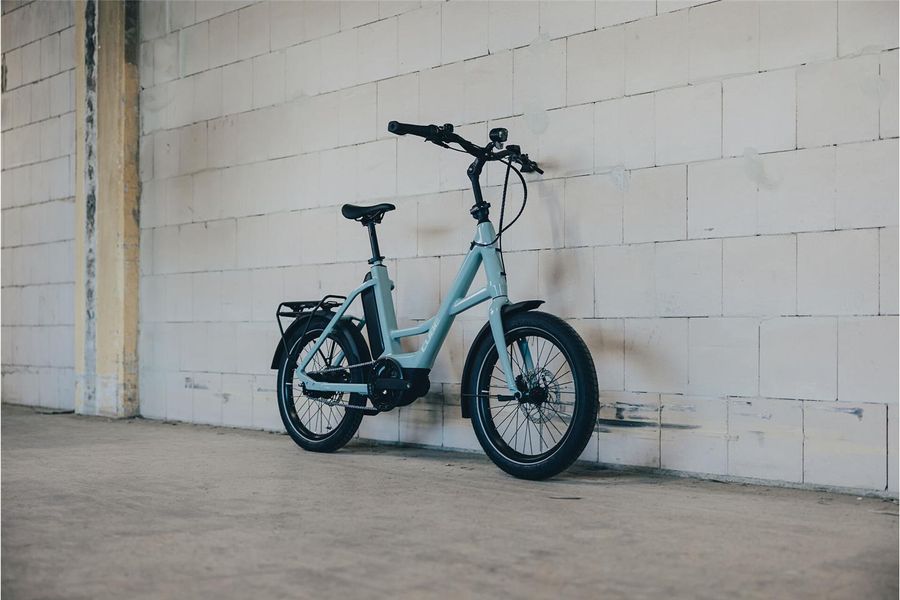

CUBE Compact Hybrid Comfort 545
Wherever two wheels can make your life easier, the Compact Hybrid Comfort will slot right in. The clever, compact design – the clue is in the name – and Bosch Performance drive system with Smart System, 545Wh battery and easy-to-use Shimano 5-speed hub gears make traffic-dodging a breeze. There's a rack for your essentials, a kickstand for easy parking, mudguards to help keep you dry and a lighting system so you can see and be seen. Powerful Shimano hydraulic disc brakes ensure you can stop safely even when it's wet, and the easily adjustable handlebar makes it easy to get comfortable. You'll wonder how you managed without it.
Frame Details
At CUBE they know that the simplest solutions are often the best. The Compact Hybrid's cross-braced down tube is elegant, stiff and strong. It also makes this an easy bike to step in and out of, as well as providing a convenient carrying handle. There's a long head tube for accurate, safe steering. The smooth and powerful Bosch Performance drive unit lives in a custom housing at the bottom of the frame, with the 545Wh battery tucked out of the way of both luggage and rider. Bosch's Smart System also gives you complete control, accessed via the eBike Flow app. Quick and easy saddle and handlebar adjustments allow one bike to fit the widest possible range of riders. And the front luggage carrier increases carrying capacity and adds even more versatility. For commuting, for popping to the shops, for camping, for exploring. For you.
Additional Information
| General | |
| Bike category | Compact Bike |
|---|---|
| Model year | 2026 |
| Colour | skylightblue´n´blue |
| Weight | 23,8 kg |
| Max. total weight | 142 kg |
| Fahrraddetails | |
| Price | Price in branch store might be lower. (info@rabe-bike.de / +4989 125 01 01 01) |
| Frame | |
| Frame | Aluminium Superlite, Comfort Ride Geometry, Semi-Integrated Carrier, Double Butted, Front-Carrier Ready, Slider Dropout |
| Fork | Aluminium Rigid Fork, 20" |
| Headset | Cube H835D3, Semi-Integrated, Sealed bearing |
| Frame type | Compact Bike |
| Drive | |
| Shifters | Shimano Nexus SL-C7000-5, Revoshift |
| Crank | ACID Trekking Hybrid, 44T |
| Cassette | Shimano Nexus CS-C7000, 24T |
| Chain | KMC Z610 |
| Ebike | |
| Battery pack | Bosch PowerPack 545 |
| E-Engine | Bosch Drive Unit Performance Line 75Nm (BDU34) |
| Remote | Bosch Purion 200 with Integrated Display |
| Charger | Bosch 2A |
| Brakes | |
| Brake | Shimano BR-MT200, Hydr. Disc Brake (180/160) |
| Wheels | |
| Rims | ACID EX30, 32H, Disc, Tubeless Ready |
| Front hub | Shimano HB-QC300, QR, Centerlock |
| Rear hub | Shimano Nexus SG-C7000-5D, 5-Speed, Centerlock, Nut |
| Tires | Schwalbe Super Moto-X, Double Defense, 62-406 |
| Wheel Size | 20'' |
| Cockpit | |
| Handlebar | CUBE Comfort Trail Bar, 680mm |
| Stem | BySchulz Speedlifter Twist Pro SDS T15 |
| Grips | ACID Travel Comfort Gripshift |
| Seat | |
| Saddle | ACID Sequence Pro 160 |
| Seatpost | Newmen Evolution, 27.2mm |
| Light | |
| Headlight | ACID Front Light PRO-E 60 X-Connect, 12V, DC |
| Back light | ACID Mudguard Rear Light PRO-E, 12V, DC |
| Acessory | |
| Mudguards | ACID 75, BB-Mount |
| Rack | ACID 20" Semi-Integrated Carrier, ACID RILink Adapter Compatible |
| Bell | Easy Bell |
| Bike stand | CUBE CenterStand |
| Other | |
| Customization - only in store | |
| Configuration - available in our stores | |
| Annotation | The illustration may differ. The manufacturer reserves the right to replace certain components with components of equivalent quality. |
| Manufacturer Information | |
| Manufacturer Information | Pending System GmbH & Co. KG |
| Product Safety Documents | |
