CUBE Compact Hybrid 540 (2027)

Item no. 88446
2,499.00 € *
Size

A bike that makes everyday life easier whilst offering plenty of riding enjoyment – that was precisely the idea behind the Compact Hybrid. That’s why we’ve fitted it with a Bosch drive unit complete with Smart System, a compact frame, a comprehensive range of features and a wide-range gear system.

Highlights

  • Lighting

    ACID PRO-E 80 X-Connect

  • Frame

    Aluminium

  • Fork

    Aluminium

  • Shifter

    Shimano CUES (1x9)

  • Brakes

    Shimano MT200 (180/160)

  • Drive Unit

    Bosch Perf. Gen3 (75Nm) / PowerPack (540Wh)

CUBE Compact Hybrid 540

Getting from A to B can be fun and accessible for everyone – and here's the proof. The Compact Hybrid's rugged, easy step-through design fits riders of all sizes and is easy to store and transport. Bosch's powerful Performance drive unit – with Smart System and 540Wh battery – takes the sweat out of everyday riding, while Shimano's wide-ranging and reliable 9-speed Cues gears make light work of any route. Powerful hydraulic disc brakes ensure you can stop safely in all weathers. And the lighting system, mudguards, integrated rear luggage carrier, kickstand and HIC front carrier compatibility ensure that the Compact Hybrid will slot easily into your life. For work, for play, for any reason.

Rahmen Details

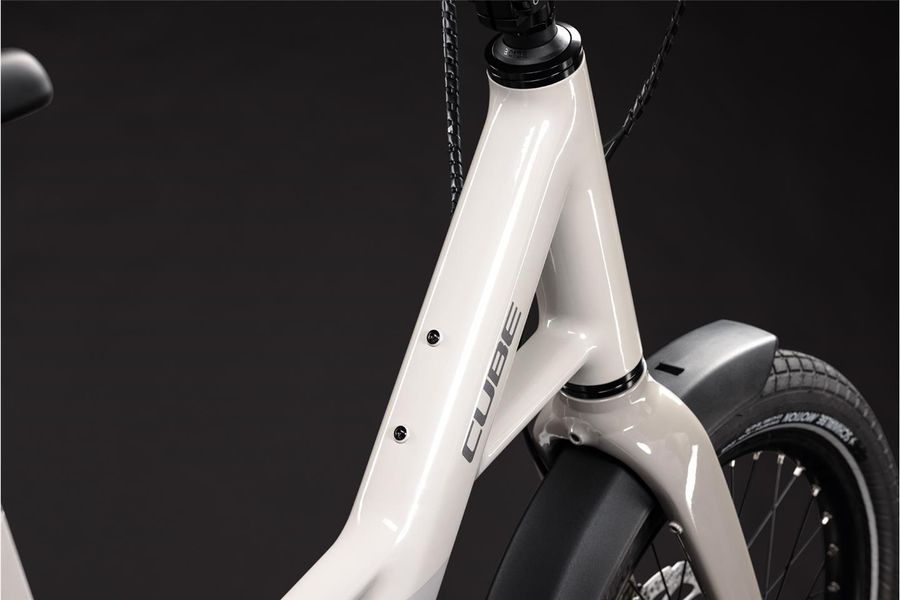

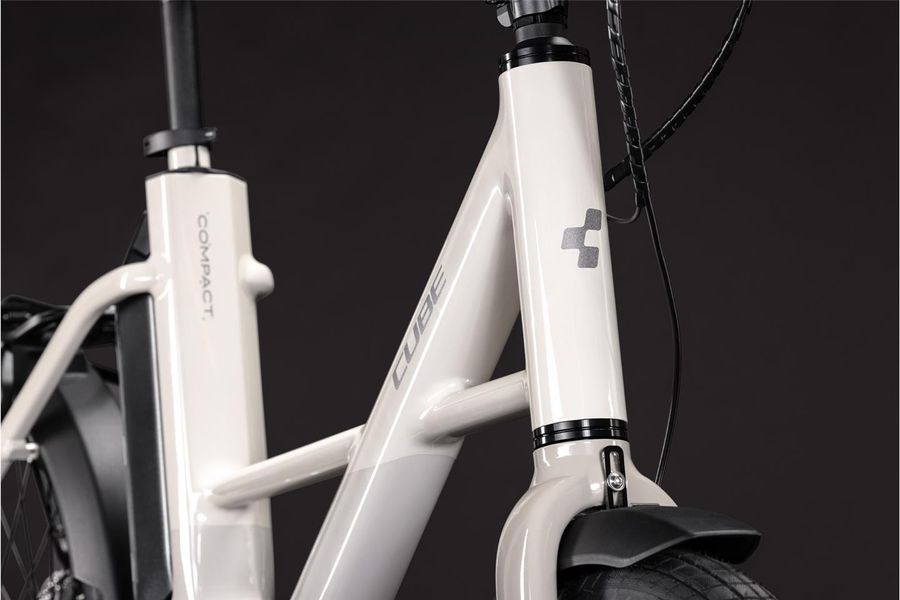

Sometimes the simplest solutions are the best. The Compact Hybrid's cross-braced down tube is elegant, stiff and strong, but it also makes this an easy bike to step in and out of, as well as providing a convenient carrying handle. There's a long 1.5in head tube for accurate, safe steering and an integrated rear carrier for all your essentials. Up front, the HIC interface allows the addition of a compatible ACID front carrier and accessories. The powerful Bosch Performance drive unit is powered by a 540Wh battery, which is tucked out of the way of both luggage and rider. Bosch's Smart System also gives you complete control, accessed via the eBike Flow app. Quick and easy saddle and handlebar adjustments allow one bike to fit the widest possible range of riders. It's a bike for commuting, for popping to the shops, for camping, for exploring. For you.

Additional Information

General
Bike category Compact Bike
Model year 2027
Colour cotton´n´reflex
Weight 23,2 kg
Max. total weight 150 kg
Frame
Frame Aluminium Superlite, Gravity Casting Technology, Comfort Ride Geometry, Seatstay-Integrated Carrier
Fork Aluminium Rigid Fork, 20"
Headset Acros Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC
Frame type Compact Bike
Drive
Shifters Shimano CUES SL-U4010- Rapidfire-Plus
Rear derailleur Shimano CUES RD-U4010, 9-Speed
Crank ACID Trekking Hybrid, 44T
Cassette Shimano CS-LG300, 11-36T
Chain KMC eGlide
Ebike
Battery pack Bosch PowerPack 540
E-Engine Bosch Drive Unit Performance Line 75Nm (BDU34)
Remote Bosch Purion 200 with Integrated Display
Charger Bosch 2A
Brakes
Brake Shimano BR-MT200, Hydr. Disc Brake (180/160)
Wheels
Rims ACID EX30, 32H, Disc, Tubeless Ready
Front hub Shimano HB-QC300, QR, Centerlock
Rear hub Shimano FH-QC300-HM, QR, Centerlock
Tires Schwalbe Motion Super Moto-X, Double Defense, 62-406
Wheel Size 20''
Cockpit
Handlebar CUBE Comfort Trail Bar, 680mm
Stem BySchulz Speedlifter Twist Pro 2 SDS T15
Grips ACID Travel Comfort
Seat
Saddle ACID Sequence 160 Pro Bubble Foam
Seatpost Cube Performance Post, 27.2mm
Light
Headlight ACID Front Light PRO-E 80 X-Connect, 12V, DC
Back light ACID Mudguard Rear Light PRO-E, 12V, DC
Acessory
Mudguards ACID 62 IC-Mount
Rack ACID 20" Seatstay-Integrated Carrier, RILink, SM-Link
Bell Easy Bell
Bike stand ACID FM Pure XS
Other
Customization - only in store
Configuration - available in our stores
Annotation The illustration may differ. The manufacturer reserves the right to replace certain components with components of equivalent quality.
Manufacturer Information
Manufacturer Information
Product Safety Documents
